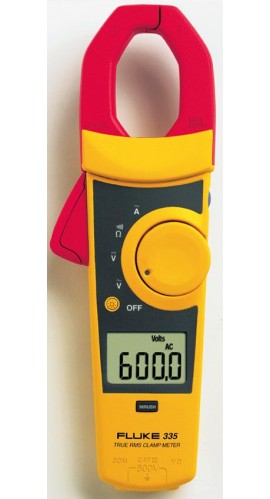

Fluke 335 TRMS 600 Amp AC Current Clamp Meter

Model: 335A

True RMS, 600A AC, 600V AC/DC, Continuity.

This product has been discontinued. Click here for the replacement model(s).



Fluke 335A Specifications

Specifications
Voltage DC
Range 0 - 600.0 V
Accuracy 1% ± 5 counts
Voltage AC
Range 0 - 600.0 V
Accuracy 1% ± 5 counts (50/60 Hz)
AC Response True-rms
Current AC
Range 0 - 600.0 A
Accuracy 2% ± 5 counts (50/60 Hz)
Crest Factor(50/60 Hz) 2.4 @ 500A, 2.0 @ 600A, add 2% for CF>2
AC Response True-rms
Resistance
Range 0 - 600.0 Ω, 6001 - 6000 Ω
Accuracy 1.5% ± 5 counts
Inrush Current
Integration Time 100 ms
Continuity

<= 30 Ω

Environmental Specifications
Operating Temperature

-10 °C to +50 °C, -14 °F to 122 °F
Storage Temperature

-40C to +60C, -22 °F to 140 °F
Operating Altitude

2,500 meters max, 6,500 ft max
Temperature De-rating

Add 0.1 x specified accuracy for each C above 28C or below 18C (above 82.4°F or below 64.4°F)

Safety Specifications
Safety Rating

IEC 1010-2-032, 600V CAT III

Mechanical & General Specifications
Size
240mm x 80mm x 40mm (9.375" x 3.125" x 1.625")
Weight

310 g (11oz)
Warranty

Three years
Battery Life

Alkaline approximately 150 hours continuous

Automatic low battery indicator
Backlight

Yes
Display Hold

Yes
Click here for complete specifications on the Fluke 335A

What's included with the Fluke 335A


  • Coated instruction card
  • Safety information sheet
  • Soft carrying case
  • Fluke TL75 test leads
  • Two AA Alkaline batteries
