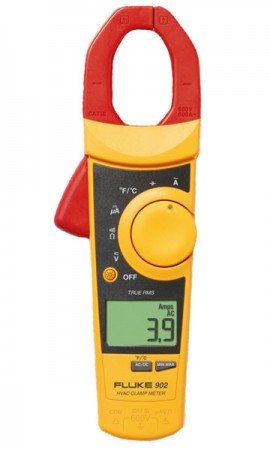

Fluke 902 True-rms HVAC Clamp Meter

Model: 902

True RMS, 600A AC, 600V AC/DC, Ohms, Continuity.

Sorry! This product has been discontinued.


The Fluke 902 True-rms HVAC Clamp Meter has been discontinued, it has been replaced by the Fluke 902 FC True-RMS Wireless HVAC Clamp Meter, CAT III 600V / CAT IV 300V






  • Designed for HVAC applications with capacitance, DC Current (µA), and temperature measurements
  • Small body and jaws fit perfectly in your hand and into tight places
  • Handy 'Display Hold' button keeps measurements on the display
  • Meter controls are positioned so current measurements can be done with one hand (index finger on clamp opening lever and thumb on rotary switch)
  • Large, backlit display (on most models) is easy-to-see
  • Auto shut-off maximizes battery life so the meter works when you need it
  • Three year warranty

Heating, ventilation, air conditioning (HVAC) technicians require a service tool that can consistently keep up with their demands. The Fluke 902 expands the exisiting line of quality Fluke clamp meters by delivering the features necessary to diagnose and repair HVAC systems. Combined with True RMS technology and a CAT III 600 V rating, the Fluke 902 helps technicians do their jobs safely and accurately.
The new Fluke 902 True RMS HVAC Clamp Meter provides the accuracy, reliability and ruggedness that defines Fluke test tools. It is designed for HVAC technicians for the systems they service and install daily. With True RMS technology and a CAT III 600V rating, HVAC technicians can troubleshoot and maintain HVAC equipment safely and with confidence in the results.
Use the Fluke 902 to get more done:
  • Capture flue gas temperatures
  • Conduct flame rod testing
  • Measure start and run motor capacitors
  • Measure supply side current and voltage as well as load side current and voltage
  • Measure current and voltage phase balance on 3 phase systems
  • Troubleshoot compressor electrical motor faults

Specifications
Voltage DC
Range 0 - 600.0 V
Accuracy 1% ± 5 counts
Voltage AC (True RMS)
Range 0 - 600.0 V
Accuracy 1% ± 5 counts (50/60 Hz)
Current AC (True RMS)
Range 0 - 600.0 A
Accuracy 2.0% ± 5 counts (50/60 Hz)
Current DC
Range 0 - 200.0 µA
Accuracy 1.0% ± 5 counts
Resistance
Range 0 - 9999 Ω
Accuracy 1.5% ± 5 counts
Continuity

<= 30 Ω
Temperature*
(Type K Thermocouple)
Range -10 degree C to 400 degree C (-14 degree F to 752 degree F)
Accuracy +/- 1.0% + 0.8 degree C (+/- 1.0% + 1.5 degree F) typical
Range -40 degree C to -10 degree C (-40 degree F to -14 degree F)
Accuracy +/- 5.0% + 1.5 degree C (+/- 5.0% + 3.3 degree F) typical
Capacitance
Range 1-1000 µF
Accuracy 1.9% ± 2 counts

* Error does not include Type K Thermocouple errors
Mechanical & General Specifications
Weight

1.5 lbs (.7 kg)
Dimensions

10.75" x 4.25" x 2.44" (27.3 cm x 10.8 cm x 6.2 cm)
Battery type

(2) AA Alkaline Batteries
Click here for complete specifications on the Fluke 902

  • AA Alkaline batteries (2)
  • Users manual w/safety information
  • Soft carrying case
  • Fluke TL75 Test Leads (1 pair)
  • Fluke 80BK Integrated DMM Temperature Probe (1)

Accessories

Click on a category to view a selection of compatible accessories with the Fluke 902 True-rms HVAC Clamp Meter.

Fluke C33 Soft Vinyl Carrying Case C33 1439
Included with the 330 Series.
$34.99 USD

Learn More

Fluke C550 Premium Tool Bag C550 1447
Tool Bag with steel reinforced frame.
$99.99 USD

Learn More



Fluke TL224 SureGrip Silicone Insulated Test Leads TL224 1995
Designed to improve steadiness with rubber overmolded surfaces and finger-hugging curves.
$29.99 USD

Learn More

Fluke TL71 Premum DMM Test Lead Set TL71 2005
Comfort grip probes with silicone insulated, right-angle test leads.
$29.99 USD

Learn More

Fluke AC220 SureGrip Alligator Clips AC220 1400
Designed to improve steadiness with rubber overmolded surfaces and finger-hugging curves.
$44.99 USD

Learn More

Fluke TL75 Hard Point Test Lead Set TL75 2007
Comfort grip probes with PVC insulated, test leads with right-angle shrouded banana plugs.
$24.99 USD

Learn More

Fluke AC285 SureGrip Large Alligator Clip AC285 1403
Large alligator clip for test leads used with Fluke meters.
$24.99 USD

Learn More

Fluke TP1 Slim Reach Test Probe Set TP1 2040
For probing closely spaced or recessed terminals designed to hold securely in blade type electrical wall sockets.
$19.99 USD

Learn More

Fluke AC87 Heavy Duty Bus Bar Clip Set AC87 1411
Insulated, Shrouded Banana Jacks. Pair of Black and Red.
$44.99 USD

Learn More

Fluke AC89 Heavy Duty Insulation Piercing Test Clip AC89 1412
Insulated, Shrouded Banana Jack. One Red.
$44.99 USD

Learn More

Fluke TLK291 fused test probe set TLK291 4630
For use with Fluke multimeters and test leads.
$79.99 USD

Learn More

Fluke TL223 Suregrip Electrical Test Lead Set TL223 1994
includes Fluke AC220, TP1, TL224.
$79.99 USD

Learn More

Fluke 80PK-8 Pipe Clamp Temperature Probe 80PK-8 1381
Pipe Clamp Temperature Probe.
$161.99 USD

was$179.99


Learn More

Fluke L206 Deluxe LED Hat Light L206 1833
Three super bright white LEDs never burn out attach to hard hat, baseball cap, or panel door.
$49.99 USD

Learn More
