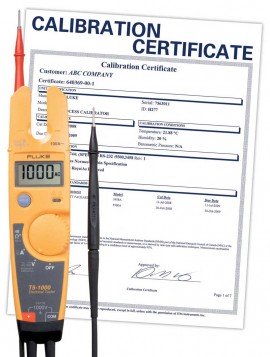

Fluke T5-1000-NIST 1000V Electrical Tester with NIST Traceable Certificate

Model: T5-1000-NIST

Lets you check voltage, current and continuity. Select ohms, volts, or current and the tester does the rest.

$211.49 USD

was $234.99

1 in Stock






Fluke T5-1000-NIST Offers

Features

  • Easy and accurate OpenJaw™ current measurement
  • Continuity beeper
  • Compact design with neat probe storage
  • Rugged enough to withstand a 10-foot (3m) drop
  • Detachable SlimReach™ probe tips are customized for national electrical standards
  • Test leads accept Fluke accessory test clips
  • Available in 600V and 1000V models
  • Can stay connected much longer than solenoid type tester
  • Auto off mode to conserve battery life
  • Optional holster attaches to a belt and neatly stows test leads

Specifications

  • Battery life: 400 hours
  • Dimensions (HxWxD):
  • 203 mm x 51 mm x 30.5 mm
  • Weight: 0.38 kg
Specifications
Continuity beeper
Threshold: On at <25 Ω, off at >400 Ω
Volts indicator LED
Threshold: Guaranteed on by 30V ac

Environmental Specifications
Operating Temperature

-10 °C to 50 °C
Storage Temperature

-30 °C to 60 °C
Humidity (Without Condensation)

0% to 95% (5 °C to 30 °C)

0% to 75% (30 °C to 40 °C)

0% to 45% (40 °C to 50 °C)
Dust/water resistance

Yes
Operating Altitude

2000 meters max
Temperature Coefficient

0.1 x (specified accuracy)/degree C (<18 °C or >28 °C)

Safety Specifications
Overvoltage category
1000V ac/dc, CAT III
Agency Approvals

UL, CSA, and VDE
Maximum voltage

between any terminal and earth ground

Mechanical & General Specifications
Size

30.5 x 51 x 203 mm
Weight

300g
Warranty

2 years
Battery Life

200 hour zinc chloride, 400 hour alkaline
Battery type

Two AA zinc chloride
Low battery indicator

Yes
Current sensor opening

12.9 mm
Calibration cycle

1 year
Test leads
Type Heavy duty, flexible leads rated for 1000V use.

Field replaceable leads terminate in male shrouded banana plugs
Probes One red, one black. of two tip

Detachable Slim-ReachT probe tips in one
Styles TP4 4 mm round

Click here for complete specifications on the Fluke T5-1000-NIST
