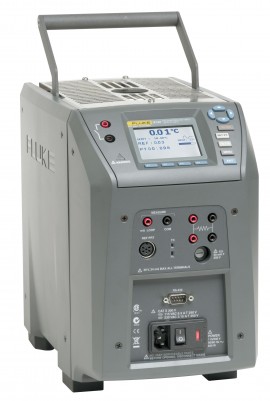

Fluke 9142-A-P-156 Low Temp Process Field Metrology Well

Model: 9142-A-P-156

This unit has a built-in two channel thermometer readout that measures PRTs, RTDs, thermocouples, and 4-20mA transmitters which includes the 24V loop supply to power the transmitter.

Add In House NIST Traceable Calibration to your 9142-A-P-156

Clear selected options


$8,000.00 USD

2 to 3 Weeks






Fluke 9142-A-P-156 Low Temp Process Field Metrology Well Offers

Features

  • Each process version provides built-in two-channel thermometer readout that measures PRTs, RTDs, thermocouples, and 4-20 mA transmitters which includes the 24V loop supply to power the transmitter
  • Accuracy ranges from ±0.01°C to ±0.07°C depending on the measured temperature
  • Accepts an ITS-90 reference PRT that contains individual calibration constants that reside in a memory chip located inside the sensor housing, so sensors may be used interchangeably
  • Second channel is user-selectable for 2-, 3-, or 4-wire RTDs, thermo-couples, or 4-20 mA transmitters
  • With 24V loop power, you are able to power and measure the trans-mitter current while sourcing and measuring temperature thus allowing for the measurement of as-found and as-left data in one self-contained calibration tool
  • Onboard non-volatile memory for documentation of up to 20 tests
  • Each test can be given a unique alphanumeric ID and will record block temperature, reference temperature, UUT values, error, date, and time which can be viewed via the front panel or exported using Interface-it software (included)
  • Stability indicator visually and audibly tells you the Field Metrology Well is stable to the selectable criteria
  • Preprogrammed calibration routines are stored in memory for easy recall, and all inputs are easily accessible via the front panel of the instrument

Applications

Ideal for the following applications: Laboratory, Education, R&D, Calibration Labs, Field Calibration, Industrial Process

Fluke 9142-A-P-156 Specifications

Ref. Characterizations 4-wire, ITS-90, CVD, IEC-751, Resistance
Ref. Therm. Accuracy ±0.010°C @ -25°C, ±0.015°C @ 0°C, ±0.020°C @ 50°C, ±0.025°C @ 150°C, ±0.030°C @ 200°C, ±0.40°C @ 350°C, ±0.050°C @ 420°C, ±0.70°C @ 660°C
Ref. Resistance Range 0 to 400Ω
Ref. Resistance Accuracy 0-25Ω: ±0.002Ω, 25-400Ω: ±60 ppm
RTD Characterizations 4-wire RTD (2-, 3-wire RTD w/ jumpers only), PT-100 (385), (JIS), (3926), Ni-12, Resistance
RTD Therm. Accuracy Ni-120: ±0.1°C @ 0°C; Pt-100 (385): ±0.02°C @ 0°C; Pt-100 (3926): ±0.02°C @ 0°C;Pt-100 (JIS): ±0.02°C @ 0°C
RTD Resistance Range 0 to 400Ω
RTD Resistance Accuracy 0-25Ω: ±0.002Ω, 25-400Ω: ±80 ppm
T/C mV Range -10 to 75 mV
Voltage Accuracy -10 to 50 mV: ±0.01 mV; 50 to 75 mV: ±250 ppm
Cold Junction Comp. Accuracy ±0.5°C (ambient of 13 to 33°C)
T/C Thermal Accuracy
J ±0.07°C @ 660°C; K: ±0.08°C @ 660°C
T ±0.08°C @ 400°C; E: ±0.7°C @ 660°C
R ±1.4°C @ 660°C; S: ±1.0°C @ 660°C
M ±1.4°C @ 660°C; L: ±0.7°C @ 660°C
U ±0.75°C @ 660°C; N: ±0.9°C @ 660°C
C ±1.1°C @ 660°C;
