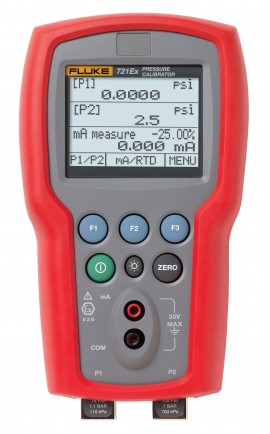

Fluke 721EX-3650 Dual Sensor Pressure Calibrator, 36 PSIG/5000 PSIG

Model: 721EX-3650

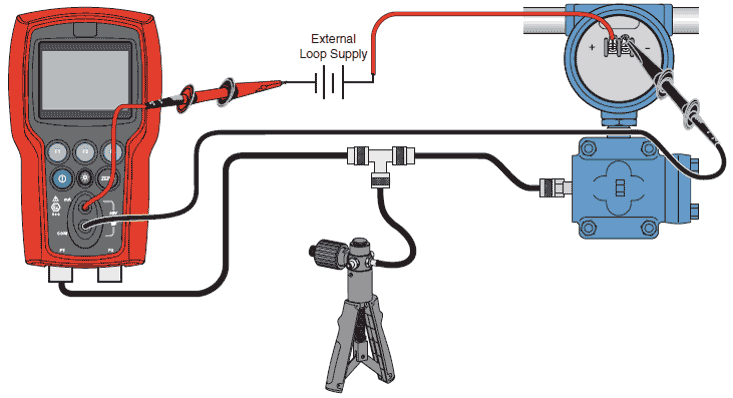

Ideal for gas flow calibration (custody transfer) applications allowing you to take simultaneous static and differential pressure measurements with a single tool. Intrinsically Safe - IECEx and Atex Ex ia IIB T3 Gb (Zone 1). Features a 36 psig/5000 psig pressure range.

$2,495.00 USD

2 to 3 Weeks






Fluke 721EX Series Offers

Features

  • Can be configured by selecting either a 16 psi (1.1 bar) or 36 psi (2.48 bar) low pressure sensor then add any of 7 high pressure ranges including 100, 300, 500, 1000, 1500, 3000 or 5000 psi (6.9, 20, 24.5, 69, 103.4, 200, 345 bar)
  • Two isolated, stainless steel, pressure sensors with 0.025% accuracy
  • Switch test on both pressure inputs
  • Pressure displayed in the user's choice of 19 engineering units: psi, bar, mbar, kPa, kgcm2, cmH2O @ 4°C, cmH2O @ 20°C, mH2O @ 4°C, mH2O @ 20°C, inH2O @ 4°C, inH2O @ 20°C, inH2O @ 60°F, mmHg @ 0°C, inHg @ 0°C, ftH2O @ 4°C, ftH2O @ 20°C, ftH2O @ 60°F
  • Precision temperature measurement with optional RTD probe
  • Measures 4 to 20 mA signals
  • Large backlit graphic display shows up to three inputs simultaneously
  • Store five instrument setups for recall and use

Fluke 721EX Series Specifications

Pressure Range Available from 16 to 36 psi (1.1 to 2.48 bar) with 7 high pressure ranges including 100, 300, 500, 1000, 1500, 3000 or 5000 psi (6.9, 20, 24.5, 69, 103.4, 200, 345 bar)
Resolution 0.001 psi (0.0001 bar)
Accuracy ±0.025% f.s.
Current Range 0 to 24mA
Resolution 0.001mA
Accuracy ±0.015% of rdg ±0.02 ohms; ±0.1°C (±0.2°F)
±0.25°C (±0.45°F) combined uncertainty when using 720 RTD probe accessory
Loop Supply Range 24V
Temperature Range -40 to 150°C (-40 to 302°F)
Connectors/Ports Two, 1/8" NPT, 750P Series Pressure Module
RTD Probe
Power Supply (4) standard AA batteries
Dimensions 7.9 x 4.3 x 2.3 (20 x 11 x 5.8 cm)
Weight 035 kg (1 lb 3 oz)
Click here for complete specifications on the Fluke 721EX-3650

What's included with the Fluke 721EX Series

  • 721EX-1601 Dual Sensor Pressure Calibrator
  • Test leads
  • 4 AA batteries
  • Manual
  • Calibration certificate
  • Soft case

Accessories

Click on a category to view a selection of compatible accessories with the Fluke 721EX-3650 Dual Sensor Pressure Calibrator, 36 PSIG/5000 PSIG.

Fluke 720RTD Probe 720RTD 26146
RTD probe for use with Fluke 721 and 719Pro.
$269.99 USD

was$299.99


Learn More

Fluke 720URTDA Universal RTD adapter 720URTDA 84238
For use with the Fluke 719 and 721.
$179.99 USD

was$199.99


Learn More
