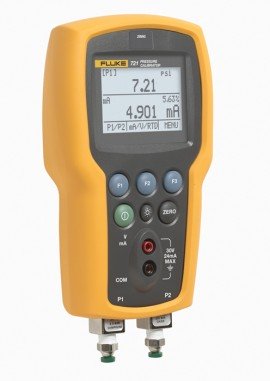

Fluke 721-1650 Dual Sensor Pressure Calibrator

Model: 721-1650

Precision Pressure Calibrator with dual isolated sensors for gas custody transfer applications. Ranges: 16 psi (low) 5,000 psi (high).

Add In House NIST Traceable Calibration to your 721-1650

Clear selected options


$2,349.99 USD

6 to 7 Weeks






Pressure Calibration and Temperature Measurement for Custody Transfer Applications

The ideal tool for gas custody transfer applications is the Fluke 721 Precision Pressure Calibrator. With dual isolated pressure sensors, it allows you to take simultaneous static and differential pressure measurements with a single tool.

The 721 can be configured by selecting either a 16 PSI (1.1 bar) or 36 psi (2.48 bar) low pressure sensor then add any of 7 high pressure ranges including 100, 300, 500, 1000, 1500, 3000 or 5000 psi (6.9, 20, 24.5, 69, 103.4, 200, 345 bar).

Specifications 1-Year
Low pressure sensor Range Resolution Accuracy
-14 psi to +16 psi,
-0.97 bar to 1.1 bar
0.001 psi,
0.0001 bar
0.025 % of full scale
High pressure sensor 0 psi to +5000 psi,
0.00 bar to 345 bar
0.1 psi,
0.01 bar
0.035 % of full scale
General Specifications
Instrument setup recall Last used on power-up
Environmental Operating temperature -10 °C to +50 °C
Storage temperature (without batteries) -20 °C to +60 °C
Altitude 2,000 meters
Ingress protection IP-40
Power requirements 6.0 v dc
Battery life >35 hours, typical usage
Batteries required (4) Standard AA cells
Dimentions (HxWxD) 7.9" X 4.3" X 2.3" (20 cm X 11 cm X 5.8 cm)
Weight 03539 kg (1 lb 3 oz)
Connectors/ports pressure Two, 1/8 in NPT, 700P Series Pressure Module; RTD Probe
Electrical and Temperature Measurement 1-Year
Function Range Resolution Accuracy
mA measure 0 to 24 mA 0.001 mA ±0.015% of rdg
±0.002mA
VDC measure 0 to 30 VDC 0.001V ±0.015% of rdg
±0.002V
*Temperature measure (RTD/ Ohms) -40 °C to 150 °C
(-40 °F to 302 °F)
0.01 °C, 0.01 °F ±0.015% of rdg
±0.02 ohms
±0.1°C (±0.2°F)
±0.25 degC (±0.45
degF) combined uncertainty when using 720 RTD probe accessory
Loop power supply 24V N/A 24 mA @ 24V
*Temperature measurement requires optional Fluke-720RTD Pt-100 RTD probe available as an accessory
Temperature Effect
No effect on accuracy on all functions from 15 °C to 35 °C
Add ± 0.002 % F.S./°C for temps outside of 15 °C to 35 °C
Available Pressure Engineering Units
psi, bar, mbar, kPa, kgcm2, cmH2O@4°C, cmH2O@20°C, mH2O@4°C, mH2O@20°C, inH2O@4°C, inH2O@20°C, inH2O@60°F, mmHg@0°C, inHg@0°C, ftH2O@4°C, ftH2O@20°C, ftH2O@60°F

Fluke 721 Features:

  • Ideal for gas flow calibration (custody transfer) applications
  • Two isolated, stainless steel, pressure sensors with 0.025 % accuracy
  • Pt100 RTD input for temperature measurement, (probe optional)
  • Measures 4 to 20 mA signals
  • Internal 24 V loop power supply can power a transmitter under test
  • Measure up to 30 V dc, check 24 V loop power supplies
  • Extend pressure measurement range with connection to external 700 series pressure modules (29 ranges)
  • Large backlit graphic display can display up to three inputs simultaneously
  • Store five instrument setups for recall and use

What's Included with the Fluke 721 Series

  • Dual Sensor Pressure Calibrator
  • Soft case
  • Four (4) AA batteries
  • Manual
  • Traceable calibration certificate
  • Test leads
