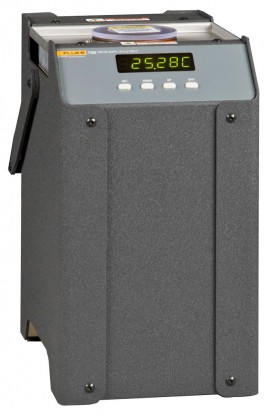

Fluke 7103-156 Liquid Bath Calibrator, -30 to 125°C

Model: 7103-156

Worlds smallest portable calibration bath that can be transported with fluid in them. This model uses a fluid medium which eliminates the problems of fit and immersion issues.

Add In House NIST Traceable Calibration to your 7103-156

Clear selected options


$7,250.00 USD

2 to 3 Weeks






Fluke 7103-156 Liquid Bath Calibrator, -30 to 125°C Offers

Features

  • World's smallest portable calibration baths can be transported with the fluid in them
  • Stable to ±0.03°C or better, depending on the fluid you use
  • Uniformity is ±0.02°C or better for low uncertainties using a reference thermometer
  • Display accuracy has been improved to ±0.25°C for quick calibrations without a reference thermometer
  • With a 48mm (1.9") diameter, 140mm (5.5") deep tank, user can calibrate any type of sensor including short, square, or odd-shaped sensors
  • Problems of fit and immersion are virtually eliminated by using a fluid medium rather than a dry-block calibrator
  • Micro-Baths are perfect for liquid-in-glass and bimetal thermometers
  • All models have RS-232 ports, come with Interface-it software, and can be used with MET/TEMP II software
  • Also included are contacts to calibrate a thermal switch, eight set-point memory storage, ramp-rate adjust, and over-temperature safety cutout
  • Cold Micro-Baths are CFC-free as well as compressor-free

Applications

Ideal for the following applications: Laboratory, Education, R&D, Calibration Labs, Field Calibration

Fluke 7103-156 Specifications

Temperature Range -30 to 125°C (-22 to 257°F)
Stability ±0.03°C @ -25°C; ±0.05°C @ 125°C (oil 5010)
Accuracy ±0.25°C
Uniformity ±0.02°C
Resolution 0.01°C/°F
Heating Time 25 to 100°C: 35 minutes
Cooling Time 25 to -20°C: 45 minutes
Fluid Volume 1.0L
Well Size 2.5" dia. x 5.5" deep (64 x 139 mm) Access opening is 1.9" (48 mm) dia.
Click here for complete specifications on the Fluke 7103-156

Accessories

Click on a category to view a selection of compatible accessories with the Fluke 7103-156 Liquid Bath Calibrator, -30 to 125°C.

Fluke 5013-1L Silicone Oil, Type 200.20, 1L, 10 to 230°C 5013-1L 84921
Silicone oil for the Fluke 6102, 7102 and 7103 Liquid Bath Calibrators.
$145.00 USD

Learn More

Fluke 5020-1L Ethylene Glycol, 1L, -30 to 90°C 5020-1L 84922
Ethylene Glycol for the 6102, 7102 and 7103 Liquid Bath Calibrators.
$44.00 USD

Learn More

Fluke 5010-1L Silicone Oil, Type 200.50, 1L, -40 to 130°C 5010-1L 84920
Silicone oil for the 6102, 7102 and 7103 Liquid Bath Calibrators.
$155.00 USD

Learn More

Fluke 2083 Tank Extension Adapter, 3" 2083 84914
Tank Extension Adapter for the 6102, 7102 and 7103 Liquid Bath Calibrators.
$423.00 USD

was$470.00


Learn More

Fluke 2085 Spare Tank Lid for the Fluke 7103 2085 84915
Spare Tank Lid for the Liquid Bath Calibrator.
$198.00 USD

was$220.00


Learn More

Fluke 9317 Carrying Case for Fluke Liquid Bath Calibrators 9317 84917
Carrying case for the 7102 and 7103 Liquid Bath Calibrator.
$819.00 USD

was$910.00


Learn More
