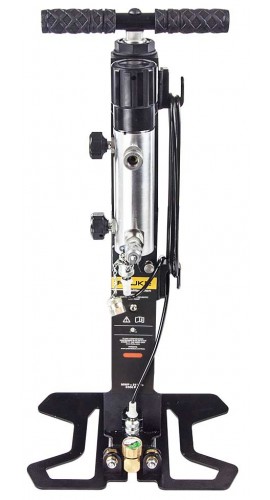

Fluke 700HPPK-NPT High Pressure Pneumatic Pump/Comparator Kit with NPT Fittings, 3000 psi

Model: 700HPPK-NPT

Without requiring a nitrogen bottle or other external pressure supply the pneumatic pressures are generated and can be adjusted up to 21 MPa (3000 psi). While transmitters, controllers, pilots, digital and analog gauges, and other devices are under test (DUTs) it can supply pressure.

$3,800.00 USD

2 to 3 Weeks






Fluke 700HPPK-NPT Offers

A simple-to-use, safe and portable pressure source that can depended on in a wide variety of conditions.

Features

  • Generate and adjust pneumatic pressures up to 21 MPa (3000 psi)
  • Rugged, portable and stable enough to go anywhere—on any surface
  • Reaches pressure in 20 seconds to full scale into a 30 cm3 volume
  • Detachable pressure adjustment system for adjusting pressure, connecting reference and test devices on bench and in field, and isolating and venting pressure
  • Easily switch out reference gauges without requiring PTFE tape or tools
  • 2-meter (6.5 foot) pressure line and assorted pressure fittings enable a wide variety of possible connections
  • In-line filter and desiccant systems protects device from contamination from the DUT

Fluke 700HPPK-NPT Specifications

Maximum working pressure 3000 psi (21 MPa)
Time to generate full scale pressure with 10 cc volume (s) 20
Dimensions 66 x 30.5 x 13 cm (26 x 12 x 5 in)
Reference gauge connection 1/4 NPT, quick connect
Inlet supply contamination protection Desiccant filter
DUT contamination protection filter 100 micron
Fine adjustment resolution 0.05 % reading
Maximum leak rate (with isolation valve closed) 0.01 % reading
Click here for complete specifications on the Fluke 700HPPK-NPT

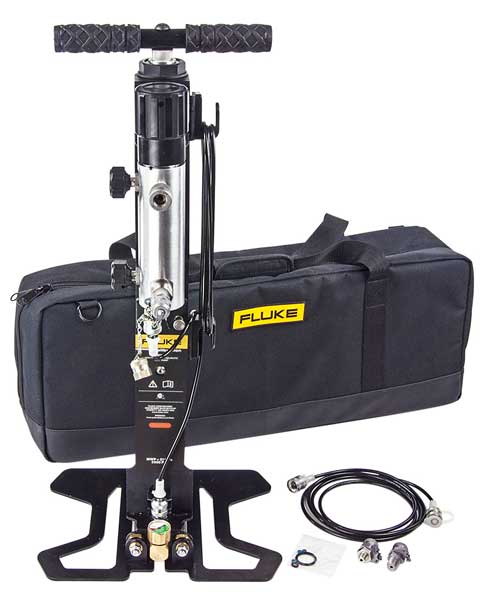

The full layout of objects included with this purchase.

What's Included with the Fluke 700HPPK-NPT

  • High Pressure Pneumatic Pump/Comparator
  • High pressure pneumatic quick service kit (seals for pump)
  • Dry pac refill
  • Silicone grease
  • High pressure hose
  • Test port adapters
  • Canvas carrying bag

Accessories

Click on a category to view a selection of compatible accessories with the Fluke 700HPPK-NPT High Pressure Pneumatic Pump/Comparator Kit with NPT Fittings, 3000 psi.

Fluke 700HPM High Pressure Pnumatic Calibration Manifold, 3000 psi 700HPM 94339
For use with the Fluke High Pressure Pneumatic Pumps.
$1,400.00 USD

Learn More

Fluke 700HPF-NPT High Pressure Pneumatic Premium Fittings, NPT, 3000 psi 700HPF-NPT 94340
Includes a 3/8 NPT male, 1/2 NPT male, 1/2 NPT female, 1/4 NPT male swivel and a 1/4 NPT female swivel.
$350.00 USD

Learn More
