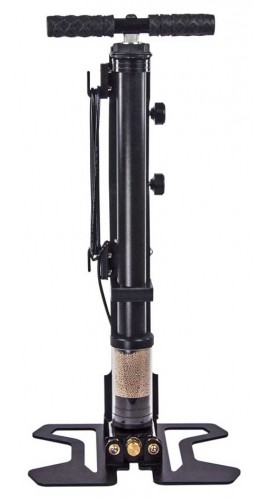

Fluke 700HPP-NPT High Pressure Pneumatic Test Pump with NPT Fittings, 3000 psi

Model: 700HPP-NPT

Finely adjust the pressures on a device under test with this high pressure pneumatic pump.

$2,500.00 USD

2 to 3 Weeks






Fluke 700HPP-NPT Offers

A simple-to-use, safe and portable pressure source that can depended on in a wide variety of conditions.

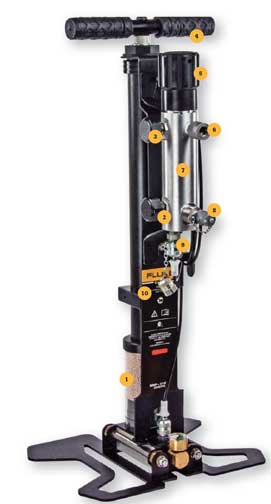

  1. The desiccant tube protects against contamination from inlet gas
  2. The inlet valve (700HPPK only) is conveniently located at the bottom of the calibration manifold. Opening and closing this valve helps to stabilize the pressure faster
  3. The vent valve lets you vent the pressure with a simple turn of a knob (HPPK only)
  4. The pump handle lets you generate pressure easily and without physical straining
  5. The variable volume control lets you adjust the pressure and achieve the exact target pressure on the reference gauge (HPPK only)
  6. The gauge port enables you to connect a reference gauge to the calibration manifold (HPPK only)
  7. The calibration manifold (700HPPK only) attaches and detaches easily with quick detent pins, so it’s easy to set up in the field
  8. External line providing simple and fast connection to the Device Under Test
  9. Inlet port connecting the pump and adjustment manifold
  10. The calibration manifold attaches to the pump bracket

Fluke 700HPP-NPT Specifications

Maximum working pressure 3000 psi (21 MPa)
Time to generate full scale pressure with 10 cc volume (s) 20
Dimensions 66 x 25 x 13 cm (26 x 10 x 5 in)
Reference gauge connection 1/4 NPT, quick connect
Inlet supply contamination protection Desiccant filter
Supplied test port adapters
NPT 1/8, 1/4 NPT
BSP 1/8, 1/4 BSP
MET M14, M20, 1/4 NPT
Click here for complete specifications on the Fluke 700HPP-NPT
The full layout of objects included with this purchase.

What's Included with the Fluke 700HPP-NPT

  • High Pressure Pneumatic Test Pump
  • High pressure pneumatic quick service kit (seals for pump)
  • Dry pac refill
  • Silicone grease
  • High pressure hose
  • Test port adapters
  • Canvas carrying bag

Accessories

Click on a category to view a selection of compatible accessories with the Fluke 700HPP-NPT High Pressure Pneumatic Test Pump with NPT Fittings, 3000 psi.

Fluke 700HPM High Pressure Pnumatic Calibration Manifold, 3000 psi 700HPM 94339
For use with the Fluke High Pressure Pneumatic Pumps.
$1,400.00 USD

Learn More

Fluke 700HPF-NPT High Pressure Pneumatic Premium Fittings, NPT, 3000 psi 700HPF-NPT 94340
Includes a 3/8 NPT male, 1/2 NPT male, 1/2 NPT female, 1/4 NPT male swivel and a 1/4 NPT female swivel.
$350.00 USD

Learn More
