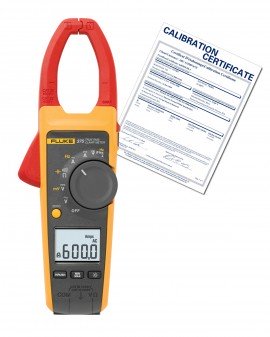

Fluke 375-NIST True RMS AC DC Clamp Meter with NIST Traceable Certificate

Model: 375-NIST

Sorry! This product has been discontinued.


The Fluke 375-NIST True RMS AC DC Clamp Meter with NIST Traceable Certificate has been discontinued, it has been replaced by the Fluke 375 FC True-rms AC/DC Clamp Meter with Calibration Certificate





Fluke 375-NIST Offers

  • True-rms ac voltage and current for accurate measurements on non-linear signals
  • 500 mV DC measurement range to interface with other accessories
  • Integrated low pass filter and state of the art signal processing allows for use in noisy electrical environments while providing stable readings
  • Proprietary inrush measurement technology to filter out noise and capture motor starting current exactly as the circuit protection sees it
  • Ergonomic design fits in your hand and can be used while wearing protective equipment
  • Large, easy to read backlight display automatically sets the correct measurement range so you do not need to change the switch positions while taking a measurement

Specifications:

AC current via jaw

  • Range: 600 A
  • Resolution: 0.1 A
  • Accuracy: 2 % ± 5 digits

AC current via iFlex™ (optional)

  • Range: 2500 A
  • Resolution: 0.1 A
  • Accuracy: 3 % ± 5 digits

DC current

  • Range: 600 A
  • Resolution: 0.1 A
  • Accuracy: 2 % ± 5 digits

AC voltage

  • Range: 600 V
  • Resolution: 0.1 V
  • Accuracy: 1.5 % ± 5 digits

DC voltage

  • Range: 600 V
  • Resolution: 0.1 mV
  • Accuracy: 1 % ± 5 digits

Resistance

  • Range: 60,000 Ω
  • Resolution: 0.1 Ω
  • Accuracy: 1 % ± 5 digits

Frequency

  • Range: 500 Hz
  • Resolution: 0.1 Hz
  • Accuracy: 0.5 % ± 5 digits

Capacitance

  • Range: 1 µF to 1000 µF
  • Resolution: 1 µF
  • Accuracy: 1 % ± 4 digits

General Specifications

  • Diameter of measurable conductor: 0.13" or 34 mm max
  • Size: 246 x 83 x 43 mm, (9.685 x 3.267 x 1.692 in.)
  • Weight: 388g, (14 oz.)
