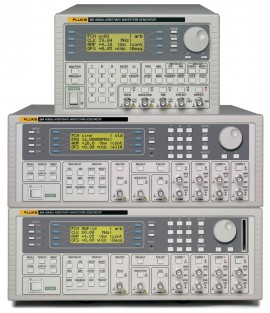

Fluke 280 & 290 Series Single and Multi-Channel Universal ARB Generators

Model: 280 and 290 Series

These universal waveform generators combine many generators in one instrument. Their extensive signal simulation capabilities include arbitrary waveforms, function generator, pulse/pulse train generator, sweep generator, trigger generator, tone generator, and amplitude modulation source.


Ordering Information

Fluke 281-U Arbitrary Waveform Generator and Manager, 40 MS/s, 1 Channel

Combines multiple waveform generator functions in one instrument. Its extensive signal simulation capabilities include arbitrary waveforms, function generator, pulse/pulse train generator, sweep generator, trigger generator, tone generator, and amplitude modulation source.

$2,645.00

2 to 3 Weeks

Fluke 282-U Arbitrary Waveform Generator and Manager, 40 MS/s, 2 Channel

Combines multiple waveform generator functions in one instrument. Its extensive signal simulation capabilities include arbitrary waveforms, function generator, pulse/pulse train generator, sweep generator, trigger generator, tone generator, and amplitude modulation source.

$4,485.00

2 to 3 Weeks

Fluke 284-U Arbitrary Waveform Generator and Manager, 40 MS/s, 4 Channel

Combines multiple waveform generator functions in one instrument. Its extensive signal simulation capabilities include arbitrary waveforms, function generator, pulse/pulse train generator, sweep generator, trigger generator, tone generator, and amplitude modulation source.

$7,135.00

2 to 3 Weeks

Fluke 291-U Arbitrary Waveform Generator and Manager, 100 MS/s, 1 Channel

Combines multiple waveform generator functions in one instrument. Its extensive signal simulation capabilities include arbitrary waveforms, function generator, pulse/pulse train generator, sweep generator, trigger generator, tone generator, and amplitude modulation source.

$4,280.00

2 to 3 Weeks

Fluke 292-U Arbitrary Waveform Generator and Manager, 100 MS/s, 2 Channel

Combines multiple waveform generator functions in one instrument. Its extensive signal simulation capabilities include arbitrary waveforms, function generator, pulse/pulse train generator, sweep generator, trigger generator, tone generator, and amplitude modulation source.

$6,525.00

2 to 3 Weeks

Fluke 294-U Arbitrary Waveform Generator and Manager, 100 MS/s, 4 Channel

Combines multiple waveform generator functions in one instrument. Its extensive signal simulation capabilities include arbitrary waveforms, function generator, pulse/pulse train generator, sweep generator, trigger generator, tone generator, and amplitude modulation source.

$9,485.00

2 to 3 Weeks





Fluke 280 and 290 Series Offers

The 280 and 290 Series are highly sophisticated 12-bit arbitrary waveform generators capable of recreating virtually any waveform. True variable clock architecture is used with clock speeds between 0.1 Hz and 100 MHz (40 MHz on 280 Series units). This avoids the clock jitter associated with DDS arbitrary generators and permits waveform linking, looping and sequencing.

Features

  • Choice of 1, 2 and 4 independent or linked channels
  • 40 MS/s max. sampling speed
  • 16 MHz function generator
  • 10 MHz pulse generator
  • Pulse train pattern generator
  • Arbitrary waveforms of up to 65 k points
  • Powerful modulation capabilities
  • Built-in trigger generators
  • Waveform Manager Plus for Windows® software
  • Tone switching
  • Multiple standard waveforms recalled from internal memory
  • RS-232 and GPIB interfaces
  • Fluke METCAL Compatible
