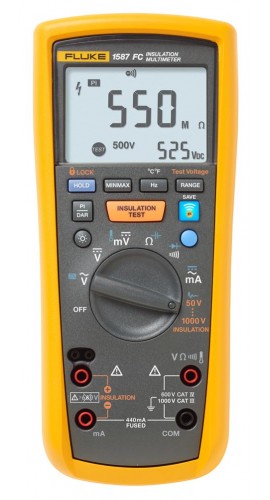

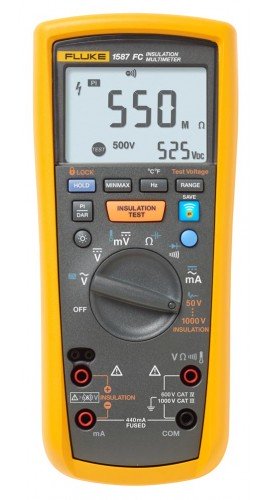

Fluke 1587 FC Insulation Multimeter

Model: 1587 FC | Order No: 1587FC

Maintain the uptime of electrical equipment with this troubleshooting and preventative maintenance kit.

Add In House NIST Traceable Calibration to your 1587 FC

Clear selected options


$719.99 USD

was $799.99

1 Week



Fluke Connect is the best way to stay in contact with your team without leaving the field.





Fluke 1587 FC Offers

  • PI/DAR timed ratio tests (1587 FC only)
  • Live circuit detection prevents insulation test if voltage > 30 V is detected for added user protection
  • VFD low-pass filter for accurate motor drive measurements (1587 FC only)
  • Auto-discharge of capacitive voltage for added user protection
  • Insulation test (1587 FC: 0.01 MΩ to 2 GΩ) (1577: 0.1 MΩ to 600 MΩ)
  • Insulation test voltages (1587 FC: 50 V, 100 V, 250 V, 500 V, 1000 V),(1577: 500 V, 1000 V) for many applications
  • AC/DC voltage, DC millivolts, AC/DC milliamps, Resistance (Ω), Continuity
  • Capacitance, diode test, temperature, Min/Max, frequency (Hz)(1587 FC only)
  • Auto power off to save battery power
  • CAT III 1000 V, CAT IV 600 V measurement category
  • Rugged, utility hard case allows you to bring everything you need for the job
  • Large display with backlight

Specifications:

Voltage DC

  • Maximum Voltage: 1000V
  • Maximum Resolution: 0.001V
  • Accuracy: ±(0.09%+2)

Voltage AC

  • Maximum Voltage: 1000V
  • Maximum Resolution: 0.1 mV
  • Accuracy: ±(2%+3)

Current DC

  • Maximum Amps: 400mA
  • Maximum Resolution: 0.01 mA
  • Amps Accuracy: ±(0.2%+2)

Current AC

  • Maximum Amps: 400mA
  • Maximum Resolution: 0.01 mA
  • Amps Accuracy: ±(1.5%+2)*

Resistance

  • Maximum Resistance: 50 MΩ
  • Maximum Resolution: 0.1Ω
  • Accuracy: ±(0.9%+2)

Insulation Test

  • Minimum Test Current @ 1kΩ/V:1mA
  • Test Voltages: 1577:500, 1000V
  • Maximum Resistance per Test Voltage: 50V; 100V; 250V; 500V; 1000V: 600 MΩ
  • Maximum Resolution per Test Voltage: 50V: 0.01 MΩ; 100V: 0.01 MΩ; 250V: 0.1 MΩ; 500V: 0.1 MΩ; 1000V: 0.1 MΩ
  • Accuracy per Test Voltage: 50V: ±(3% + 5); 100V: ±(3% + 5); 250V: ±(1.5% + 5)

General Specifications

  • Dimensions: 203x100x50mm (with holster)
  • Weight: 624g
  • Battery Life: Meter use: 1000 hours; Insulation test use: Meter can perform at least 1000 insulation tests with fresh alkaline batteries at room temperature. These are standard tests of 1000 V into 1 MΩ with a duty cycle of 5 seconds on and 25 seconds off.
  • IP Rating: IP40

Specifications

Voltage DC
Maximum Voltage 1000 V
Accuracy ±(0.2%+2)
Maximum Resolution 0.001V
Voltage AC
Maximum Voltage 1000 V
Accuracy ±(2%+3)
Maximum Resolution 0.1 mV
Current DC
Maximum Amps 400mA
Amps Accuracy ±(1.0%+2)
Maximum Resolution 0.01 mA
Current AC
Maximum Amps 400mA
Amps Accuracy ±(2.0%+2) 1kHz bandwidth
Maximum Resolution 0.01 mA
Resistance
Maximum Resistance 50 MΩ
Accuracy ±(1.2%+2)
Maximum Resolution 0.1Ω
Insulation Test
Minimum Test Current @ 1kΩ/V 1mA
Test Voltages 500, 1000 V
Maximum Resistance per Test Voltage 100V: 600 MΩ
Maximum Resolution per Test Voltage 50V: 0.01 MΩ 100V: 0.01 MΩ 250V: 0.1 MΩ 500V: 0.1 MΩ 100V: 0.1 MΩ
Accuracy per Test Voltage 50V: ±(3 % + 5) 100V: ±(3 % + 5) 250V: ±(1.5 % + 5) 500V: ±(2.0 % + 5) 100V: ±(2.0 % + 5)
Environmental Specifications
Operating temperature –20 °C to +55 °C
Storage temperature -40°C to +60°C
Humidity (Without Condensation) 0% - 95% (10 °C – 30 °C) 0% - 75% (30 °C – 40 °C) 0% - 40% (40 °C – 55 °C)
Operating Altitude 2000 m
Safety Specifications
Overvoltage category Complies with ANSI/ISA 82.02.01 (61010-1) 2004, CAN/CSA-C22.2 NO. 61010-1-04, and IEC/EN 61010-1 2nd Edition for measurement CAT III 1000 V and CAT IV 600 V
Agency Approvals 2000 m CAT III 1000 V, CAT IV 600 V; 3000 m CAT II 1000 V, CAT III 600 V
Mechanical & General Specifications
Size 203 x 100 x 50 mm (with holster)
Weight 624 g
Warranty 3 years
Battery life Alkaline Meter use 1000 hours
Insulation test use Meter can perform at least 1000 insulation tests with fresh alkaline batteries at room temperature. These are standard tests of 1000 V into 1 MΩ with a duty cycle of 5 seconds on and 25 seconds off.
IP Rating IP40
Click here for complete specifications on the Fluke 1587 FC

What's included with the Fluke 1587 FC

  • 1587 FC Insulation Multimeter
  • Remote probe
  • Test leads
  • Alligator clips
  • K-type thermocouple
  • Hard case
  • User documentation
This product features Fluke Connect Technology

See it. Save it. Share it. All the facts, right in the field.

Fluke engineers have delivered an innovative mobile platform and tool that helps solve everyday problems, allowing you to instantly document measurements, retrieve historical data, and share live measurements with your team. All handled by the Android™ or iOS smart phone you already carry.

Fluke Connect with ShareLive™ video call is the only wireless measurement system that lets you stay in contact with your entire team without leaving the field. The Fluke Connect mobile app is works with over 20 different Fluke products - the largest suite of connected test tools in the world.

Make the best decisions faster than ever before by viewing temperature, mechanical, electrical and vibration measurements for each equipment asset in one place. Get started saving time and increasing your productivity.


Fluke Connect Features:

  • TrendIt™ Graphs: Use graphing to show changes in measurements, allowing you to graph and show problems instantly.
  • EquipmentLog™ History: Access equipment history building a database of equipment health and baselines with cloud backup.
  • ShareLive™ Video Calls: Save, collaborate and share measurements instantly with your team anytime, from anywhere.
  • AutoRecord™ Measurements: Instantly save measurements to your phone with Cloud backup.
  • Fluke Cloud™ Storage: Securely access equipment records anywhere, anytime.

Fluke Connect Benefits:

  • Maximize uptime
  • Minimize maintenance costs
  • Better assessments with accurate records
  • Higher efficiency with less walking around; no notebook and excel needed
  • Share troubleshooting knowledge live
  • Create and share helpful content in the field
  • Access to Fluke digital product manuals means no need to carry manuals in the field
  • Keep organized manually entered measurements
