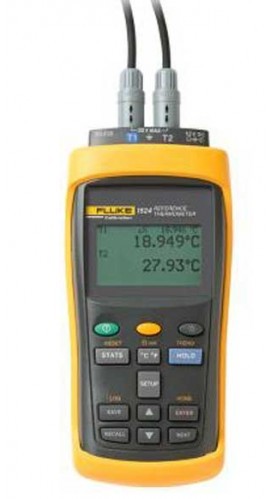

Fluke 1524 Reference Thermometer, 2 CH

Model: 1524 | Order No: 1524-156

Single channel thermometer measures, graphs and records three sensor types (PRTs, thermocouples and thermistors) with one tool. Current reversal technique eliminates thermal EMFs, for precise temperature measurements: PRTs up to ±0.011°C; Thermocouples up to ±0.24°C; Thermistors up to ±0.002°C.

$2,270.00 USD

1 to 2 Weeks






Fluke 1524-156 Offers

Use the Fluke 1524-156 2 Channel Handheld Thermometer Readout with Data Logger feature to measure, graph, and record PRT's, thermocouples, and thermistors.

You need accuracy for compliance, product yields, energy savings, and consistent results. The 1523/24 uses current reversal, a technique used in high-end instruments that eliminates thermal EMFs, for precision temperature measurements. Specifications are guaranteed from -10°C to 60°C ambient. Special precision resistors and a highly stable reference voltage source keep 1523/24 accuracy virtually insensitive to environmental temperature.

Probes may be locked by password to specific channels and readouts for security or for system calibration traceability. Plug any thermocouple with mini-thermocouple jacks into an optional universal thermocouple adapter for convenient measurement. Each thermocouple adapter or standard connector supports reference junction compensation (RJC) with its own internal precision thermistor.

Features

  • Dual channel measurement
  • Memory for logging 15,000 measurements
  • Real-time clock for time and date stamps
  • Special precision resistors and a highly stable reference voltage source keep accuracy virtually insensitive to environmental temperature
  • See trends graphically on 128 x 64 backlit LCD display
  • Change the graph's resolution at the touch of a button
  • Hold readings on the display at the touch of a button
  • Document up to 25 readings and associated statistics (average maximum and minimum values, and standard deviation)
  • Upload readings to a PC via RS-232 connection
  • RS-232-to-USB adapters are available for those who prefer USB connectors
  • Plug-and-Play Probes: Simply plugging in the probe automatically uploads probe calibration information to the readout, ensuring correct temperature conversion
  • Battery power lasts at least 20 hours on three AA batteries, or use the
  • DC power adapter for extended periods of measurement

Fluke 1524-156 Specifications

Input Channels 2
Sensor Types PRTs, RTDs, thermistors, thermocouples
Thermocouple Types C, E, J, K, L, M, N, T, U, B, R, S
Resolution PRTs & Thermistors: 0.001°
Thermocouples: 0.01°
Data Logging 25 readings with statistics; 15,000 with time & date stamps
Sample Interval 1s (normal); 0.3s (fast)
Statistics Max., Min., Avg., Std. Dev.
Trending Scale: ±10°C (18°F), ±1°C (1.8°F), ±0.1°C (0.18°F), ±0.01°C (0.018°F), 10 mins of real-time data
Millivolt Range -10 to 75 mV
Accuracy ±(0.005% + 5µV)
Resistance Range 0 to 400Ω, 400Ω to 50kΩ, 50 to 500kΩ
Accuracy (0.004% + 0.002Ω), ±(0.01% + 0.5Ω), ±(0.03%)
Ref. Junction Comp. ±0.2°C (±0.36°F)
Computer Interface RS-232
Power Supply 3 AA alkaline batteries, 12VDC universal power supply
Dimensions 96 x 200 x 47mm (3.75 x 7.9 x 1.86")
Weight 0.65kg (1.4lb)
Click here for complete specifications on the Fluke 1524

What's included with the Fluke 1524-156

  • 1524 Reference Thermometer
  • 12V DC universal power supply
  • RS-232 cable
  • 9940 I/O ToolKit software
  • CD-ROM (contains technical manual)
  • Users guide
