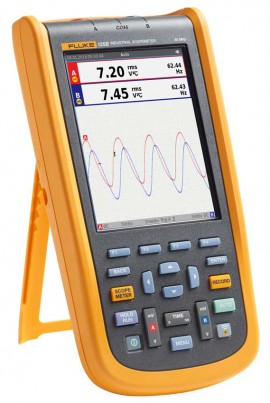

Model: 125B | Order No: 125B/NA
Dedicated measurements and tests for electrical power and industrial network signals. Innovative functions designed to help technicians troubleshoot more efficientally and get the answers they need to keep their systems up and running. Display waveforms with Connect and View™ trigger and setup technology and automatically view related numerical measurements using Fluke IntellaSet™ technology, all without making manual measurement adjustments.
|DC Voltage Ranges||500 mV, 5 V, 50 V, 500 V, 750 V|
|Accuracy||± (0.5 % +5 counts)|
|True-rms Voltages (V ac and V ac+dc) Ranges||500 mV, 5 V, 50 V, 500 V, 750 V|
|Accuracy for 5 % to 100 % of range (AC or dc coupled)||60 Hz to 20 kHz | ± (2.5 % +15 counts)|
|Frequency Response - DC Coupled|
|Without probes and test leads (with BB120)||dc to 40 MHz (-3 dB)|
|With STL120-IV 1:1 shielded test leads||DC to 12.5 MHz (-3 dB) / dc to 20 MHz (-6 dB)|
|with VP41 10:1 Probe||dc to 40 MHz (-3 dB)|
|Frequency Response - AC Coupled (If roll off)|
|Without probes and test leads||<10 Hz (-3 dB)|
|With STL120-IV 1:1 shielded test leads||<10 Hz (-3 dB)|
|With VP41 10:1 Probe||<10 Hz (-3 dB)|
|Rise time, excluding probes, test leads||<17.5 ns|
|Readings||Watt, VA, var, PF, DPF, Hz|
|Watt, VA, var ranges (auto)||250 W to 250 MW, 625 MW, 1.56 GW|
|Number of Harmonics||DC to 51|
|Bus health tester|
Fluke engineers have delivered an innovative mobile platform and tool that helps solve everyday problems, allowing you to instantly document measurements, retrieve historical data, and share live measurements with your team. All handled by the Android™ or iOS smart phone you already carry.
Fluke Connect with ShareLive™ video call is the only wireless measurement system that lets you stay in contact with your entire team without leaving the field. The Fluke Connect mobile app is works with over 20 different Fluke products - the largest suite of connected test tools in the world.
Make the best decisions faster than ever before by viewing temperature, mechanical, electrical and vibration measurements for each equipment asset in one place. Get started saving time and increasing your productivity.
Click on a category to view a selection of compatible accessories with the Fluke 125B Dual Input Multimeter & Recorder, Power & Harmonic Measurements, 40MHz.
