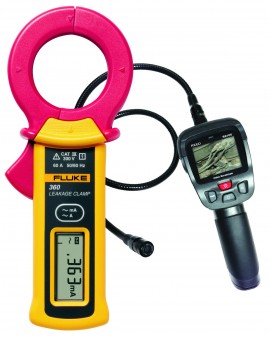

Rugged and accurate solution for leakage current measurements. Features 3mA range and a broad range measurement from 1µA up to 60A. This value added kit includes the REED R8100 Borescope for FREE.
Purchase a Fluke 360 Leakage Current Clamp Meter and receive a FREE REED R8100 High Definition Borescope.
Fluke 360 Clamp Meter
Measurement of leakage current with 3 mA range and 1 µA of resolution, for accurate monitoring of insulation erosion.
REED R8100 Borescope
High definition inspection scope detects and diagnoses problems without direct physical or visual access.
Commonly used in the visual inspection of aircraft engines, aero-derivative industrial gas turbines, steam turbines, diesel engines, and automotive and truck engines. They are also used in manufacturing of machined or cast parts to inspect critical interior surfaces for burrs, surface finish or complete through-holes. Other common uses include forensic applications in law enforcement and building inspection, and in gun-smithing for inspecting the interior bore of a firearm.
|AC Current Range and Resolution||3mA: 0.001mA
|AC Current Accuracy||3mA to 30mA: 1% + 5
0 to 50A: 1% +5
50 to 60A: 5% + 5
|Max Permissible Current||60A RMS|
|Display||Digital display: 3200 counts
Bar-graph display: 32 segments, LCD
|Measurement Cycle||2 times/second (Digital display), 12 times/second (Bar-graph display)|
|Temperature Coefficient||0.05% of range / °C or less
(within the ranges of 0 to 18°C and 28 to 50°C for measurement of 0 to 50A)
|Circuit Voltage||≤300V RMS|
|Safety Standard||EN 61010-1, EN 61010-2-032. 300 V CAT II, Pollution Degree 2|
|Battery Life||Approx. 90 hours (when continuously used)|
Rugged and accurate solution for leakage current measurements. Features 3mA range and a broad range measurement from 1µA up to 60A.
Can be used for visual inspection work where the area to be inspected is inaccessible by other means and is mostly used in non destructive testing techniques for recognizing defects or imperfections.
