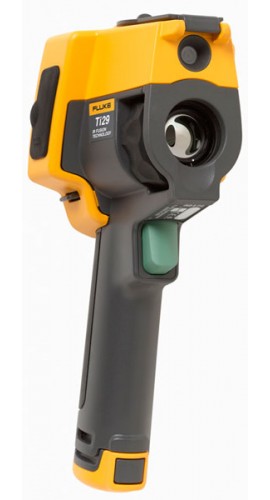

Fluke Ti29 (60Hz) Thermal Imager
- 280x210 IR resolution
- -4 °F to +1112 °F temperature range
- ± 2 °C or 2 % accuracy
- IR-Fusion (Picture-in-picture)
- High-temperature Alarm
Part Number:
FE Ti29/60Hz
In Stock?
Stock may be available
please call (877)766-5412 to confirm
please call (877)766-5412 to confirm
Quantity
Price:
$7495.00
USD (change)
USD (change)
Fluke Ti29 Thermal Imager
The all new Fluke Ti29 thermal imager provides high-performance for any budget. Based on the award-winning Fluke Ti32, the Fluke Ti29 delivers proven, practical performance for a wide range of diagnostic applications (industrial, electrical and process control) and its designed to work in even the harshest environments providing superior image quality with a one-handed, easy-to-use interface.The Fluke Ti29 features a 280 x 210 IR sensor, a temperature range of -20 °C to +600 °C (-4 °F to +1112 °F) with an temperature measurement accuracy of ± 2 °C or 2 % (at 25 °C nominal, whichever is greater).
Fluke thermal imagers make it so simple to capture images and analyze data right out of the box!
Fluke Ti29 Key Features
Superior image quality
Industry-leading thermal sensitivity and spatial resolution combined with a high definition display, creates the sharpest images in the industry.One-handed, easy-to-use interface
With just a push of your thumb, go from one-handed manual smart focus to adding picture-in-picture and even add voice comments.Torture tested
Before a Fluke goes into your hands, we drop it from ours. Only Fluke thermal imagers are designed from the inside out to withstand a 6.5 ft drop.Patented Fluke IR-Fusion®
(Picture-in-picture and auto blending)Precision visible and IR image alignment allows Fluke to offer the only on-camera blended infrared and visible image to better diagnose issues.
Interchangeable lenses
Interchangeable wide-angle and IR-Fusion compatible telephoto lenses to cover any application.Fluke Ti29 is used by:
- Maintenance professionals
- Troubleshooting technicians
- Preventative maintenance professionals
- Predictive maintenance professionals
- Industrial and commercial electricians
- Commercial HVAC/R technicians
- Facilities managers
- Weatherization specialists
- Energy auditors
- Restoration and remediation professionals
Fluke Ti29 Applications:
- Industrial plans (manufacturing, process, petrochemical, etc)
- Commercial buildings
- Schools
- Hospitals
- Electrical and water utilities
- Residential dwellings
What's Included:
- SmartView analysis and reporting software
- 2GB SD memory card
- Multi-function card reader for downloading images into your computer
- Rugged hard carry case and portable soft carry case
- Hand strap, for right of left-handed use
- 2 Lithium-Ion removeable and rechargeable smart batteries
- AC charger/power supply and two-bay external charger with mains adapters
- Printed Users Manuals (16 languages available)
Optional Accessories
- Fluke TI-CAR Charger (Car charger)
- Fluke FLK-LENS/TELE1 (Telephoto infrared lens)
- Fluke FLK-LENS/WIDE1 (Wide-angle infrared lens)
- Fluke BOOK-ITP (Introduction to Thermography Priciples Book)
- Fluke FLK-TI-SBP3 (Additional Smart Battery)
- Fluke FLK-TI-SBC3 (Additional Smart Battery Charger)
- Fluke FLK-TI-VISOR (Thermal Imager Visor)
- Fluke TI-TRIPOD (Tripod mounting accessory)
The Good:
The Bad:
The Bottom Line:
The Bad:
The Bottom Line:
Full Review
- AC Operation
- Accuracy 2% accuracy
- Auto Blending
- Auto Power Off
- Color Alarm (high temperature)
- Detector Size 280 x 210 sensor
- Detector Type uncooled microbolometer, focal plane array
- Display 3.7” lcd display
- Emissivity Correction
- Focus manual, 1-handed smartfocus
- Fully Radiometric Images
- Hot/Cold Point Detection
- Image Frequency 60hz frequency
- Measurement Mode center box (software only)
- Measurement Mode center point
- Measurement Mode user defined spots/boxes (software only)
- Memory Type 2gb sd memory
- Number of Temperature Ranges 1 temperature range
- Optional Lens telephoto
- Optional Lens wide angle
- Optional Lenses
- Palettes 16
- Palettes 16 color palettes
- Picture in Picture
- Reflected Correction
- Reflected Temperature Correction
- Sleep mode
- Software
- Temperature Range °C -20°c to 600°c range
- Temperature Range °F -4°f to 1112°f range
- Thermal Image
- Thermal Image Fusion
- Thermal Sensitivity (NETD) 0.05°c sensitivity
- Transmissivity Correction
- Visual Light Image
- Voice Annotation
- Windows CE-Based Navigation
| Accuracy | ±2°c or 2% whichever is greater |
| Battery operating time | 4+ hours continuous per battery pack |
| Battery re-charge time | 2.5 hours or less to full charge |
| Detector Size | 280 x 210 |
| Dimensions | 277 x 122 x 170 mm (10.9 in x 4.8 in x 6.7 in) |
| Display | 3.7 lcd |
| Field of View (FOV) | 23°horizontal x 17°vertical |
| Image Frequency | 60/9 |
| Imager File Formats | bmp, jpg, is0 |
| IP Rating | ip54 |
| Maximum Images | 1200 fully radiometric (.is2) ir-fusion images or 3000 basic ir images (.bmp or .jpg) |
| Memory Type | sd memory card (2 gb) |
| Minimum Focus Distance | 15 cm (approx. 6 in) |
| Number of Temperature Ranges | 1 |
| Operating Temperature | -10 to +50°c (14°f to 122°f) |
| Relative Humidity | 10% to 95% non-condensing |
| Software File Formats | bmp, jpg, gif, png, tif, dib, jpe, jfif, jpeg, tiff |
| Spatial Resolution (IFOV) | 1.43 |
| Spectral Band | 7.5µm to 14µm |
| Storage Temperature | -20 to +50°c (-4°f to 122°f) without batteries |
| Temperature Range °C | -20°c to 600°c |
| Temperature Range °F | -4°f to 1112°f |
| Thermal Sensitivity (NETD) | ≤0.05°c at 30°c (50 mk) |
| Warranty | 2 years |
| Weight | 1.05 kg (2.3 lb) battery included |
Fluke SmartView® software is
included with all Fluke Thermal Imagers. This powerful software provides
a suite of tools that views, optimizes, annotates, and analyzes IR
images. It also generates fully customizable and professional-looking
reports with the push of a button or in a few easy steps. The Fluke
SmartView software is not only easy to use for customers with basic
needs, but it also delivers the performance that advanced users require
for detailed analysis and reporting.
Navigate, analyze and enhance IR images
Organize data with extensive annotations
Optimize images and quickly reveal issues
Simplified Report generation
Fluke SmartView enhances your thermal images:
Navigate, analyze and enhance IR images
Organize data with extensive annotations
Optimize images and quickly reveal issues
Simplified Report generation
Image viewing and optimization
- Displays an array of open images for convenient viewing and analysis
- Displays the temperature at any given point
- Optimize images by adjusting level & span, image parameters, add markers, and more!
Extensive annotation possibilities
- Add annotations to images in the camera or in the PC software
- Input information such as locations, problem description, recommended actions, and other notes
- Reference images can be linked together for good/bad and before/after analysis
- Annotations can be automatically included in reports
- Review voice annotations captured in the field by the imager
Detailed analysis and total image control
- A complete set of marker tools are provided (Hot and Cold points, user defined markers, etc.)
- Use 3D-IR™ to view images from different perspectives, identify additional problems, and eliminate false positives…the ultimate analysis tool for your digital infrared thermal imaging needs
- IR-Fusion®: Five viewing modes enable image optimization based on application needs
Simplified report generation
- Generate professional customized reports fast
- One-click report generation for a quick result
- Choice of features including before/after, IR plus visible light, annotations, supporting data and graphics
- Report wizard guides the user through advanced report generation
System requirements
- Windows ® XP SP2/Vista/7
- A web browser for product registration and web updates. Internet Explorer 5.0 or newer
- 512 MB of RAM minimum (1 GB for Vista or 7)
- 360 MB of hard disk space for product installation
- 16-bit color, 1024 x 768 resolution video or better
- Color printer for printing the images
- CD-ROM drive (for installing SmartView software)
