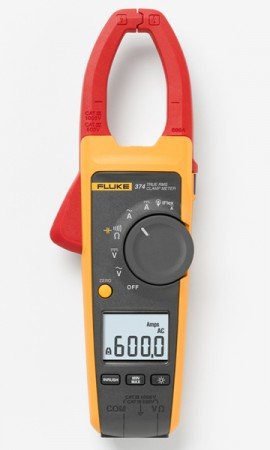

The Fluke 374 Clamp Meter offers improved performance perfect for a wide range of current measurement situations. With true-rms ac voltage and current measurements, the Fluke 374 can read up to 600 V and 600 A in both ac and dc modes with the fixed jaw.
Additionally, the Fluke 374 is compatible with the new iFlex™ flexible current probe (sold separately) which expands the measurement range to 2500 A ac and provides increased display flexibility, ability to measure around awkward sized conductors and improved wire access.
Optional use with the 18" Flexible Current Probe
The Fluke 374 can be used with the Fluke iFlex i2500-18flexible current probe which expands the measurement range to 2500 A AC while providing increased display flexibility, ability to measure awkward sized conductors and improved wire access.
The Fluke 374 is part of Fluke's new Clamp Meter line that includes: 381, 376, 375, 373 & 365.
Replacing the Fluke 336
The Fluke 374 clamp meter is the direct replacement for the Fluke 336 clamp meter. The Fluke 374 includes all the features of the 336, but also includes:
Note: The Fluke 375 clamp meter is the direct replacement for the Fluke 336 clamp meter.
|Measure ac current||200.0 A||600.0 A||600.0 A||600.0 A||999.9 A||999.9 A|
|Measure ac current via iFlex||2500 A||2500 A||2500 A||2500 A|
|Measure ac voltage||600.0 V||600.0 V||600.0 V||600.0 V||1000.0 V||1000.0 V|
|Measure continuity||≤ 30 Ω||≤ 30 Ω||≤ 30 Ω||≤ 30 Ω||≤ 30 Ω||≤ 30 Ω|
|Measure dc current||200.0 A||600.0 A||600.0 A||999.9 A||999.9 A|
|Measure dc voltage||600.0 V||600.0 V||600.0 V||1000.0 V||1000.0 V|
|Measure resistance||6,000 Ω||6,000 Ω||6,000 Ω||60k Ω||60k Ω||60k Ω|
|Measure frequency||500 Hz||500 Hz||500 Hz|
|Measure inrush||100 mS||100 mS||100 mS||100 mS|
|Work in poorly lit areas||Backlight||Backlight||Backlight||Backlight||Backlight||Backlight|
|Measure non-linear loads||True-rms||True-rms||True-rms||True-rms||True-rms||True-rms|
|Fluke 374 Clamp Meter Specifications|
|Diameter of measurable conductor||01.3" or 34 mm max|
|Operating temperature||-14 to 122°F (-10 to 50°C)|
|Storage Temperature||-40 to 140°F (-40 to 60°C)|
|Operating Humidity||< 90% @ 10 to 30°C, < 75% @ 30 to 40°C|
|Operating Altitude||0 to 3000 m|
|Size||246 x 83 x 43 mm, (9.685 x 3.267 x 1.692 in.)|
|Weight||388g, (14 oz.)|
|Temperature Coefficient||0.01% °C|
(<18°C or > 28°C)
|Warranty||Three years for electronics|
One year for cable and clamp assembly
