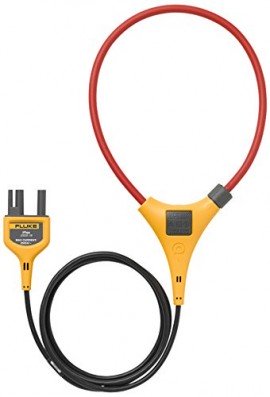

Fluke i2500-18 iFlex Flexible 18" Current Probe

Model: i2500-18

The iFlex 2500 is an 18" flexible current probe that offers a measuring capability up to 2500 A AC current and up to 1000 V AC.

$134.99 USD

was $149.99

1 in Stock






The Fluke i2500-18 iFlex 18" flexible current probes expand the measurement range of the select Fluke meters to 2500 A ac while providing the ultimate measurement flexibility. The iFlex probes connect directly to the meter, displaying current measurements without error prone scaling factors. The 1.8 m (6 ft) cord allows separation between the measurement location and the clamp meter making it easier to view the display. The large loop size and thin cross section allow measurement of awkward sized conductors and improved wire access in crowded spaces. The Fluke i2500-10 also comes in an 25 cm (10 in) size, the Fluke i2500-10.

Features & Benefits

  • Expands the measurement range to 2500 A ac while providing increased display flexibility, ability to measure awkward sized conductors and improved wire access
  • CAT IV 600 V, CAT III 1000 V
  • 7.5 mm coil diameter allows measurement in tight spaces
  • Ergonomic design allows easy operation with one hand
  • 1.8 m (6 ft) cable
  • Three-year warranty
Specifications
i2500-18 and i2500-10
Range
Resolution
Accuracy
AC Current*
2500 A
0.1 A
3% ± 5 digits**
Frequency*500 Hz
0.1 Hz
0.5% ± 5 digits
External magnetic
field rejection

(with cable >10 cm from the coupling)

40 dB
Inrush**
Safety rating
CAT III 1000 V, CAT IV 600 V
*When used with compatible Fluke meter. Accuracy stated includes probe and meter accuracy.
** For position accuracy at non-optimum positions, see Position sensitivity specifications table "A"

 Position Sensitivity Specifications
 Distance from Optimum
i2500-10
i2500-18
Additional iFlex error
 A0.5 in (12.7 mm)
1.4 in (35.6 mm)
 ± 0.5%
 B0.8 in (20.3 mm)
 2.0 in (50.8 mm) ± 1.0%
 C1.4 in (35.6 mm)
 2.5 in (63.5 mm) ± 2.0%
