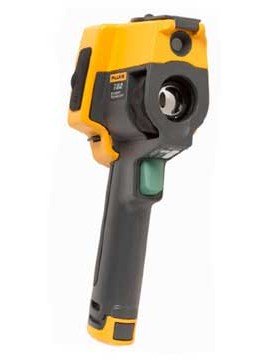

Fluke TiR32 Thermal Imager

Model: TiR32-60Hz

For Building Diagnostics. Features a 320 x 240 60Hz infrared detector with 0.04°C thermal sensitivity and a -20 to 150°C (-4 to 302°F) temperature measurement range with IR Fusion image blending.

Sorry! This product has been discontinued.

The Fluke TiR32 Thermal Imager has been discontinued, it has been replaced by the Fluke Ti32 Thermal Imager


Fluke TIR32-60HZ Offers

The P3 Series is comprised of some of superior Building Diagnostic Thermal Imagers, making it simple and efficient to capture images and analyze data.


  • Its Focal Plane Array (FPA) uncooled microbolometer detector gives an IR resolution of 320 X 240, capturing a detailed image displaying all problematic areas clearly in 76, 800 pixels
  • Thermal sensitivity of ≤0.04°C makes finding any problems quick and simple
  • Optimized for measuring temperatures ranging from -4°F to 302°F (-20°C to 150°C)
  • Offers the sharpest images in the industry thanks to its combination or thermal sensitivity, spatial resolution and high definition display
  • Its one handed easy-to-use interface helps to navigate all the controls with just the simple use of your thumb
  • Comes with Fluke's own patented IR-Fusion® Technology, allowing you to blend visual and infrared images together for easier and a curate analysis of the problem at hand.


  • Building Diagnostic: Monitor Building problems, defects and general building maintenance.
  • Green Energy: Energy audit, building inspection and weatherization
  • Moisture Detection: Detect any form of moisture intrusion in walls or ceilings and help prevent water damage
Temperature measurement range (not calibrated below -10 °C) -20 °C to +150 °C (-4 °F to +302 °F)
Temperature measurement accuracy ± 2 °C or 2 % (at 25 °C nominal, whichever is greater)
On-screen emissivity correction Yes
On-screen reflected background temperature compensation Yes
On-screen transmission correction Yes
Imaging performance
Detector type 320 X 240 Focal Plane Array, uncooled microbolometer
Thermal sensitivity (NETD) ? 0.04 degrees C and 40 mK
Total Pixels 76,800
Infrared spectral band 7.5 ?m to 14 ?m (long wave)
Visual (visible light) camera Industrial performance 2.0 megapixel
Minimum focus distance 46 cm (approx. 18 in)
Standard infrared lens type
  • Field of view : 23 ° x 17 °
  • Spatial resolution (IFOV) : 1.25 mRad
  • Minimum focus distance : 15 cm (approx. 6 in)
Optional telephoto infrared lens type
  • Field of view : 11.5 ° x 8.7 °
  • Spatial resolution (IFOV) : 0.63 mRad
  • Minimum focus distance : 45 cm (approx. 18 in)
Optional wide-angle infrared lens type
  • Field of view : 46 ° x 34 °
  • Spatial resolution (IFOV) : 2.50 mRad
  • Minimum focus distance : 7.5 cm (approx. 3 in)
Focus mechanism Manual, one-handed Smart Focus capability
Image presentation
Palettes Standard : Ironbow, Blue-Red, High Contrast, Amber, Amber Inverted, Hot Metal, Grayscale, Grayscale Inverted
Ultra Contrast™ : Ironbow Ultra, Blue-Red Ultra, High Contrast Ultra, Amber Ultra, Amber Inverted Ultra, Hot Metal Ultra, Grayscale Ultra, Grayscale Inverted Ultra
Level and span Smooth auto-scaling and manual scaling of level and span
Fast auto toggle between manual and auto modes Yes
Fast auto-rescale in manual mode Yes
Minimum span (in manual mode) 2.0 °C (3.6 °F)
Minimum span (in auto mode) 3 °C (5.4 °F)
IR-Fusion® information
Automatically aligned (parallax corrected) visual and IR blending Yes
Picture-In-Picture (PIP) Three levels of on-screen IR blending displayed in center of LCD
Full screen infrared Three levels of on-screen IR blending displayed in center of LCD
Color alarms (temperature alarms) Dewpoint temperature alarm (user-selectable)
Image capture and data storage
Voice annotation 60 seconds maximum recording time per image; reviewable playback on imager
The Ti32 allows user to adjust palette, blending, level, span, IR-Fusion® mode, emissivity, and reflected background temperature compensation, and transmission correction on a captured image before it is stored.
Image capture, review, save mechanism One-handed image capture, review, and save capability
Storage medium SD Memory Card (2 GB memory card will store at least 1200 fully radiometric (.is2) IR and linked visual images each with 60 seconds voice annotations, or 3000 basic bitmap (.bmp) images, or 3000 jpeg (.jpeg) images; transferrable to PC via included multi-format USB card reader
File formats Non-radiometric (.bmp) or (.jpeg) or fully-radiometric (.is2) No analysis software required for non-radiometric (.bmp and .jpeg) files
Export file formats w/SmartView® software JPEG, JPG, JPE, JFIF, BMP, GIF, DIB, PNG, TIF, and TIFF
Memory review Thumbnail view navigation and review selection
General specifications
Operating temperature -10 °C to +50 °C (14 °F to 122 °F)
Storage temperature -20 °C to +50 °C (-4 °F to 122 °F) without batteries
Relative humidity 10 % to 95% non-condensing
Display 9.1 cm (3.6 in) diagonal landscape color VGA (640 x 480) LCD with backlight (selectable bright or auto)
Controls and adjustments
  • User selectable temperature scale (°C/°F)
  • Language selection
  • Time/Date set
  • Emissivity selection
  • Reflected background temperature compensation
  • Transmission correction
  • User selectable hot spot and cold spot, and center point on the image (other custom markers and shapes in SmartView® software)
  • High temperature alarm
  • User selectable backlight: “Full Bright or “Auto
  • Information display preference
Software SmartView® full analysis and reporting software included
Batteries Two lithium ion rechargeable smart battery packs with five-segment LED display to show charge level
Battery life Four+ hours continuous use per battery pack (assumes 50 % brightness of LCD)
Battery charge time 2.5 hours to full charge
AC battery charging Two-bay ac battery charger (110 V ac to 220 V ac, 50/60 Hz) (included), or in-imager charging. AC mains adapters included. Optional 12 V automotive charging adapter.
AC operation AC operation with included power supply (110 V ac to 220 V ac, 50/60 Hz). AC mains adapters included.
Power saving Sleep mode activated after five minutes of inactivity, automatic power off after 30 minutes of inactivity
Safety standards IEC 61010-1: Cat None, Pollution degree 2
Electromagnetic compatibility Meets all applicable requirements in EN61326-1:2006
C Tick IEC/EN 61326-1
US FCC CFR 47, Part 15 Class B
Vibration 0.03 g2/Hz (3.8 grms), IEC 68-2-6
Shock 25 g, IEC 68-2-29
Drop 2 meter (6.5 feet) with standard lens
Dimensions (H x W x L) 27.7 cm x 12.2 cm x 17.0 cm (10.9 in x 4.8 in x 6.7 in)
Weight (battery included) 1.05 kg (2.3 lb)
Enclosure rating IP54 (protected against dust, limited ingress; protection against water spray from all directions)
Warranty Two-years (standard)
Recommended calibration cycle Two-years (assumes normal operation and normal aging)
Supported Languages Czech, English, Finnish, French, German, Italian, Japanese, Korean, Polish, Portuguese, Russian, Simplified Chinese, Spanish, Swedish, Traditional Chinese, and Turkish
Click here for complete specifications on the Fluke TiR32-60Hz

Fluke SmartView® software is included with all Fluke Thermal Imagers. This powerful software provides a suite of tools that views, optimizes, annotates, and analyzes IR images. It also generates fully customizable and professional-looking reports with the push of a button or in a few easy steps. The Fluke SmartView software is not only easy to use for customers with basic needs, but it also delivers the performance that advanced users require for detailed analysis and reporting.

Fluke SmartView enhances your thermal images:

Image viewing and optimization

  • Displays an array of open images for convenient viewing and analysis
  • Displays the temperature at any given point
  • Optimize images by adjusting level & span, image parameters, add markers, and more!

Extensive annotation possibilities

  • Add annotations to images in the camera or in the PC software
  • Input information such as locations, problem description, recommended actions, and other notes
  • Reference images can be linked together for good/bad and before/after analysis
  • Annotations can be automatically included in reports
  • Review voice annotations captured in the field by the imager

Detailed analysis and total image control

  • A complete set of marker tools are provided (Hot and Cold points, user defined markers, etc.)
  • Use 3D-IR™ to view images from different perspectives, identify additional problems, and eliminate false positives the ultimate analysis tool for your digital infrared thermal imaging needs
  • IR-Fusion®: Five viewing modes enable image optimization based on application needs

Simplified report generation

  • Generate professional customized reports fast
  • One-click report generation for a quick result
  • Choice of features including before/after, IR plus visible light, annotations, supporting data and graphics
  • Report wizard guides the user through advanced report generation

System requirements

  • Windows ® XP SP2/Vista/7
  • A web browser for product registration and web updates. Internet Explorer 5.0 or newer
  • 512 MB of RAM minimum (1 GB for Vista or 7)
  • 360 MB of hard disk space for product installation
  • 16-bit color, 1024 x 768 resolution video or better
  • Color printer for printing the images
  • CD-ROM drive (for installing SmartView software)
