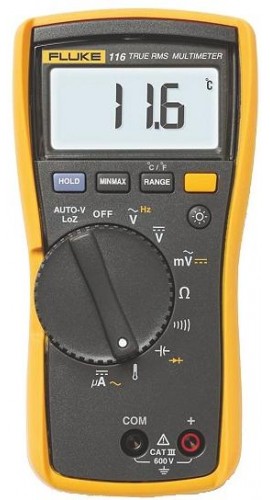

Fluke 116 HVAC Multimeter

Model: 116

HVAC Multimeter with Temperature and Microamps (TRMS, Backlight, 600V, Ohms, Continuity).

Add In House NIST Traceable Calibration to your 116

Clear selected options


$161.99 USD

was $179.99

6 in Stock






Designed by electricians. Engineered by Fluke.

The Fluke 116 HVAC Multimeter features temperature and microamps measurements useful for heating, ventilation, air conditioning and refrigeration (HVAC/R) technicians. The Fluke 116 is a compact true-rms meter and has everything needed in an HVAC meter including temperature and microamp measurements to quickly troubleshoot problems with HVAC equipment and flame sensors.

The Fluke 116 also, has dual impedance capability: incorporating both regular high impedance test capabilities and low impedance functions for detecting ghost voltages, just switch to the Auto-V/LoZ (low impedance) test setting to whether measurement is a ghost voltage.

  • Auto-V stands for automatic volts. This feature automatically determines whether the measured signal is ac voltage or dc voltage, selects the correct function and range, and displays the correct information.
  • LoZ stands for Low Impedance (Z). This feature presents a low impedance input to the circuit under test. This reduces the possibility of false readings due to ghost voltages and improves accuracy when testing to determine absence or presence of voltage.

Also check out the Fluke 114 Electrical Multimeter, the Fluke 115 Multimeter, and the Fluke 117, the Electrician's Multimeter with Non-contact voltage.

What's Included

  • 4 mm silicone test lead set
  • 80BK Integrated Temperature probe
  • Holster
  • Installed 9 V battery
  • User manual

Key Features

  • Analog Bargraph
  • Auto Power Off
  • Auto Ranging
  • Backlight
  • Capacitance
  • Continuity
  • Counts 6000 counts
  • Counts 6000
  • Current AC ac amps: 200
  • Current DC dc amps: 200
  • Dangerous Voltage Indicator
  • Diode Test
  • Display Hold
  • Frequency 50
  • Low Battery Indicator
  • Low Input Impedance
  • Manual Ranging
  • Micro Amps
  • Min/Max min/max/avg
  • Min/Max/Avg
  • Resistance 40
  • Temperature
  • True RMS
  • Voltage AC ac volts: 600
  • Voltage DC dc volts: 600
Specifications
Maximum voltage between any terminal and earth ground 600 V
Surge protection 6 kV peak per IEC 61010-1 600 VCAT III, Pollution Degree 2
Display Digital: 6,000 counts, updates 4 per second
Bar graph 33 segments, updates 32 per second
Operating Temperature -10 °C to + 50 °C
Storage Temperature -40 °C to + 60 °C
Battery type 9 volt Alkaline, NEDA 1604A/ IEC 6LR61
Battery Life 400 hours typical, without backlight
Accuracy Specifications
DC millivolts Range/Resolution 600.0 mV / 0.1 mV
Accuracy ± ([% of reading] + [counts]): 0.5% + 2
DC volts Range/Resolution 6.000 V / 0.001 V
60.00 V / 0.01 V
600.00 V / 0.1 V
Accuracy ± ([% of reading] + [counts]): 0.5% + 2
Auto volts Range/Resolution 600.0 V / 0.1 V
Accuracy 2.0 % + 3 (dc, 45 Hz to 500 Hz)
4.0 % + 3 (500 Hz to 1 kHz)
AC millivolts1 true-rms Range/Resolution 600.0 mV / 0.1 mV
Accuracy 1.0 % + 3 (dc, 45 Hz to 500 Hz)
2.0 % + 3 (500 Hz to 1 kHz)
AC volts1 true-rms Range/Resolution 6.000 V / 0.001 V
60.00 V / 0.01 V
600.0 V / 0.1 V
Accuracy 1.0 % + 3 (dc, 45 Hz to 500 Hz)
2.0 % + 3 (500 Hz to 1 kHz)
Continuity Range/Resolution 600 Ω / 1 Ω
Accuracy Beeper on < 20 Ω, off > 250 Ω; detects opens or shorts of
500 µs or longer.
Ohms Range/Resolution 600.0 Ω / 0.1 Ω
6.000 kΩ / 0.001 kΩ
60.00 kΩ / 0.01 kΩ
600.0 kΩ / 0.1 kΩ
6.000 MΩ / 0.001 MΩ
Accuracy 0.9 % + 1
Range/Resolution 40.00 MΩ / 0.01 MΩ
Accuracy 5 % + 2
Diode Test Range/Resolution 2.00 V / 0.001 V
Accuracy 0.9% + 2
Capacitance Range/Resolution 1000 nF / 1 nF
10.00 µF / 0.01 µF
100.0 µF / 0.1 µF
9999 µF / 1 µF
100 µF to 1000 µF
Accuracy 1.9% + 2
Range/Resolution > 1000 µF
Accuracy 5% + 20%
Lo-Z Capacitance Range 1 nF to 500 µF
Accuracy 10% + 2 typical
Temperature2
(Type-K thermocouple)
Range/Resolution -40 °C to 400 °C / 0.1 °C
Accuracy 1% + 102
Range/Resolution -40 °F to 752 °F / 0.2 °F
Accuracy 1% + 182
AC µA true-rms (45 Hz to 500 Hz) Range/Resolution 600.0 µA / 0.1 µA
Accuracy 1.5% + 3
DC µamps Range/Resolution 600.0 µA / 0.1 µA
Accuracy 1.0% + 2
Hz (V or A input)2 Range/Resolution 99.99 Hz / 0.01 Hz
999.99 Hz / 0.1 Hz
9.999 Hz / 0.001 Hz
50.00 Hz / 0.01 Hz
Accuracy 0.1% + 2
Click here for complete specifications on the Fluke 116
