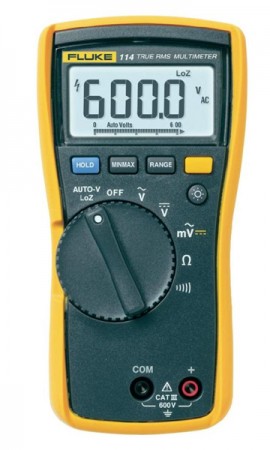

Fluke 114 Electrical Multimeter

Fluke 114 Electrical Multimeter
  • HVAC/R Multimeter
  • AutoVolt, TRMS, LoZ
  • Analog bargraph & backlight
  • Cat III 600V Safety Rated

Part Number:
FE 114/EFSP
In Stock?
Please call for availability.

Quantity

Price:
$133.95 USD (change)



Designed by electricians. Engineered by Fluke.

Compact true-rms meter for electrical troubleshooting.  The Fluke 114 is a battery-powered, true-rms multimeter the perfect troubleshooting tool for “go/no-go” testing.  It includes a feature to prevent false readings caused by ghost voltage.

Also check out the Fluke 115 Multimeter, the Fluke 116 HVAC Multimeter with Temperature and Microamps, and the Fluke 117, the Electrician’s Multimeter with Non-contact voltage.


What's Included:

  • Holster
  • Installed 9 V battery
  • Test leads
  • User manual
The Good:


The Bad:


The Bottom Line:

Full Review

  • Analog Bargraph
  • Auto Power Off
  • Auto Ranging
  • Automatic AC/DC Voltage Selection
  • Backlight
  • Continuity
  • Counts 6000 counts
  • Counts 6000
  • Dangerous Voltage Indicator
  • Display Hold
  • Low Battery Indicator
  • Low Input Impedance
  • Manual Ranging
  • Min/Max min/max/avg
  • Min/Max/Avg
  • Resistance 40
  • True RMS
  • Voltage AC ac volts: 600
  • Voltage DC dc volts: 600
Battery Life400 hours typical without backlight
Battery Type9v
CAT III Rating600v
Dimensions167 x 84 x 46 mm (6.57 x 3.31 x 1.82)
Operating Temperature-10 °c to + 50 °c
Resistance Accuracy0.9 % + 2 counts
Storage Temperature-40 °c to + 60 °c
Voltage AC Accuracy1.0 % + 3 counts
Voltage DC Accuracy0.5% + 2 counts
Warranty3 years
Weight550 g

Product brochures

Fluke 114 Digital Multimeter Datasheet

Case studies

Fluke Data Loggers - Is That a Tingle She Feels - A Lesson in Data Logging from Down on the Farm Technology at Work
Fluke meters helped FDNY find hot wires after attack

Safety

Fluke Current Clamp Meters - You Can Guess Which Fuse is Bad or You Can Try This Application Note
Fluke Digital Multimeters - 10 Dumb Things Smart People Do When Testing Electricity Application Note
Fluke Multimeters - ABCs of Multimeter Safety Multimeter Safety and You Application Note
Fluke Multimeters - Anatomy of a High Quality Meter Application Note

Technical training

Picking the right meter for the job
Why calibrate test equipment

Troubleshooting hints & tips

Fluke Digital Multimeters - For This AV Engineer Appearances are Not Deceiving Application Note
Fluke Multimeters - Electricial Measurements on Adjustable Speed Drives Application Note

Product manuals

Fluke 114,115,117 Manual
