Fluke 1735 Portable Power Logger

Model: 1735

Portable three phase power logger designed for energy monitoring and load studies. Large graphical display for instant viewing of results and easy on-screen setup. Ships complete with switchable-range 3000A flexible current transformers and software.

Sorry! This product has been discontinued.


The Fluke 1735 Portable Power Logger has been discontinued, it has been replaced by the Fluke 1736 3-Phase Energy Logger, EU/US





Electrical load studies, energy consumption testing, and general power quality logging

The Fluke 1735 Power Logger is the ideal electrician or technician's power meter for conducting energy studies and basic power quality logging. Set the Power Logger up in seconds with the included flexible current probes and color display. The power quality meter measures most electrical power parameters, harmonics, and captures voltage events.


Key Features

  • Record power and associated parameters for up to 45 days
  • Monitor maximum power demand over user-defined averaging periods
  • Prove the benefit of efficiency improvements with energy consumption tests
  • Measure harmonic distortion caused by electronic loads
  • Improve reliability by capturing voltage dips and swells from load switching
  • Easily confirm instrument setup with color display of waveforms and trends
  • Measure all three phases and neutral with included 4 flexible current probes
  • View graphs and generate reports with included Power Log software
  • Compact, rugged design with IP65 case, 600 V CAT III and two-year warranty

Applications

  • Load studies - verify electrical system capacity before adding loads
  • Energy assessments - quantify energy consumption before and after improvements to justify energy saving devices
  • Harmonics measurements - uncover harmonic issues that can damage or disrupt critical equipment
  • Voltage event capture - monitor for dips and swells that cause spurious resets or nuisance circuit breaker tripping

Log the most common parameters

Designed to measure the most critical three-phase power parameters, the 1735 can log rms voltage, rms current, phase angle, voltage events, voltage and current THD, voltage and current harmonics up to the 50th, active power, reactive power, power factor, active energy, reactive energy, and more. With memory for up to 45 days of data, the 1735 can uncover intermittent or hard-to-find issues.

Easy to use

The four current probes are connected with one plug, the instrument automatically detects, scales and powers the probes. These variable range current probes are easily set to 15 A, 150 A, or 3000 A for high accuracy in nearly any application. The voltage connections are single leads, enabling easy and quick setups. The color screen provides instant confirmation that connections are correct, and then logging begins when you press the RECORD button.

Generate reports and view graphs with Fluke Power Log Software

Designed to quickly view recorded data, the included Power Log software displays all recorded parameters on interactive trends. Generate a professional report with the 'Report Writer' function, or copy and paste images into report document manually.

Fluke 1735 Power Meter Application

Conduct load studies for up to 45 days and view saved data on-screen or on a computer.

Fluke 1735 Power Meter Application

Quantify energy consumption quickly on-screen or log to memory for extended periods.

Fluke 1735 Power Meter Application

Assess voltage and current harmonics up to the 50th.

Fluke 1735 Power Meter Application

Capture voltage events using user-defined thresholds.

Fluke 1735 Power Meter Application

View waveforms onscreen to uncover waveform distortion and to verify correct voltage and current connections.

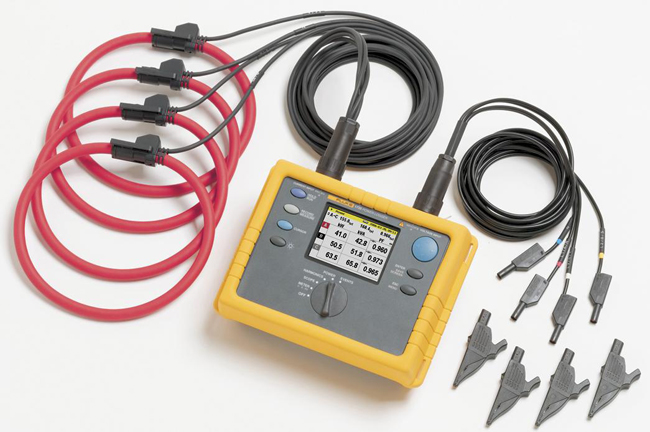

What is Included with the Fluke 1735 Power Meter

What's Included:

  • Includes soft carrying case
  • 4 flexible current probes (15 A/150 A/3000 A)
  • Power Log software
  • Voltage leads and clips
  • Color localization set
  • PC interface cable
  • International ac adapter (115/230 V, 50/60 Hz)
  • Printed English manual
  • Multi-language manual CD

Specifications

General
Display ¼ VGA Graphic Color transmissive displays 320 x 240 Pixel with additional background lighting and adjustable contrast, text and graphics in color
Quality Developed, designed and manufactured according to DIN ISO 9001
Memory 4 MB Flash memory, 3.5 MB for measuring data
Interface RS-232 SUB-D socket; 115.2 k Baud, 8 data bits, no parity, 1 stop bit, firmware updates are possible with the RS- 232 interface (9-pole extension cable)
Sample rate 10.24 kHz
Line frequency 50 Hz or 60 Hz, user-selectable, with automatic synchronization
Power supply NiMH battery-pack, with ac adapter (15 V to 20 V/0.8 A)
Operation time with battery Typical > 12 hours without backlight and > 6 hours with backlight high
Dimensions 240 mm x 180 mm x 110 mm
Weight 1.7 kg, including battery
Ambient conditions
Working temperature range -10 °C to +50 °C
Storage temperature range -20 °C to +60 °C
Operating temperature range 0 °C to +40 °C
Reference temperature range 23 °C ± 2 °C
Note The above terms are defined in European Standards. To calculate the specification at any point in the working temperature range, use the temperature coefficient below.
Temperature coefficient ± 0.1 % of the measured value per °C from the reference
Intrinsic error Refers to reference temperature, maximum deviation is guaranteed for two years
Operating error Refers to operating temperature range, maximum deviation is guaranteed for two years
Climatic class C1 (IEC 654-1) -5 °C to +45 °C, 5% to 95% RH, no dew
Housing Cycoloy shock and scratch proof thermoplast V0-type (non-flammable) with rubber protection holster
EMC
Emission IEC/EN 61326-1:1997 class B
Immunity IEC/EN 61326-1:1997
Safety
Safety IEC 61010-1 600 V CAT III, double or reinforced insulation, pollution degree 2
Protection IP65; EN60529 (refers only to the main housing without the battery compartment)
RMS values are measured with a 20 ms resolution.
V-rms wye measurement
Measuring range 57 V/66 V/110 V/120 V/127 V/220 V/230 V/240 V/260 V/277 V/347 V/380 V/400 V/417 V/480 V ac
Intrinsic error ± (0.2% of measured value + 5 digits)
Operating error ± (0.5% of m. v. + 10 digit)
Resolution 0.1 V
V-rms delta measurement
Measuring range 100 V/115 V/190 V/208 V/220 V/380 V/400 V/415 V/450 V/480 V/600 V/660 V/690 V/720 V/830 V ac
Intrinsic error ± (0.2% of m. v. + 5 digit)
Operating error ± (0.5 % of m. v. + 10 digit)
Resolution 0.1 V
A-rms measurement
Flexi set I ranges 15 A/150 A/3000 A rms (at sine)
Current clamp ranges 1 A/10 A
Resolution 0.01 A
Ranges 150 A/3000 A and 1 A/10 A
Intrinsic error ± (0.5 % of m. v. + 10 digit)
Operating error ± (1 % of m. v. + 10 digit)
Ranges 15 A
Intrinsic error ± (0.5 % of m. v. + 20 digit)
Operating error ± (1 % of m. v. + 20 digit)
The errors of the current probes are not considered.
By using Flexi-Set
Flexi Set measuring error ± (2% of m. v. + 10 digit)
Position influence ± (3 % of m. v. + 10 digit)
CF (typical) 2.83
Note When using Flexi Set please make sure to position the conductor opposite to the Flexi Set-lock
Power measurement (P - Active, S - Apparent, Q- reactive, D - Distorting
Measuring range see V rms and A rms measurement
Power errors are calculated by adding the errors of voltage and current
Additional error due to power factor PF
Specified error x (1-[PF])
Maximum range with voltage range 830 V delta-connection and 3000 A current range is 2.490 MW, higher displayed values possible when using PTs and CTs with ratio feature
Intrinsic error ± (0.7 % of m.v. +15 digit)
Resolution 1 kW
Operating error ± (1.5 % of m.v. + 20 digit)
Typical range with voltage range 230 V wye connection and 150 A current range is 34.50 KW.
Intrinsic error ± (0.7 % of m.v. +15 digit)
Resolution 1 W to 10 W
Operating error ± (1.5 % of m.v. + 20 digit)
The errors of the current sensors themselves have not been considered.
Energy measurement (kWh, KVAh, kVARh)
Intrinsic error ± (0.7 % of m.v.+ F variation error* + 15 digit)
Resolution 1 W to 10 W
Operating error ± (1.5 % of m.v. + F variation error* + 20 digit)
*Frequency variation error
PF (Power factor)
Range 0.000 to 1.000
Resolution 0.001
Accuracy ±1 % of full scale
Frequency measurement
Measuring range 46 Hz to 54 Hz and 56 Hz to 64 Hz
Intrinsic error ± (0.2 % of m. v. + 5 digit)
Operating error ± (0.5 % of m. v.+ 10 digit)
Resolution 0.01 Hz
Harmonics
Measuring range To 50th harmonic (< 50 % of nom)
Accuracy
Vm, Im, THDV, THDI IEC 61000-4-7:2002, Class II
Vm > 3% Vn ± 5% Vm
Vm < 3 % Vnom ±0.15% Vnom
Im > 10 % Inom ± 5% Im
Im < 10 % Inom ± 0 5% Inom
THDV for THD < 3% ± 0.15% at Vnom
for THD > 3% ± 5% at Vnom
THDI for THD < 10% ± 0.5% at Inom
for THD > 10% ± 5% at Inom
Vnom Normal voltage range
Inom Nominal current range
Vm and Im are measured values of harmonic m
Events
Detection of voltage dips, voltage swells and voltage interruptions with a 10 ms resolution and measuring error of the half period sine wave of rms.
Intrinsic error ± (1% of m.v. + 10 digit)
Operating error ± (2% of m.v. + 10 digit)
Resolution 0.1 V
Click here for complete specifications on the Fluke 1735
