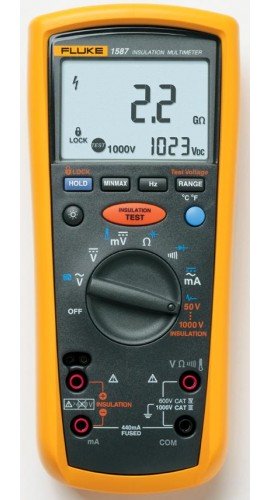

Fluke 1587 Insulation Multimeter

Model: 1587

Advanced multi-functional digital multimeter with built-in insulation testing functions make this the ideal all-round tool for troubleshooting, commissioning and maintenance.

Sorry! This product has been discontinued.


The Fluke 1587 Insulation Multimeter has been discontinued, it has been replaced by the Fluke 1587 FC Insulation Multimeter





The Fluke 1587 Insulation Multimeter combines a digital insulation tester with a full-featured, true-rms digital multimeter in a single compact, handheld unit, which provides maximum versatility for both troubleshooting and preventative maintenance.

Like other tools that you have come to expect from Fluke, the 1587 is rugged, reliable, and easy to use.

Whether you work on motors, generators, cables, or switch-gear, the Fluke 1587 Insulation Multimeter is ideally suited to help you with your tasks.


What's Included

  • Remote probe
  • Test leads
  • Alligator clips
  • Hard case
  • User documentation

Key Features

  • Insulation test voltages 50V, 100V, 250V, 500V, 1000V
  • Insulation test: 0.01 MΩ to 2.0 GΩ
  • Auto discharge of capacitive voltage
  • Insulation test smoothing reading
  • Frequency
  • Capacitance
  • Diode test
  • Temperature
  • Min/Max
  • Low pass filter (for work on VSD's)
  • AC/DC Voltage
  • DC millivolts
  • AC/DC milliamps
  • Resistance (0.1 Ω to 50 MΩ)
  • Continuity
  • Three-year warranty
  • Remote probe, test leads, alligator clips
  • K-type thermocouple
  • Rugged, utility hard case
  • Auto power off to save battery power
  • True-rms
  • Large display with backlight
  • Live circuit detection prevents insulation test if voltage > 30 V is detected for added user protection
  • CAT III 1000V, CAT IV 600V measurement category
  • Accepts optional Fluke TPAK™ magnetic hanging system to free your hands for other work

Specifications

Voltage DC
Maximum Voltage 1000 V
Accuracy ±(0.2%+2)
Maximum Resolution 0.001V
Voltage AC
Maximum Voltage 1000 V
Accuracy ±(2%+3)
Maximum Resolution 0.1 mV
Current DC
Maximum Amps 400mA
Amps Accuracy ±(1.0%+2)
Maximum Resolution 0.01 mA
Current AC
Maximum Amps 400mA
Amps Accuracy ±(2.0%+2) 1kHz bandwidth
Maximum Resolution 0.01 mA
Resistance
Maximum Resistance 50 MΩ
Accuracy ±(1.2%+2)
Maximum Resolution 0.1Ω
Insulation Test
Minimum Test Current @ 1kΩ/V 1mA
Test Voltages 500, 1000 V
Maximum Resistance per Test Voltage 100V: 600 MΩ
Maximum Resolution per Test Voltage 50V: 0.01 MΩ 100V: 0.01 MΩ 250V: 0.1 MΩ 500V: 0.1 MΩ 100V: 0.1 MΩ
Accuracy per Test Voltage 50V: ±(3 % + 5) 100V: ±(3 % + 5) 250V: ±(1.5 % + 5) 500V: ±(2.0 % + 5) 100V: ±(2.0 % + 5)
Environmental Specifications
Operating temperature –20 °C to +55 °C
Storage temperature -40°C to +60°C
Humidity (Without Condensation) 0% - 95% (10 °C – 30 °C) 0% - 75% (30 °C – 40 °C) 0% - 40% (40 °C – 55 °C)
Operating Altitude 2000 m
Safety Specifications
Overvoltage category Complies with ANSI/ISA 82.02.01 (61010-1) 2004, CAN/CSA-C22.2 NO. 61010-1-04, and IEC/EN 61010-1 2nd Edition for measurement CAT III 1000 V and CAT IV 600 V
Agency Approvals 2000 m CAT III 1000 V, CAT IV 600 V; 3000 m CAT II 1000 V, CAT III 600 V
Mechanical & General Specifications
Size 203 x 100 x 50 mm (with holster)
Weight 624 g
Warranty 3 years
Battery life Alkaline Meter use 1000 hours
Insulation test use Meter can perform at least 1000 insulation tests with fresh alkaline batteries at room temperature. These are standard tests of 1000 V into 1 MΩ with a duty cycle of 5 seconds on and 25 seconds off.
IP Rating IP40
Click here for complete specifications on the Fluke 1587
