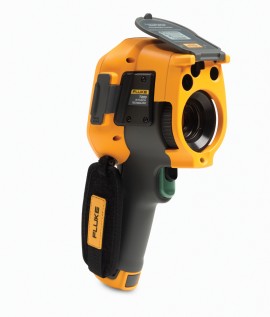

Fluke Ti300 9hz Thermal Imager

Model: FLK-TI300 9HZ | Order No: TI300-9HZ

Professional 9Hz 240X180 Thermal Imager, equipped with new LaserSharp™ Auto Focus. The Ti300 features wireless connectivity compatible with Fluke Connect.

Sorry! This product has been discontinued.

The Fluke Ti300 9hz Thermal Imager has been discontinued, it has been replaced by the Fluke Ti300 60hz Thermal Imager


Fluke Ti300 Advanced Performance Infrared Camera

A new generation of tools with next generation performance.

The Newest Fluke infrared camera, equipped with LaserSharp™ Auto Focus. Every infrared camera user knows that focus is the single most important thing to ensure when conducting an infrared inspection. Without an in-focus image temperature measurements may not be accurate and it's much easier to miss a problem. LaserSharp auto focus tells you exactly where you are focusing. It uses a laser to calculate the distance to your target before it focuses. Place the red laser dot on the object you are inspecting, then pull and release the trigger for a perfect in-focus image.

New SmartView® Mobile App

ring your office to your inspection site with the SmartView Mobile App. Create an inspection report on site and communicate directly to your client or manager via your Apple® iPhone® or iPad®.

Optimize: Adjust the image to present problems in the most effective way.

Analyze: Use markers and other tools to quantify the severity of problems.

Communicate: Share inspection results by emailing images or reports to:

  • Plan next steps or gain approval for work done before you even leave the job site
  • If needed, get assistance analyzing the problem

Fluke SmartView Mobile will increase the return on your infrared camera investment.

Capture up to five additional measurements wirelessly.

A free firmware update to help find problems fast will allow you to capture up to 5 additional measurements by enabling the CNX™ Wireless system* on your thermal imager. These additional measurements help diagnose problems faster and provide additional data to create more comprehensive reports.

Field installable telephoto and wide angle lenses are available for added versatility for special applications and voice annotation makes pen and paper no longer necessary.

What's Included with the Ti300:

  • Thermal imager with standard infrared lens
  • AC power supply and battery pack charger (including mains adapters)
  • Two, rugged lithium ion smart battery packs
  • Micro SD memory card with SD adapter
  • 3m USB cable
  • 3m HDMI video cable
  • SmartView® software with free software upgrades for life
  • Rugged, hard carrying case
  • Soft transport bag
  • Adjustable hand strap
  • Printed user's manual (five languages)
  • CD user's manual
  • Warranty registration card


  • Capture up to five additional measurements with CNX™ Wireless System for more complete analysis and reporting*
  • Detect and communicate issues faster with patented Fluke IR-Fusion® technology with AutoBlend™ mode
  • Faster communication with wireless image transfer directly to your PC, Apple® iPhone® or iPad®
  • One-handed, easy-to-use user interface
  • Ruggedized high resolution 640x480 capacitive touch screen for quick menu navigation
  • Capture additional digital images to show location or additional site details with IR-PhotoNotes™ Annotation System
  • Standard and radiometric video recording*
  • Streaming video (USB and HDMI)
  • Text* and voice recording and annotation gets additional details saved with the image file
  • Optional interchangeable lenses for greater flexibility in additional applications
  • High-temperature measurement (up to 1200 °C on the Ti400)
  • Included SmartView® and SmartView Mobile App Analysis and Reporting Software
Fluke Ti200 Fluke Ti300 Fluke Ti400
Temperature measurement range (not calibrated below -10 °C) -20 °C to +1200 °C (-4 °F to +2192 °F) -20 °C to +650 °C (-4 °F to +1202 °F)
Temperature measurement accuracy ± 2 °C or 2 % (at 25 °C nominal, whichever is greater)
On-screen emissivity correction Yes (by number and table)
On-screen reflected background temperature compensation Yes
On-screen transmission correction Yes
Imaging performance
Image capture frequency 9 Hz refresh rate or 60 Hz refresh rate depending upon model variation
Detector type Focal Plane Array, uncooled microbolometer, 320 x 240 pixels Focal Plane Array, uncooled microbolometer, 240 X 180 pixels Focal Plane Array, uncooled microbolometer, 200 X 150 pixels
Thermal sensitivity (NETD) < 0.05 °C at 30 °C target temp (50 mK) < 0.075 °C at 30 °C target temp (75 mK)
Total pixels 76,800 43,200 30,000
Infrared spectral band 7.5 ?m to 14 ?m (long wave)
Visual (visible light) camera Industrial performance 5.0 megapixel
Standard infrared lens type
Field of view 24 ° x 17 °
Spatial resolution (IFOV) 1.31 mRad 1.75 mRad 2.09 mRad
Minimum focus distance 15 cm (approx. 6 in)
Optional telephoto infrared lens type
Field of view 12 ° x 9 °
Spatial resolution (IFOV) 0.65 mRad 0.87 mRad 1.05 mRad
Minimum focus distance 45 cm (approx. 18 in)
Optional wide-angle infrared lens type
Field of view 46 ° x 34 °
Spatial resolution (IFOV) 2.62 mRad 3.49 mRad 4.19 mRad
Minimum focus distance 15 cm (approx. 6 in)
Focus mechanism
LaserSharp™ Auto Focus System Yes
Advanced Manual Focus Yes
Image presentation
Standard Ironbow, Blue-Red, High Contrast, Amber, Amber Inverted, Hot Metal, Grayscale, Grayscale Inverted
Ultra Contrast™ Ironbow Ultra, Blue-Red Ultra, High Contrast Ultra, Amber Ultra, Amber Inverted Ultra, Hot Metal Ultra, Grayscale Ultra, Grayscale Inverted Ultra
Level and span Smooth auto-scaling and manual scaling of level and span
Fast auto toggle between manual and auto modes Yes
Fast auto-rescale in manual mode Yes
Minimum span (in manual mode) 2.0 °C (3.6 °F)
Minimum span (in auto mode) 3.0 °C (5.4 °F)
IR-Fusion® information
Picture-In-Picture (PIP) Yes
Full screen infrared Yes
AutoBlend™ mode Yes
Color alarms (temperature alarms) High-temperature , low-temperature, and isotherm (user-selectable)
Image capture and data storage
Image capture, review, save mechanism One-handed image capture, review, and save capability
Storage medium Micro SD Memory Card, on-board flash memory, save-to-USB capability, direct download via USB-to-PC connection
File formats Non-radiometric (.bmp) or (.jpeg) or fully-radiometric (.is2) Video*: non-radiometric (MPEG - encoded .AVI) and fully-radiometric (.IS3)
No analysis software required for non-radiometric (.bmp, .jpg and .avi*) files
Export file formats w/SmartView® software BMP, DIB, GIF, JPE, JFIF, JPEG, JPG, PNG, TIF, and TIFF
Memory review Thumbnail view navigation and review selection
Other time-saving and productivity features
Voice annotation 60 seconds maximum recording time per image; reviewable playback on imager
IR-PhotoNotes™ Yes
Wi-Fi connectivity Yes, to PC, iPhone® , iPad® and WiFi to LAN*
Text annotation* Yes
Video recording* Standard and Radiometric
Streaming Video Via USB to PC and HDMI to HDMI compatible screen
CNX™ Wireless System* Yes*
Cardinal Compass* Yes*
Auto capture (temperature and interval)* Yes*
Remote control and operation (for special and advanced applications) Yes No No
General Specifications
Operating temperature -10 °C to +50 °C (14 °F to 122 °F)
Storage temperature -20 °C to +50 °C (-4 °F to 122 °F) without batteries
Relative humidity 10 % to 95 % non-condensing
Ruggedized Touchscreen Display (Capacitive) 8.9 cm (3.5 in) diagonal landscape color VGA (640 x 480) LCD with backlight
Controls and adjustments User selectable temperature scale (°C/°F)
Language selection
Time/Date set
Emissivity selection
Reflected background temperature compensation
Transmission correction
User selectable hot spot and cold spot, and center point on the image
Expandable-contractable Measurement Box with MIN-AVG-MAX temp
Color alarms
User selectable backlight setting
Graphical information display preference
Software SmartView® and SmartView Mobile App - full analysis and reporting software included
Batteries Two lithium ion rechargeable smart battery packs with five-segment LED display to show charge level, all models
Battery life Four+ hours continuous use per battery pack (assumes 50 % brightness of LCD and average usage)
Battery charge time 2.5 hours to full charge
AC battery charging Two-bay ac battery charger (110 V ac to 220 V ac, 50/60 Hz) (included), or in-imager charging. AC mains adapters included. Optional 12 V automotive charging adapter. All models
AC operation AC operation with included power supply (110 V ac to 220 V ac, 50/60 Hz). AC mains adapters included.
Power saving User selectable sleep and power off modes
Safety standards UL 61010-1:2012 CAN/CSA-C22.2 No.61010-1-12 IEC 61010-1 3rd Edition (2010)
Electromagnetic compatibility EN 61326-1:2006 IEC 61326-1:2005
C Tick IEC/EN 61326-1
US FCC CFR 47, Part 15 Subpart B Class B
Vibration 0.03 g2/Hz (3.8 grms), 2.5g IEC 68-2-6
Shock 25 g, IEC 68-2-29
Drop Engineered to withstand 2 meter (6.5 feet) with standard lens
Size (H x W x L) 27.7 cm x 12.2 cm x 16.7 cm (10.9 in x 4.8 in x 6.5 in)
Weight (battery included) 1.04 Kg (2.3 lb)
Enclosure rating IP54 (protected against dust, limited ingress; protection against water spray from all directions)
Warranty Two-years (standard), extended warranties are available
Recommended calibration cycle Two-years (assumes normal operation and normal aging)
Supported Languages Czech, Dutch, English, Finnish, French, German, Hungarian, Italian, Japanese, Korean, Polish, Portuguese, Russian, Simplified Chinese, Spanish, Swedish, Traditional Chinese, and Turkish
Click here for complete specifications on the Fluke FLK-TI300 9HZ
