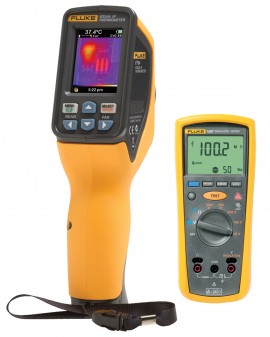

Fluke VT04-MAINT-KIT Visual IR Thermometer and Maintenance Kit


Kit Includes the VT04 Visual IR Thermometer along with a Fluke 1507 Insulation Multimeter.

Add In House NIST Traceable Calibration to your 1507

Add In House NIST Traceable Calibration to your VT04

Clear selected options

$854.96 USD

was $949.95

1 to 2 Weeks


Fluke VT04 Visual IR Thermometer HVAC Kit Includes:

Fluke VT04 Visual IR Thermometer

The VT04 Visual IR Thermometer combines the convenience of a spot thermometer with the visual advantage of a thermal imager creating a brand new tool category - a troubleshooting camera with infrared heat map.

Using hyper-thin pyroelectric technology, Fluke discovered a way to push the limits of this technology pioneering an array dense enough to create an infrared heat map. The VT04 Visual IR Thermometer is a great in-between tool for those times when a single spot temperature reading isn't enough and a high-resolution thermal image is more than you need, or can afford.

Now you can detect and capture issues instantaneously with digital and thermal blended images, pinpoint hot and cold spots with temperature markers, and document problems efficiently with SmartView® professional reporting software!

Fluke 1507 Insulation Multimeter:

With multiple test voltages, the compact Fluke 1507 Insulation Tester is ideal for many troubleshooting, commissioning, and preventative maintenance applications. Additional features, like the remote probe reduces the time needed to perform repetitive testing.

The Fluke 1507 is the best compact, lightweight, handheld insulation tester for advanced industrial and electrical insulation testing. Its full feature set offers the ability to easily and quickly perform advanced insulation resistance testing. Its handy size makes it easy to pack and use. And its reasonable price makes it an excellent value.


  • Overloaded breakers
  • Evaluate compressor heat expansion valves
  • Overheating motor
  • Unbalanced three phase supply
  • Overheating bearings
  • Combination starter
  • Faulty air damper
  • Normal operating temperature on mission critical breaker
  • Abnormal heat patterns in an AC condenser
  • Detect issues with switchgears
  • Monitor power factor correction capacitors
  • Ensure hydronic and radiant flooring is functional
  • Overheating pulley and belts
  • Identify potential heat loss from doors and windows
  • Check fans for high-powered equipment

What's Included:

  • Hard Case
  • hand strap
  • mini SD card and adapter
  • SmartView® software on CD
  • Lithium Ion batteries and Micro USB Charger/Power Supply
  • Fluke 1507 Insulation Resistance Tester

Fluke VT04 Key Features

  • Breakthrough affordability - Half the cost of infrared cameras that require training and software
  • Built-in digital camera - Every Fluke Visual IR thermometer has a built-in digital camera
  • Exclusive thermal heat map blending overlay - Blend digital and thermal images to instantly show the exact location of the issue. Blend between 0 %, 25 %, 50 %, 75 %, and full thermal with one button
  • No training required - Fully automatic with built-in intelligence
  • True pocket size design - Forty percent smaller than entry-level infrared cameras
  • SmartView® reporting software - Store up to 10,000 images per Gb on included SD card and make professional reports on included professional software
  • Hot and cold spot trackers - Automatically identifies hottest and coldest spots within field of view
  • Powerful resolution with PyroBlend™ Plus optics
    • Best-in-class field of view for tight spaces: 28° x 28°
    • Four times sharper images: VT04 compared to VT02
  • Alarm and time lapse features
    • Hi/Lo temperature alarm-Screen flashes if user-selected temperature is exceeded
    • Time lapse image capture-automatically capture images
    • Auto-monitor™ alarm-automatically capture images after a userselected temperature alarm has been triggered

Fluke 1507 Insulation Resistance Tester Features:

  • Insulation test range: 0.01 MΩ to 10 GΩ
  • Insulation test voltages: 50 V, 100 V, 250 V, 500 V, 1000 V
  • Save both time and money with Automatic calculation of Polarization Index and Dielectric Absorption Ratio
  • Make repetitive tests simple and easy with the 1507's Compare (Pass/Fail) function
  • Repetitive or hard-to-reach testing is easy with the remote test probe
  • Live circuit detection prevents insulation test if voltage > 30 V is detected for added user protection
  • Auto-discharge of capacitive voltage for added user protection
  • AC/DC voltage: 0.1 V to 600 V
  • 200 mA Continuity
  • Resistance: 0.01 Ω to 20.00 kΩ
  • Save battery power with auto power off
  • Read measurements easily with large, backlit display
  • CAT IV 600 V overvoltage category rating for added user protection
  • Remote probe, test leads, probes and alligator clips included with each tester
  • Accepts optional Fluke TPAK magnetic hanging system to free your hands for other work
  • Four AA alkaline batteries (NEDA 15 A or IEC LR6) for at least 1000 insulation tests
  • One year warranty

Fluke VT02/VT04 Comparison:

Key Features VT02 VT04
Built-in digital camera Yes Yes
Thermal heat map overlay Yes, five blending modes
Image Optics System PyroBled™ Optic
Fluke VT02 PyroBlend Optic system
PyroBlend™ Plus optic *4x sharper image than VT02
Fluke VT04 PyroBlend Optic system
Field of View 20° x 20°
Fluke VT02 PyroBlend Optic system Field of View
28° x 28°
Fluke VT04 PyroBlend Optic system Field of View
Hi-Lo temperature alarms No Yes
Time lapse image capture No Yes
Auto-monitor alarm No Yes
Battery type Four (4) AA batteries Li-Ion rechargeable
Training No training required
Ergonomics Slim pocket-sized design
Hot and cold markers Yes
General Features
Battery life Eight (8) hours
Temperature measurement range -10 °C to +250 °C (14 °F to 482 °F)
Temperature measurement accuracy +/- 2 °C or +/- 2 %
Temperature measurement Yes, centerpoint
Storage medium (micro SD card) Stores up to 10,000 images per Gb (Four (4) Gb card included)
Infrared spectral band 6.5 µm to 14 µm
Level and span Auto
Focus mechanism Focus free, no training required with built-in intelligence
Focus options-exclusive user selectable NEAR/FAR options NEAR > 23 cm (9 in); FAR < 23 cm (9 in)
Dimensions 21 cm x 7.5 cm x 5.5 (8.3 in x 3 in x 2.2 in); < 300 g. (10.5 oz.)
File format .is2 format saved to SD card. User can create professional reports or export images in SmartView (BMP, DIB, GIF, SPE, FIF, SPEG, JPG, PNG, TIF and TIFF)
Safety and compliance CFR47: 2009 Class A. Part 15 subpart B; CE: EN 61326:2006; IEC/EN 61010-1:2010
Warranty Two (2) years
