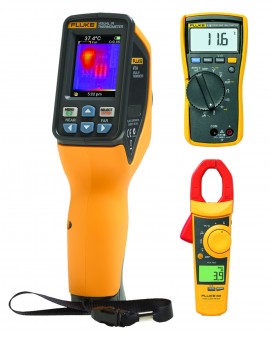

Fluke VT04-HVAC-KIT Visual IR Thermometer and HVAC Kit

Model: VT04-HVAC-KIT

Kit Includes the VT04 Visual IR Thermometer along with a Fluke 902 True-RMS HVAC Clamp Meter, and Fluke 116 Digital Multimeter.

Sorry! This product has been discontinued.

The Fluke VT04-HVAC-KIT Visual IR Thermometer and HVAC Kit has been discontinued, it has been replaced by the Fluke VT04 Visual IR Thermometer Kit - Includes FREE Products with Purchase


Fluke VT04 Visual IR Thermometer HVAC Kit Includes:

Fluke VT04 Visual IR Thermometer

The VT04 Visual IR Thermometer combines the convenience of a spot thermometer with the visual advantage of a thermal imager creating a brand new tool category - a troubleshooting camera with infrared heat map.

Using hyper-thin pyroelectric technology, Fluke discovered a way to push the limits of this technology pioneering an array dense enough to create an infrared heat map. The VT04 Visual IR Thermometer is a great in-between tool for those times when a single spot temperature reading isn't enough and a high-resolution thermal image is more than you need, or can afford.

Now you can detect and capture issues instantaneously with digital and thermal blended images, pinpoint hot and cold spots with temperature markers, and document problems efficiently with SmartView® professional reporting software!

Fluke 902 True-rms HVAC Clamp Meter

Heating, ventilation, air conditioning (HVAC) technicians require a service tool that can consistently keep up with their demands. The Fluke 902 expands the exisiting line of quality Fluke clamp meters by delivering the features necessary to diagnose and repair HVAC systems. Combined with True RMS technology and a CAT III 600 V rating, the Fluke 902 helps technicians do their jobs safely and accurately.

The new Fluke 902 True RMS HVAC Clamp Meter provides the accuracy, reliability and ruggedness that defines Fluke test tools. It is designed for HVAC technicians for the systems they service and install daily. With True RMS technology and a CAT III 600V rating, HVAC technicians can troubleshoot and maintain HVAC equipment safely and with confidence in the results.

Fluke 116 HVAC Multimeter

The Fluke 116 HVAC Multimeter features temperature and microamps measurements useful for heating, ventilation, air conditioning and refrigeration (HVAC/R) technicians. The Fluke 116 is a compact true-rms meter and has everything needed in an HVAC meter including temperature and microamp measurements to quickly troubleshoot problems with HVAC equipment and flame sensors.

The Fluke 116 also, has dual impedance capability: incorporating both regular high impedance test capabilities and low impedance functions for detecting ghost voltages, just switch to the Auto-V/LoZ (low impedance) test setting to whether measurement is a ghost voltage.


  • Overloaded breakers
  • Evaluate compressor heat expansion valves
  • Overheating motor
  • Unbalanced three phase supply
  • Overheating bearings
  • Combination starter
  • Faulty air damper
  • Normal operating temperature on mission critical breaker
  • Abnormal heat patterns in an AC condenser
  • Detect issues with switchgears
  • Monitor power factor correction capacitors
  • Ensure hydronic and radiant flooring is functional
  • Overheating pulley and belts
  • Identify potential heat loss from doors and windows
  • Check fans for high-powered equipment

What's Included:

  • Hard Case
  • hand strap
  • mini SD card and adapter
  • SmartView® software on CD
  • Lithium Ion batteries and Micro USB Charger/Power Supply
  • Fluke 902 True-rms HVAC Clamp Meter
  • Fluke 116 HVAC Multimeter

Fluke VT04 Key Features

  • Breakthrough affordability - Half the cost of infrared cameras that require training and software
  • Built-in digital camera - Every Fluke Visual IR thermometer has a built-in digital camera
  • Exclusive thermal heat map blending overlay - Blend digital and thermal images to instantly show the exact location of the issue. Blend between 0 %, 25 %, 50 %, 75 %, and full thermal with one button
  • No training required - Fully automatic with built-in intelligence
  • True pocket size design - Forty percent smaller than entry-level infrared cameras
  • SmartView® reporting software - Store up to 10,000 images per Gb on included SD card and make professional reports on included professional software
  • Hot and cold spot trackers - Automatically identifies hottest and coldest spots within field of view
  • Powerful resolution with PyroBlend™ Plus optics
    • Best-in-class field of view for tight spaces: 28° x 28°
    • Four times sharper images: VT04 compared to VT02
  • Alarm and time lapse features
    • Hi/Lo temperature alarm-Screen flashes if user-selected temperature is exceeded
    • Time lapse image capture-automatically capture images
    • Auto-monitor™ alarm-automatically capture images after a userselected temperature alarm has been triggered

Fluke 902 True-RMS HVAC Clamp Meter Features:

  • Designed for HVAC applications with capacitance, DC Current (µA), and temperature measurements
  • Small body and jaws fit perfectly in your hand and into tight places
  • Handy 'Display Hold' button keeps measurements on the display
  • Meter controls are positioned so current measurements can be done with one hand (index finger on clamp opening lever and thumb on rotary switch)
  • Large, backlit display (on most models) is easy-to-see
  • Auto shut-off maximizes battery life so the meter works when you need it
  • Three year warranty

Fluke 116 Digital Multimeter Features:

  • Analog Bargraph
  • Auto Power Off
  • Auto Ranging
  • Backlight
  • Capacitance
  • Continuity
  • Counts 6000 counts
  • Counts 6000
  • Current AC ac amps: 200
  • Current DC dc amps: 200
  • Dangerous Voltage Indicator
  • Diode Test
  • Display Hold
  • Frequency 50
  • Low Battery Indicator
  • Low Input Impedance
  • Manual Ranging
  • Micro Amps
  • Min/Max min/max/avg
  • Min/Max/Avg
  • Resistance 40
  • Temperature
  • True RMS
  • Voltage AC ac volts: 600
  • Voltage DC dc volts: 600

Fluke VT02/VT04 Comparison:

Key Features VT02 VT04
Built-in digital camera Yes Yes
Thermal heat map overlay Yes, five blending modes
Image Optics System PyroBled™ Optic
Fluke VT02 PyroBlend Optic system
PyroBlend™ Plus optic *4x sharper image than VT02
Fluke VT04 PyroBlend Optic system
Field of View 20° x 20°
Fluke VT02 PyroBlend Optic system Field of View
28° x 28°
Fluke VT04 PyroBlend Optic system Field of View
Hi-Lo temperature alarms No Yes
Time lapse image capture No Yes
Auto-monitor alarm No Yes
Battery type Four (4) AA batteries Li-Ion rechargeable
Training No training required
Ergonomics Slim pocket-sized design
Hot and cold markers Yes
General Features
Battery life Eight (8) hours
Temperature measurement range -10 °C to +250 °C (14 °F to 482 °F)
Temperature measurement accuracy +/- 2 °C or +/- 2 %
Temperature measurement Yes, centerpoint
Storage medium (micro SD card) Stores up to 10,000 images per Gb (Four (4) Gb card included)
Infrared spectral band 6.5 µm to 14 µm
Level and span Auto
Focus mechanism Focus free, no training required with built-in intelligence
Focus options-exclusive user selectable NEAR/FAR options NEAR > 23 cm (9 in); FAR < 23 cm (9 in)
Dimensions 21 cm x 7.5 cm x 5.5 (8.3 in x 3 in x 2.2 in); < 300 g. (10.5 oz.)
File format .is2 format saved to SD card. User can create professional reports or export images in SmartView (BMP, DIB, GIF, SPE, FIF, SPEG, JPG, PNG, TIF and TIFF)
Safety and compliance CFR47: 2009 Class A. Part 15 subpart B; CE: EN 61326:2006; IEC/EN 61010-1:2010
Warranty Two (2) years
Click here for complete specifications on the Fluke VT04-HVAC-KIT


Click on a category to view a selection of compatible accessories with the Fluke VT04-HVAC-KIT Visual IR Thermometer and HVAC Kit.

Fluke VT04 Rechargeable Battery VT04-BATTERY 26142
Rechargeable Li-Ion battery that provides 8 hours of use for the Fluke VT04.
$49.99 USD

Learn More

Fluke VT04 Charger VT04-CHARGER 26143
USB charger for use with Fluke VT04, includes AC adaptor.
$49.99 USD

Learn More
