Fluke 116/62 MAX+ HVAC Multimeter and IR Thermometer Combo Kit

Model: 116/62-MAX+ | Order No: 116/62MAX+

The complete solution to HVAC troubleshooting. The kit includes Fluke 116 Digital Multimeter, Fluke 62 MAX+ Infrared Thermometer, and a range of accessories.

Add In House NIST Traceable Calibration to your 116

Add In House NIST Traceable Calibration to your 62 MAX+

Clear selected options


$224.99 USD

was $249.99

4 in Stock






For the complete solution to HVAC troubleshooting the extra value-packed HVAC Technician's Combo Kit, provides the ability to troubleshoot and solve problems more efficiently by providing all the needed accessories an HVAC professional would need in a compact carry case.

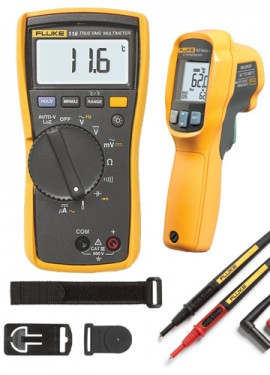

What's Included with this Kit:

  • Fluke 116 HVAC Multimeter with Temperature and Microamps.
  • TL175 Hard Point Test Lead Set.
  • TPak ToolPak Magnetic Meter Hanging Strap.
  • Flexible Cuff Pipe Clamp Thermocouple.
  • 80BK Integrated Temperature Probe.
  • 80AK-A Thermocouple Adapter.
  • C115 Deluxe Soft Carrying Case with Shoulder Strap.
  • Fluke 62 MAX+ Infrared Thermometer

About the Fluke 116

Designed by electricians. Engineered by Fluke.
The Fluke 116 HVAC Multimeter features temperature and microamps measurements useful for heating, ventilation, air conditioning and refrigeration (HVAC/R) technicians. The Fluke 116 is a compact true-rms meter and has everything needed in an HVAC meter including temperature and microamp measurements to quickly troubleshoot problems with HVAC equipment and flame sensors.
The Fluke 116 also, has dual impedance capability: incorporating both regular high impedance test capabilities and low impedance functions for detecting ghost voltages, just switch to the Auto-V/LoZ (low impedance) test setting to whether measurement is a ghost voltage.
  • Auto-V stands for automatic volts. This feature automatically determines whether the measured signal is ac voltage or dc voltage, selects the correct function and range, and displays the correct information.
  • LoZ stands for Low Impedance (Z). This feature presents a low impedance input to the circuit under test. This reduces the possibility of false readings due to ghost voltages and improves accuracy when testing to determine absence or presence of voltage.


About the Fluke 62 MAX+

Small in size extremely accurate and very easy to use. IP54 rated for dust and water resistance.

Designed with your on-the-job needs in mind, the new Fluke 62 MAX and 62 MAX + infrared thermometers are everything you'd expect from the experts in measurement tools. Small in size, extremely accurate and very easy to use. IP54 rated for dust and water resistance. Precise yet rugged enough to take a 3-meter drop. In fact, the 62 MAX and 62 MAX + are so tough, they're the only IR thermometers around you can handle without care.
If you've ever used an infrared thermometer, then you may have been fooled regarding the temperature reading. That's because IR thermometers project a measurement cone at a surface and take the average temperature of the cone at the target. Although most IR thermometers have a laser pointer, a laser is a line, not a cone, and you may think that you're getting temperature at the laser point only. Fluke's 62 Max+ uses two rotating laser pointers that show you the size of the measurement area. It covers the temperature range from -30°C to 650°C with a response time less than 300 ms. The Model 62 Max uses a single laser pointer and covers the temperature range from -30°C to 500°C.
The Max 62 and Max 62+ are designed to withstand drops up to 3 m. Is screen is located in a position and with a viewing angle (15°) that, in many cases, lets you see the display without having to move the thermometer from the measuring point. For most measurements, you simply pull the trigger once you've identified the measurement point.

Why IR Thermometers?

Temperature is often the first indication of potential problems in electrical and mechanical applications. But how can you easily determine if an electrical panel has a hot spot, a motor is overheating or an HVAC system is inefficient? The answer is with an infrared (IR) thermometer. With handheld, non-contact IR thermometers, you can instantly measure equipment temperatures in hard-to-reach or hazardous areas. And with early detection of abnormal temperatures comes early correction of problems.

Why Fluke 62 MAX and Fluke 62 MAX+?

Designed with your on-the-job needs in mind, the new Fluke 62 MAX and 62 MAX+ infrared thermometers are everything you'd expect from the experts in measurement tools: small in size, extremely accurate and very easy to use. IP54 rated for dust and water resistance. Precise yet rugged enough to take a 3-meter drop. In fact, the 62 MAX and 62 MAX+ are so tough, they're the only IR thermometers around you can handle without care.

Fluke 116 Key Features:

  • Built-in thermometer for HVAC applications
  • Microamps to test flame sensors
  • Low input impedance: helps prevent false readings due to ghost voltage
  • Large white LED backlight to work in poorly lit areas
  • Resistance, continuity, frequency and capacitance
  • Min/Max/Average with elapsed time to record signal fluctuations
  • Compact ergonomic design for one-handed operation
  • Compatible with optional magnetic hanger (ToolPak™)
  • CAT III 600 V safety rated

Fluke 62 MAX+ Key Features:

  • Dust and water-resistant: IP54 rated for dust and water resistance.
  • Rugged: 3-meter (9.8-foot) drop tested.
  • Ergonomically designed: Completely redesigned for a more natural hand fit.
  • Small and lightweight; clips to your tool belt or belt loop or easily fits into your tool box.
  • Distance to spot: Precise laser technology makes for more accurate and repeatable measurements.
  • Dual Lasers:The 62 MAX+ has dual rotating lasers to help you identify area to be measured. The measurement area is the spot between the dots.
  • Large, backlit display: Large screen makes data easier to read, even in dark areas.
  • Min/Max/Avg/Dif: Displays the minimum, maximum or average temperature, or the difference between two measurements.
  • Alarm: Hi and Lo alarms for rapid display of measurements outside the limits.
  • Power: Both the 62 MAX and 62 MAX+ are powered by a single, standard AA battery.

Fluke 116 Specifications

Specifications
Maximum voltage between any terminal and earth ground

600 V
Surge protection

6 kV peak per IEC 61010-1 600 V CAT III, Pollution Degree 2
Display
Digital6,000 counts, updates 4 per second
Bar graph

33 segments, updates 32 per second
Operating Temperature

-10 °C to + 50 °C
Storage Temperature

-40 °C to + 60 °C
Battery type

9 volt Alkaline, NEDA 1604A/ IEC 6LR61
Battery Life

400 hours typical, without backlight

Accuracy Specifications
DC millivolts
Range600.0 mV
Resolution0.1 mV
Accuracy± ([% of reading] + [counts]): 2.0% + 3
DC volts
Range/Resolution6.000 V / 0.001 V
Range/Resolution60.00 V / 0.01 V
Range/Resolution600.00 V / 0.1 V
Auto volts
Range600.0 V
Resolution0.1 V
Accuracy2.0 % + 3 (dc, 45 Hz to 500 Hz)
4.0 % + 3 (500 Hz to 1 kHz)
AC millivolts1 true-rms
Range600.0 mV
Resolution0.1 mV
Accuracy1.0 % + 3 (dc, 45 Hz to 500 Hz)
2.0 % + 3 (500 Hz to 1 kHz)
AC volts1 true-rms
Range/Resolution6.000 V / 0.001 V
Range/Resolution60.00 V / 0.01 V
Range/Resolution600.0 V / 0.1 V
Accuracy1.0 % + 3 (dc, 45 Hz to 500 Hz)
2.0 % + 3 (500 Hz to 1 kHz)
Continuity
Range600 Ω
Resolution1 Ω
AccuracyBeeper on < 20 Ω, off > 250 Ω; detects opens or shorts of 500 μs or longer.
Ohms
Range/Resolution600.0 Ω / 0.1 Ω
Range/Resolution6.000 kΩ / 0.001 kΩ
Range/Resolution60.00 kΩ / 0.01 kΩ
Range/Resolution600.0 kΩ / 0.1 kΩ
Range/Resolution6.000 MΩ / 0.001 MΩ
Accuracy0.9 % + 1
Range/Resolution40.00 MΩ / 0.01 MΩ
Accuracy1.5 % + 2
Diode Test
Range/Resolution2.000 V / 0.001 V
Accuracy0.9% + 2
Capacitance
Range/Resolution1000 nF / 1 nF
Range/Resolution10.00 μF / 0.01 μF
Range/Resolution100.0 μF / 0.1 μF
Range/Resolution9999 μF / 1 μF
Range/Resolution100 μF to 1000 μF
Accuracy1.9% + 2
Range/Resolution> 1000 μF
Accuracy5% + 20%
LoZ capacitance
Range1 nF to 500 μF
Accuracy10% + 2 typical
Temperature2 (Type-K thermocouple)
Range/Resolution-40 °C to 400 °C / 0.1 °C
Accuracy1% + 102
Range/Resolution-40 °F to 752 °C / 0.2 °F
Accuracy1% + 182
AC μamps true-rms (45 Hz to 500 Hz)
Range/Resolution600.0 μA / 0.1 μA
Accuracy1.0% + 2
DC μamps
Range/Resolution600.0 μA / 0.1 μA
Accuracy1.0% + 2
Hz (V or A input)2
Range/Resolution99.99 Hz / 0.01 Hz
Range/Resolution999.99 Hz / 0.1 Hz
Range/Resolution9.999 Hz / 0.001 Hz
Range/Resolution50.00 Hz / 0.01 Hz
Accuracy0.1% + 2

Notes:
1) All ac voltage ranges are specified from 1 % to 100% of range. Because inputs below 1 % of range are not specified, it is normal for this and other true-rms meters to display non-zero readings when the test leads are disconnected from a circuit or are shorted together. For volts, crest factor of ≤ 3 at 4000 counts, decreasing linearly to 1.5 at full scale. AC volts is ac-coupled. Auto-V LoZ, and ac mV are dc-coupled.
2) Frequency is ac coupled, 5 Hz to 50 kHz for ac voltage.

Mechanical & General Specifications
Size
Height27.62 cm (10.875")
Length15.875 cm (6.25")
Width5.6 cm (2.203")
Weight

607 g (1.34 lbs)
Warranty

3 years


Fluke 62 MAX+ Specifications

Specifications

Temperature Range

Fluke 62 MAX -30 °C to 500 °C (-22 °F to 932 °F)
Fluke 62+ MAX -30 °C to 650 °C (-22 °F to 1202 °F)
Accuracy
Fluke 62 MAX ±1.5 °C or ±1.5% of reading, whichever is greater
-10 °C to 0 °C: ±2.0
-30 °C to -10 °C: ±3.0
Fluke 62+ MAX ±1.0 °C or ±1.0% of reading, whichever is greater
-10 °C to 0 °C: ±2.0
-30 °C to -10 °C: ±3.0
Response Time (95%)
Fluke 62 MAX <500 ms (95% of reading)
Fluke 62+ MAX <300 ms (95% of reading)
Spectral Response 8 to 14 microns
Emissivity 0.10 to 1.00

Optical Resolution

Fluke 62 MAX 10:1 (calculated at 90% energy)
Fluke 62+ MAX 12:1 (calculated at 90% energy)
Display Resolution
0.1 °C (0.2 °F)
Repeatability of Readings
Fluke 62 MAX ±0.8% of reading or <±1.0 °C (2 °F), whichever is greater
Fluke 62+ MAX ±0.5% of reading or <±0.5 °C (1 °F), whichever is greater
Power
AA battery
Battery Life
Fluke 62 MAX 10 hours with laser and backlight on
Fluke 62+ MAX 8 hours with laser and backlight on

Physical Specifications

Weight 255 g (8.99 oz)
Size (175 x 85 x 75) mm (6.88 x 3.34 x 2.95) inches
Operating Temperature 0 °C to 50 °C (32 °F to 122 °F)
Storage Temperature -20 °C to 60 °C (-4 °F to 140 °F), (without battery)
Operating Humidity 10 % to 90 % RH non-condensing at 30 °C (86 °F)
Operating Altitude 2000 meters above mean sea level
Storage Altitude 12,000 meters above mean sea level
IP Rating IP 54 per IEC 60529
Drop Test 3 meters
Vibration and Shock IEC 68-2-6 2.5 g, 10 to 200 Hz, IEC 68-2-27, 50 g, 11 ms
EMC EN 61326-1:2006 EN 61326-2:2006

Standards and Agency Approval

Compliance EN/IEC 61010-1: 2001
Laser Safety FDA and EN 60825-1 Class II
Click here for complete specifications on the Fluke 116/62-MAX+
