Three-in-one simplicity for fast answers wherever you work.
In today's complex systems, a meter measurement just doesn't give enough detail to determine the cause of a fault. Signal anomalies, dropouts and glitches that might cause a machine to go down, are best displayed with an oscilloscope. The Fluke 123 ScopeMeter meet today's need of simultaneously measuring and checking waveforms.

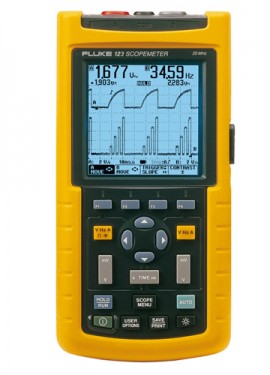

For industrial, electronic or electro mechanical applications, the compact Fluke 123 Industrial ScopeMeter is the rugged solution for industrial troubleshooting and installation applications. It features 20MHz bandwidth, Connect-and-View triggering automatically displays stable waveforms of virtually any signal and a dual DMM and a paperless recorder to get virtually any job done also includes the Fluke SCC120 kit.
It is a truly integrated test tool in one affordable, easy-to-use instrument. Find fast answers to problems in machinery, instrumentation, control and power systems.
- Dual-input 20 MHz digital oscilloscope.
- Two 5,000-count true-rms digital multimeters.
- 10 save setups and screens
- A dual-input TrendPlot recorder.
- Connect-and-View trigger simplicity for hands-off operation.
- Shielded test leads for oscilloscope, resistance, continuity and capacitance measurements.
- Up to seven hours battery operation with standard battery
- CAT III 600 V safety certified.
- Optically isolated RS-232 interface.
- Rugged compact case.
See the Fluke 123
Other models are the Fluke 124
; Fluke 124S
|Dual input True RMS Meter|
|Vdc, Vac, Vac+Vdc, Ohms,Continuity , Diode-test
|Current, °C, °F, Capacitance, dBV, dBM, Crest Factor, Touch Hold and Zeroset|
|Automatic vertical scaling and time compression.|
|Display the actual, MIN, MAX and AVG reading.|
|Real-time sample rate|
|Inputs and digitizers|
|Connect-and-View™, Free Run, Single Shot, Edge, Video, External|
|Maximum record length|
|512 min/max pts per input|
|Operating Temperature |
|Storage Temperature |
Click here for complete specifications on the Fluke 123/003S
|Mechanical & General Specifications|
|3 years parts and labor (one year on accessories)|
|Optically isolated via optional PM9080 or OC4USB for interfacing to Printer or PC|
- Fluke AC120 Alligator clips
- Fluke BB120 Shielded BNC adapter
- Getting started booklet
- Fluke HC120 Hook Clips
- Fluke PM8907 Battery Charger/Line Voltage Adapter
- Fluke STL120 Shielded Test Lead Set
- Fluke BP120 MH
- User manual (CD-ROM)
Also comes with the SCC120
kit which includes:
A three-in-one tool
Dual-input measurement shows both meter reading and waveform at the same time today's need of simultaneously ScopeMeter 123 combines a 20 MHz dual input digital storage oscilloscope, two true-rms digital
multimeters and a dual input TrendPlot recorder all in a compact,
battery powered instrument. Leave all other test tools behind, the
ScopeMeter 123 is the only tool you'll need
One test lead measures all
Check the starting capacitor of a motor using the ScopeMeter 123 High frequency waveform-, meter-,
capacitance- and resistance-measurements as well as continuity checks
are all covered by the shielded test leads. No time wasted finding or
swapping leads. The included accessories allow hook-up at test objects
of every dimension.
The confidence to do a better job
Open the measure menu and select from 26 scope- and meter-measurements Working under time pressure and in cramped
or difficult to reach locations means you want to focus on the job at
hand, not on the test tool in your hand. Which is why the ScopeMeter
123 has Connect-and-View automatic triggering.You don't have to
worry about triggering and instrument settings, and you have all the
information on screen to do the job right.
Battery powered mobility
Up to seven hours of battery operation
frees you from mains outlets for true on-the- move working. The
handheld format and the weight of just 1.2 kg, make the instrument easy
to carry and to fit comfortably in your hand. The rugged and drip proof
case assures long life and reliable operation in the harshest
Floating measurements, safety certified
While conventional oscilloscopes
only make measurements referenced to power line ground, the Fluke 123
ScopeMeter make floating measurements so there is no risk of an
ground short circuit when making a connection. The ScopeMeter 123 and
the included shielded test leads are safety certified for
measurements on CAT III 600
V industrial power systems. And using the
VPS40 probe, measurements up to 1000 V CAT II re fully supported! Via
the optically isolated RS-232 or OC4USB interface, the ScopeMeter 123
can be safely connected to a printer for direct print-out or to
a PC for later analysis and documentation using FlukeView software.
Connect-and-View™ triggering for an instant, stable display
Connect-and-View captures even the most complex motor drive signals Scope users know how difficult triggering
can be. Wrong settings show unstable and sometimes wrong results.
Fluke's unique Connect-and-View recognizes signal patterns, and
automatically sets up correct triggering. It provides a stable,
reliable and repeatable display of virtually any signal - including
motor drive and control signals - without you touching a button. Signal
changes are instantly recognized and settings adjusted for a stable
display. Benefit from the speed and convenience when measuring a number
of test points in quick succession.
Use TrendPlot™ to help find intermittents, fast
Cursors and zoom help you analyze the captured TrendPlot The toughest faults to find are those that
happen only once in a while: intermittents. They can be caused by bad
connections, dust, dirt, corrosion or simply broken wiring or
connectors. You may not be around to see it - your Fluke ScopeMeter
will. In this "paperless recorder" mode, you can plot the minimum and
maximum peak values and average over time - up to 16 days. The two
inputs can plot any combination of volts, amps, temperature, frequency
and phase - with time and date stamp -to help lead you to the cause of
those faults quickly.
The Fluke 123S ScopeMeter with SCC120
kit helps you get more out of your ScopeMeter by:
- Documenting: Transfer screens, waveforms, and measurement data
from the ScopeMeter to your PC for printing, or to import data to other
- Archiving: Store and retrieve waveforms with text annotations and create your own library for easy reference and comparison.
Gather valuable measurement data and enable cursor measurements to
reveal relationships and conditions. Extended recording of up to four
user-selected measurements help you monitor and analyze slow moving
signals and related events. Upload waveforms to the PC and use cursors
for detailed measurements. Perform waveform analysis, including
- Windows 95/98/Me/NT4.0/2000/XP
- Requires one free RS-232 port (COM port)
- Requires optional PM9080 RS-232 Adapter/Cable
- Fluke 123S firmware version V1.00, V1.02, V1.03 or V1.04 (See Firmware Level Check below). A PC, running Windows 95, 98, Me, 2000, NT 4.0, XP or Vista, with a free RS-232 or USB port to perform the software installation;
PM9080 or OC4USB (RevII) optically isolated serial interface cable (as included with the ScopeMeter 123/S model and with the SCC-120 kit) for data interconnection between the PC and the instrument
Firmware Level Check - Press USER OPTIONS and F3 [VERSION & CAL …] on your ScopeMeter to check its firmware version.
