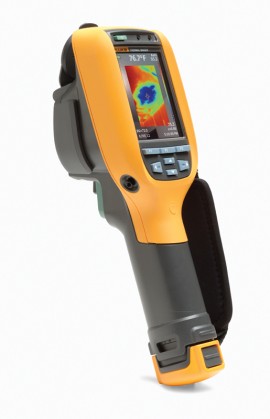

Fluke TiR105 Thermal Imager

Model: TIR105-9HZ

For Building Diagnostics. Features a 160 x 120 9Hz infrared detector with a 0.08°C thermal sensitivity and a -20 to 150°C (-4 to 302°F) temperature range.

Add In House NIST Traceable Calibration to your TiR105

Clear selected options

$2,999.95 USD

1 to 2 Weeks

Fluke Connect is the best way to stay in contact with your team without leaving the field.


Fluke TiR105 9Hz Key Features:

  • Experience the ultra-sleek intelligent design developed for you - rugged, ergonomic, lightweight, point-and-shoot, focus-free imager
  • Find air leaks, hidden moisture, construction defects, or other building issues faster and easier with IR-Fusion® technology
  • Use both Picture-in-Picture, Full Visible and Full Infrared for reporting and validation of work
  • Illuminate dark places such as electrical cabinets and poorly lit mechanical rooms with integrated torch
  • Show where the problems exist with the laser pointer
  • Enjoy non-stop thermal imaging with field replaceable battery


Fluke's TiXX Series of Thermal Imagers are now compatible with the new Fluke CNX series of Wireless Test Tools. Fluke has released new Firmware for the TiXX series that allows the thermal imagers to communicate with the CNX Wireless System.

You can learn more about the CNX Series here.

Fluke TiR105 9Hz Building Diagnostic Thermal Imager

Ultra sleek, intelligent design meets the performance you need for building diagnostics.
Searching for air leaks, hidden moisture, construction defects, or other building issues? The Fluke TiR105 Thermal Imager delivers a huge competitive advantage-it allows you to work faster, more efficiently and document your findings right away.

Find and report problem areas to your clients right away with peace of mind:

  • Feel: Ultra-sleek design developed for building diagnostic applications makes driving your thermal imager safe, easy and more fun.
  • See: IR Fusion® (Picture in Picture mode) technology helps identify problem areas and torch to assist in illuminating dark spaces.
  • Report: Included SmartView® software assisting you to document your findings and customize your reports
General Specifications
IR resolution (FPA size)160 x 120 FPA Uncooled Microbolometer
Spectral band7.5 µm to 14 µm (long wave)
Capture or refresh rate9 Hz
NETD (Thermal sensitivity)< 0.08 °C at 30 °C target temp (80 mK)
FOV (Field of view)22.5 °H x 31 °V
IFOV (Spatial resolution)3.39 mRad
Temperature measurement range (not calibrated below -10 °C)-20 °C to + 150 °C (-4 °F to 302 °F)
Temperature measurement accuracy± 2 °C or 2 % (at 25 °C nominal, whichever is greater)
Focus mechanismFocus-free 1.2 m (4 ft) and beyond
IR Fusion ® technologyPIP (1.2 m (4 ft) to 4.6 m (15 ft)), FULL IR, FULL VISIBLE
Color alarms-
Standard palettesBlue-Red, Ironbow, Grayscale, Amber
Ultra Contrast™ palettes-
Hot/cold markers-
User definable spot markers In SmartView® only
Centerpoint Yes
Centerbox (MIN/AVG/MAX)-
Level and span controlManual and auto
Minimum span in auto mode2.5 °C
Minimum span in manual mode2.0 °C
Minimum IR focus distance122 cm (48 in)
Weight0.726 kg (1.6 lb)
Size28.4 x 8.6 x 13.5 cm (11.2 x 3.4 x 5.3 in)
LCD display3.5 inch diagonal (portrait format)
Visible camera2 megapixel industrial-grade
Minimum parallax~122 cm (48 in)
IR-PhotoNotes™ annotation system-
Laser pointerYes
Electronic (cardinal) compass-
Emissivity correction Yes
Transmission correction-
Background (reflected) compensation Yes
Voice annotation (audio)-
Multi-mode video output-
Multi-mode video recording (standard AVI with MPEG encoding)-
Multi-mode video recording (radiometric .IS3)-
Memory reviewThumbnail review
Battery (field-replaceable, rechargeable)One
Battery life4+ hours (each)*
External battery charging baseOptional (accessory)
Charging power supplyYes
Drop test2 meter (6.5 feet)
Ingress protection (IP) rating (IEC 60529)IP 54
Est. calibration cycleTwo-years
Multifunction card reader-
Memory storage2 GB SD memory card
Direct download capabilitymini USB direct download
Operating temperature range-10 °C to +50 °C (14 °F to 122 °F)
Storage temperature range-20 °C to +50 °C (-4 °F to 122 °F)
Operating humidityOperating and storage 10 % to 95 %, non-condensing
Vibration and shock2G, IEC 68-2-26 and 25G, IEC 68-2-29
Safety standardsCSA (US and CAN): C22.2 No. 61010-1-04, UL: UL STD 61010-1 (2nd Edition), ISA: 82.02.01
C TickIEC/EN 61326-1
EMI, RFI, EMCEN61326-1; FCC Part 5
User manualsCzech, English, Finnish, French, German, Italian, Japanese, Korean, Polish, Portuguese, Russian, Simplified Chinese, Spanish, Swedish, Traditional Chinese, Turkish, Dutch, and Hungarian
Standard warranty periodTwo-years
Extended warranty and service plansYes
*Assumes 50% brightness of LCD
Click here for complete specifications on the Fluke TIR105-9HZ

What's Included:

  • Thermal imager
  • AC power adapter
  • Lithium ion smart battery (1)
  • USB cable
  • SD memory card
  • Hard carrying case
  • Soft transport bag
  • Adjustable hand strap (left- or right-handed use)
  • Printed users' manual in English, Spanish, French, German and Simplified Chinese, all other manuals on CD-total of 18
  • SmartView® software and warranty registration card
This product features Fluke Connect Technology

See it. Save it. Share it. All the facts, right in the field.

Fluke engineers have delivered an innovative mobile platform and tool that helps solve everyday problems, allowing you to instantly document measurements, retrieve historical data, and share live measurements with your team. All handled by the Android™ or iOS smart phone you already carry.

Fluke Connect with ShareLive™ video call is the only wireless measurement system that lets you stay in contact with your entire team without leaving the field. The Fluke Connect mobile app is works with over 20 different Fluke products - the largest suite of connected test tools in the world.

Make the best decisions faster than ever before by viewing temperature, mechanical, electrical and vibration measurements for each equipment asset in one place. Get started saving time and increasing your productivity.

Fluke Connect Features:

  • TrendIt™ Graphs: Use graphing to show changes in measurements, allowing you to graph and show problems instantly.
  • EquipmentLog™ History: Access equipment history building a database of equipment health and baselines with cloud backup.
  • ShareLive™ Video Calls: Save, collaborate and share measurements instantly with your team anytime, from anywhere.
  • AutoRecord™ Measurements: Instantly save measurements to your phone with Cloud backup.
  • Fluke Cloud™ Storage: Securely access equipment records anywhere, anytime.

Fluke Connect Benefits:

  • Maximize uptime
  • Minimize maintenance costs
  • Better assessments with accurate records
  • Higher efficiency with less walking around; no notebook and excel needed
  • Share troubleshooting knowledge live
  • Create and share helpful content in the field
  • Access to Fluke digital product manuals means no need to carry manuals in the field
  • Keep organized manually entered measurements
