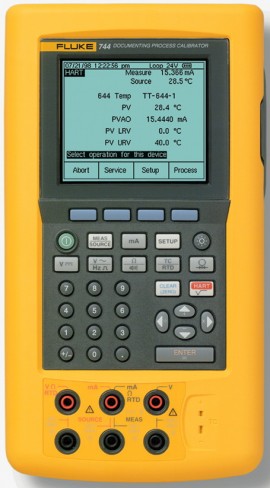

Fluke 744 Documenting Process Calibrator

Model: 744-120

HART Communications capability. Measure: 300V DC, 110mA DC. Source: 15V DC, 22mA DC.

This product has been discontinued. Click here for the replacement model.


    The 744 is a power multifunction documenting calibrator that lets you download procedures, lists, and instructions created with software-or upload data for printing, archiving, and analysis. The 744 also features a powerful built in HART® interface capable of performing nearly all the day-to-day tasks you now perform with a separate communicator.

      • Measure volts, mA, RTDs, thermocouples, frequency, and ohms to test sensors, transmitters and other instruments
      • Source/simulate volts, mA, thermocouples, RTDs, frequency, ohms, and pressure to calibrate transmitters
      • Power transmitters during test using loop supply with simultaneous mA measurement
      • Measure/source pressure using any of 29 Fluke 700Pxx Pressure Modules
      • Create and run automated as-found/as-left procedures to satisfy quality programs or regulations. Record and document results
      • Holds up to a full week of downloaded procedures and calibration results.
      • Use many features like autostep, custom units, user entered values during test, one-point and two-point switch testing, square root DP flow testing, programmable measurement delay etc.
      • Easy to use
      • Three year warranty
      • Bright white dual display. Read both sourced and measured parameters simultaneously.
      • Multi lingual interface
      • Rechargeable NiMH battery for 10 hour uninterrupted use. Includes gas gauge.
      • Handling of fast pulsed RTD transmitters and PLCs, with pulses as short as 1 ms.
      • Delivered with DPC/Track Sample software.
      • Compatible with many Asset Management software packages.
    HART Capabilities
      The 744 is designed to take on nearly all the day-to-day tasks you now perform with a separate communicator. In fact, it offers the communication capabilities of the 275 HART communicator.
      • Requires no external box or second tool for everyday HART calibration and maintenance.
      • Offers fast HART communication.
      • Supports popular models of HART transmitters, with more devise-specific command support than any other HART field calibrator.
      • Works with multiple masters, burst mode, and multi-drop configurations.
      • Is easy to update as additional instruments are added and new HART versions are released.
      • Interrogate to determine device type, manufacturer, model, tag.
      • Reconfigure the sensor mapping of dual sensor temperature transmitters.
      • Read HART PV function and smart transmitter digital output while measuring analog mA output.
      • Read and write HART configuration functions to make field adjustments to PV range points, damping, and other top-level configuration settings.
      • Re-label smart transmitters by reading and writing to the HART tag field.

      Versatile HART Protocol support

        The 744 supports the commands contained in HART protocol Version 5.7. With 2 MB of memory, the 744 supports a substantial set of HART instructions:
        • Universal commands provide functions that are implemented in all field devices, for example, read manufacturer and device type, read primary variable (PV), or read current output and percent of span.
        • Common practice commands provide functions that are common to many but not all field devices, for example read multiple variables, set damping time, or perform loop test.
        • Device-specific commands provide functions that are unique to a particular field device, for example sensor trim.

        HART Operating Modes Supported
        • Point to Point operation , the most commonly used mode, connects the 744 to a single HART device in a 4-20 mA loop.
        • In Multi-Drop mode , several HART instruments can be bussed together. The 744 searches for each, identifies addresses in use, and allows you to select the instrument for calibration and related operations.
        • In Burst Mode, the HART instrument transmits bursts of data without waiting to be interrogated by a master unit. The 744 can take transmitters out of burst mode during test or calibration, then later restore them to burst mode.

        744 V 2.5 Documenting Process Calibrator Software Upgrade
        The Fluke 744 Version 2.5 software upgrade includes:
        • Device-specific calibration support for new instruments:
        • Micro Motion 2000, 2000 IS, 9701, 9712 and 9739 coriolis flow transmitters
        • Fuji FCX and FCXA2 pressure and FRC temperature transmitter
        • New features:
        • Support for New Hart Scientific dry blocks: 7103, 9007, 9011, 9023, 9103, 9105, 9107, 9122, 9127, 9132, 9133 and 9150
        • Enhanced dry block delay setting for temperature switch testing
        • Switch test without reset

          The upgrade is delivered on a floppy disk. One upgrade disk is required for each calibrator to be upgraded. Download from your PC to your calibrator using the serial cable originally supplied with your Fluke 744 Calibrator. Elapsed time for the process will be about 8 minutes. After the upgrade is complete, your calibrator will indicate “Version 2.5" at start up.

          The 2.5 upgrade is available from your regular Fluke dealer or representative as Fluke 744V20. For an available five-pack, ask for Fluke-744V2V.

        Pressure Modules

        Covers virtually any pressure application including gage, differential, dual (compound), absolute, and vacuum.
      • Display pressure readings in any of 10 different pressure units you specify in the calibrator setup.
      • Rugged urethane molded cases protect the modules from rough handling and harsh conditions.
      • Features internal temperature compensation from 0º to 50º C for full accuracy performance.
      • Includes NIST-traceable calibration certificate.
      • Modules can be calibrated locally, helping to control costs.
        A family of 29 optional pressure modules provides pressure calibration and measurement capabilities. Twenty-eight modules are available, with basic accuracy specs to 0.05%. Ranges start at 0 — 1 in H20 (0 — .25kPa) and go to 0 — 10,000 psi (0 — 70,000 kPa). Additional information about pressure modules is available on the Pressure Modules Home Page.

      Automated Procedures

        Allow you to quickly set up powerful, automated calibration procedures for linear transmitters, DP flow transmitters, and one- and two-point limit switches. Simply select the appropriate measure and/or source functions and fill out the procedure template. The 740 Series does the rest. It quickly performs the test, calculates the errors, and displays the final results, highlighting out of tolerance points.

      Custom Units

        Enable you to map one unit to another, such as mV to ºC or ºF. Allows you to use the Fluke 740 Series with millivolt output accessories such as the Fluke 80T-IR Temperature Probe, and to document tests using non-supported units such as parts per million or revolutions per minute.

      User-entered Values

        Enables technicians to record calibration results that were sourced and/or measured by other devices such as panel meters or readout-only devices.

      Limit Switch Calibration

        Procedures perform fast, automated calibration of one and two-point limit switches for voltage, current, temperature, and pressure.

      Differential Pressure Flow Instrument Calibration

        Routines use a square root function to directly calibrate DP flow instruments.

      Additional Features

        Calibrate temperature, pressure, voltage, current, resistance, and frequency. Since it both measures and sources, you can troubleshoot and calibrate all with one rugged tool.

      Powerful, yet easy to use

        The easy-to-follow menu-driven display guides you through any task. Get up to speed in minutes, not days. Programmable calibration routines enable you to create and run automated as-found/as-left procedures to ensure fast, consistent, calibrations.

      Records and documents results

        To support your ISO-9000 or regulatory standards the Fluke 744 captures your calibration results, eliminating the need to juggle a pen and pad in the field. The RS-232 interface lets you transfer the results to a PC, thus saving the time of having to manually transcribe them when you return to the shop.

      Truly hand-held

        Small enough to fit easily into a tool bag and to use in tight spaces. Runs an entire shift on a rechargeable NiMH battery pack.

      Rugged and reliable

        Count on Fluke's rugged design to deliver top accuracy and reliability in harsh environments. Overmolded urethane case stands up to rough handling in industrial environments.

      Bright white display

        Lets you read your results in any kind of light.

      Soft keys

        Provide one-touch access to enhanced functions such as task lists, automated procedures, scaling, min/max, stepping and ramping, and review memory.

      Three operating modes

        Measure, Source, or simultaneous Measure/Source, - enable technicians to troubleshoot, calibrate, or maintain instrumentation with just one tool.

      Multi-lingual interface

        Displays instructions in English, French, German, Spanish, and Italian.

      Built-in algebraic calculator

        With four functions-plus square root-stores, recalls, and performs calculations required for setting up instruments or evaluating data in the field. Use it to set the source function to a calculated value. There's no need to carry a pencil and paper or a separate calculator.

      Programmable measurement delay

        Inside automated procedures permits calibrating instruments that respond slowly.

For the calibration and troubleshooting of process control instrumentation.

We know how tough your job can be. You've got a lot to deliver in as little time as possible. So we've made it easier on you - with our multifunction 740B Series Documenting Process Calibrators.

The 740 Series does the work of several tools - sourcing or measuring pressure, temperature, and electrical signals in one rugged, hand-held device.

For documentation, the 740 Series automates calibration procedures and captures your data - for easy transfer to a PC using Fluke DPC/Track software or other popular packages. And, of course, it helps you meet rigorous standards like ISO 9000, FDA, EPA and OSHA regulations.

The 740 Series is easy to use with flexible test strategies, user-entered values, custom units, even a built in calculator. And like all Fluke tools, it's rugged, reliable and tough as nails. It's like having several powerful tools in one - so you can work faster than ever:

  • Calibrate temperature, pressure, voltage, current, resistance, and frequency.
  • Measure and source with one compact, rugged, reliable tool.
  • Create and run automated as-found/as-left procedures to satisfy quality programs or regulations. Supports linear, square-root devices plus one-point and two-point limit switches.
  • Record and document results.
  • Transfer the results to a PC (743B and 744 only), saving the time to manually transcribe data. Run popular instrumentation management software.
  • HART communication capability lets you program and control HART instrumentation (744 only).
What's Included:
  • Documenting Process Calibrator-HART including:
  • BC7217 battery charger
  • BP7235 battery pack
  • DPC/TRACK Sample Software
  • Instruction manual
  • NIST-traceable calibration report and data
  • One set of TP220 test probes
  • Serial port cable, HART communications cable
  • Two sets of AC220 test clips
  • Two sets of TL224 industrial test leads

The Fluke 741B offers simultaneous source and measure capabilities for all common process parameters. Create and execute automated procedures and automatically capture the results.

The Fluke 743B offers all the capability of the 741B, plus adds a serial interface for two-way communication applications.

The Fluke 744 offers all of the capabilities of the 743B, plus the ability to maintain and calibrate selected HART transmitters without a second tool.

Measurement Accuracy
Voltage DC
110.000 mV0.025%+0.015% *
1.10000 V0.025%+0.005% *
11.0000 V0.025%+0.005% *
110.000 V0.05%+0.005% *
300.00 V0.05%+0.005% *
Voltage AC
20 to 40 Hz2% + 10
40 to 500 Hz0.5% + 5
500 to 1 kHz2% + 10
1 kHz to 5 kHz10% + 20
Ranges1.1000, 11.000, 110.00, 300V
Current DC
30.000 mA0.01% + 0.015% *
110.00 mA0.01% + 0.015% *
11.000 Ω0.05% + 50 mΩ
110.00 Ω0.05% + 50 mΩ
1.1000 kΩ0.05% + 500 mΩ
11.000 kΩ0.1% + 10 Ω
1.00 to 109.99 Hz0.05 Hz
110.0 to 1099.9 Hz0.5 Hz
1.100 to 10.999 kHz5 Hz
11.00 to 50.00 kHz50 Hz
Accuracyfrom 0.025% of range using any of 29 pressure modules.

Modules available for differential, gage, vacuum, absolute, dual and high pressure.

(for detailed specifications refer to pressure modules in options and accessories)
*(% of reading + % of full scale)

Source Accuracy
Voltage DC
110.000 mV0.01%+0.005% *
1.10000 V0.01%+0.005% *
15.0000 V0.01%+0.005% *
Current DC
22.000 mA (Source)0.01%+ 0.015% *
22.000 mA (Simulate)0.02% + 0.03% *
11.000 Ω0.01% + 20 mΩ
110.00 Ω0.01% + 40 mΩ
1.1000 kΩ0.02% + 500 mΩ
11.000 kΩ0.03% + 5Ω
0.00 to 10.99 Hz0.01 Hz
11.00 to 109.99 Hz0.1 Hz
110.0 to 1099.9 Hz0.1 Hz
1100 to 21999 Hz2 Hz
22.000 to 50.000 kHz5 Hz
*(% of reading + % of full scale)

RTDs and Thermocouples
Measure Accuracy
10 Ω Cu (427): 2 °C
100 Ω Pt (3916)0.3 °C
100 Ω Pt (3926)0.3 °C
100 Ω Pt (385)0.3 °C
200 Ω Pt (385)0.3 °C
500 Ω Pt (385)0.3 °C
1000 Ω Pt (385)0.3 °C
120 Ω Ni (672)0.3 °C
noteFor 2-and 3-wire measurement, add 0.4°C
E0.3 °C
N0.5 °C
J0.3 °C
L0.3 °C
K0.3 °C
T0.3 °C
U0.3 °C
B0.9 °C
R1.0 °C
S0.9 °C
C0.6 °C
BP1.2 ºC
XK0.4 ºC
noteAccuracy with external cold junction, for internal junction add 0.2 °C
Source Accuracy:
10 Ω Cu (427)1 °C
100 Ω Pt (3916)0.1 °C
100 Ω Pt (3926)0.1 °C
100 Ω Pt (385)0.1 °C
200 Ω Pt (385)0.1 °C
500 Ω Pt (385)0.1 °C
1000 Ω Pt (385)0.1 °C
120 Ω Ni (672)0.1 °C
noteFor 2-and 3-wire simulation, add 0.4 °C
E0.2 °C
N0.3 °C
J0.2 °C
L0.2 °C
K0.3 °C
T0.3 °C
U0.3 °C
B0.8 °C
R0.9 °C
S0.9 °C
C0.6 °C
BP0.5 ºC
XK0.4 ºC
noteAccuracy with external cold junction, for internal junction add 0.2 °C

Technical Data
Data Log Functions
Measure functionsVoltage, current, resistance, frequency, temperature, pressure
Reading rate1, 2, 5, 10, 20, 30, or 60 readings/minute
Maximum record length8000 readings (7980 for 30 or 60 readings/minute)
Ramp Functions
Source functionsVoltage, current, resistance, frequency, temperature
Rate4 steps/second
Trip detectContinuity or voltage (continuity detection not available when sourcing current)
Loop Power Function
VoltageSelectable, 24 V or 28 V
Maximum current22 mA, short circuit protected
Maximum input voltage30 V DC
Step Functions
Source FunctionsVoltage, current, resistance, frequency, temperature
Manual StepSelectable step, change with arrow buttons
AutostepFully programmable for function, start delay, stepvalue, time per step, repeat

Environmental Specifications
Operating temperature

-10 °C to +50 °C

-20 °C to +50 °C *
Storage temperature

-20 °C to +60 °C
Dust/water resistance

Meets IP52, IEC 529
Operating Altitude

2800 m
*Except frequency and AC

Safety Specifications
Agency Approvals

CAN/CSA C22.2 No 1010.1-92, ASNI/ISA S82.01-1994, UL3111, and EN610-1:1993

Mechanical & General Specifications

130 x 236 x 61 mm (5.1“ x 9.3" x 2.4")

1.4 kg (3 lbs., 1oz.)
NiMH7.2V, 3.5 Ah
Battery life

>10 hours typical
Battery Replacement

Via snap-shut door without opening calibrator; no tools required
Side port connections

Pressure module connector

RS-232 connector for PC interface cable and for HART communication cable

Connection for optional battery eliminator
Data storage capacity

1 week of calibration results
90 day specifications

The standard specification interval for the 744 is 1 and 2 years.

Typical 90 day measurement and source accuracy can be estimated by

dividing the one year "% of reading" or "%of output" specifications by 2.

Floor specifications, expressed as "% of full scale" or

"counts" or "ohms" remain constant.

  • Fluke TL224 Industrial Test Leads (2 sets)
  • Fluke AC220 Test Clips (2 sets)
  • Fluke TP220 Test Probes
  • Fluke BP7235 NiMH Battery Pack
  • Fluke BC7217 Battery Charger
  • Instruction Manual, HART user's manual
  • NIST Traceable calibration certificate and data
  • Serial port cable, HART communications cable
  • DPC/TRACK sample version with free PC communication utility software
