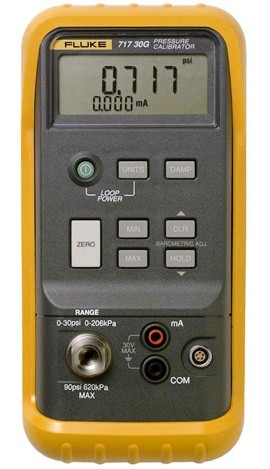

Fluke 717-30G Pressure Calibrator

Model: 717-30G

Pressure Calibrator -12 to 30 PSI (-850 mbar to 2 bar, -85 to 206.84 kPa).

Add In House NIST Traceable Calibration to your Fluke 717-30G Pressure Calibrator

Clear selected options


$1,499.99 USD

6 to 7 Weeks







  • Measure pressure, 0.05% of full scale with internal sensor up to 5000 PSI/345 bar sensor (5000G model)
  • Measure mA with 0.015% accuracy and 0.001 mA resolution, while sourcing 24V loop power
  • Measure pressure to 10,000 psi/700 bar using one of 29 Fluke 700Pxx Pressure Modules
  • 1/8 NPT female pressure fitting
  • Compatible with non-corrosive Gases and liquids
  • Select eleven different engineering units
  • Zero, min, max, and hold functions
  • Calibrate P/I instruments with simultaneous pressure and current measurement
  • Pressure switch test function captures set, reset and Deadband values of a pressure switch
  • Error% calculation of mA measurements for quick pass-fail decisions
  • Long lasting battery life
  • Holster features test lead storage
  • Compatible with Toolpack magnetic hanging system
  • New switch test

Compact and professional pressure calibration tools.

Fluke 717-30G Pressure Calibrator is a compact, lightweight and easy to carry calibrator that delivers outstanding performance, durability and reliability. The Fluke 717 Calibrator is EMI tolerant, dust and splash resistant and features a removable battery door for quick battery changes.
The Fluke 717 simultaneously measures pressure and mA and delivers 24 volt loop supply while measuring mA.
This new Pressure Calibrator presents cost-effective solutions for highly accurate pressure measurements over a wide range of temperatures. Connect it with any of the Fluke pressure modules to address a wide variety of gage, differential, absolute, vacuum and dual (compound) pressure applications.

Measure:

  • Temperature from Thermocouple output
  • Loop Current
  • Pressure, 0.05% of full scale
  • Temperature from RTD output
  • Pressure to 10,000 psi/69 mPa using one of 29 Fluke pressure modules
  • Pressure, 0.05% of full scale with internal 30 psig sensor
Measurement Accuracy
Pressure
Fluke 717 30G


Measure Pressure(internal sensor)


Range-12 to 30 PSI, (-850 mbar to 2 bar )
Resolution0.001 PSI, 0.1 mbar
Accuracy0.05% full scale
FunctionsZero, Min, Max, Hold, Damp

Note: Gasses / liquids (non-corrosive), Over Pressure 3xFS


Fluke 717 Series


Measure Pressure(via pressure module connector using optional Pressure Modules)


Range29 pressure modules, 0-1 inH20 to 10,000 PSI, 2.5 mbar to 700 bar ranges

Over pressure per pressure module specs
ResolutionPer pressure module specs
Accuracy0.025% of full span, per pressure module specs
FunctionsZero, Min, Max, Hold, Damp

Note: Media compatibility per pressure module specs
Current
Range: 0 to 24 mA (-25% to 125%)
Resolution: 0.001 mA
Accuracy0.025% + 2 counts

Specifications
Loop Power
Range24 V dc
Accuracy: +/- 10%

Note: Drive; 20 mA into 1000 W for battery >6.8V; 700 W for battery 5.8 to 6.8 V
Display

Clear 5 digit LCD

Environmental Specifications
Operating temperature

-10 °C to 55 °C
Storage temperature

-40 °C to 60 °C
Humidity (Without Condensation)

95% (10 °C to 30 °C)

75% (30 °C to 40 °C)

45% (40 °C to 50 °C)

35% (50 °C to 55 °C)
Operating Altitude

3,000 m max

Safety Specifications
Safety

CSA C22.2 No. 1010.1:1992

Mechanical & General Specifications
Size

201 mm L x 98 mm W x 52 mm (7.93in. L x 3.86in. W X 2.06in.)
Weight

(21 oz.)

Approx. 330g
Warranty

3 years
Shock & Vibration

Random, 2G, 5-500 Hz

1m drop test
Battery type

Single 9V battery ANSI/NEDA 1604A or IEC 6LR619V alkaline

Click here for complete specifications on the Fluke 717-30G
