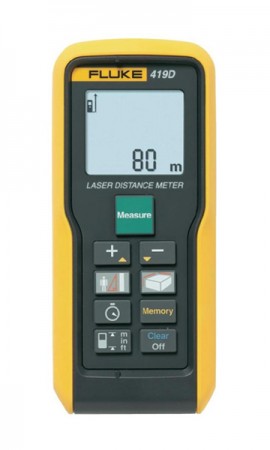

Fluke 419D Laser Distance Meter

Model: 419D

This professional-grade laser distance meter is fast and easy to use improving accuracy and reducing measurement errors.

Add In House NIST Traceable Calibration to your 419D

Clear selected options


$260.99 USD

was $289.99

1 in Stock






Fluke 419D Laser Distance Meter

The Fluke 419D professional-grade laser distance meter extends your reach to 80 meters (260 feet) with even greater accuracy. It saves you time and reduces errors with enhanced features like storage for 20 complete displays and a tripod mode for stable, long-distance measurements.

The 419D distance meters offer these enhanced features:

  • Measure up to 80 m (260 ft)
  • Higher accuracy: +/-1 mm (0.04 in)
  • View more data with backlit, three-line display
  • Full Pythagoras function for height measurements
  • Storage of 20 complete displays for quick recall
  • Audible keypad feedback
  • Minimum/Maximum function
  • Tripod mode for mounting meter on a tripod when measuring long distances
  • Stake Out feature helps you mark out defined lengths such as when constructing wooden frames
  • Automated End-piece Correction for measuring from an edge or corner --a built-in sensor detects the position of this bracket and automatically changes the reference point.
  • Enhanced environmental protection:IP54-rated as dust and water spray resistant
  • Improved battery life of 5000 measurements with auto laser off and auto power off features.

Like all new Fluke laser distance meters, the 419D offers instant, one-button measurement of the distance between two objects plus:

  • Bright laser for easy targeting
  • Quick calculations of area (square feet/meters) and volume
  • Easy-to-use addition and subtraction function
  • Carrying pouch secures to tool belt

All meters offer:

  • Reduction of estimation errors, saving both time and money
  • The most advanced 2 laser technology for distance measurement
  • Instant measurement with one-button operation
  • Easy addition and subtraction function
  • Quick calculation of area (square footage) and volume
  • Easy addition and subtraction of measurements
  • Minimum/maximum function
  • Improved battery life from automatic shut-off feature
  • Pythagoras calculation for determining distance indirectly from two other measurements
  • Pouch with Fluke logo
  • Three-year warranty

The 424D and 419D additionally offers:

  • Improved visibility with backlit screen
  • Ability to measure up to 80 m (260 ft) for 419D, 100 m (330 ft) for 424D
  • Tripod mode allows you to mount to a tripod for measuring long distances
  • Stake out function
  • Enhanced Pythagoras calculation for determining distance indirectly from three other measurements
  • Audible keypad feedback
  • Storage of the last twenty measurements for quick recall of distance
  • Strong environmental protection with IP54 (water spray and dust proof) sealing
The 419D distance meters offer these enhanced features:

  • Measure up to 80 m (260 ft)
  • Higher accuracy: +/-1 mm (0.04 in)
  • View more data with backlit, three-line display
  • Full Pythagoras function for height measurements
  • Storage of 20 complete displays for quick recall
  • Audible keypad feedback
  • Minimum/Maximum function
  • Tripod mode for mounting meter on a tripod when measuring long distances
  • Stake Out feature helps you mark out defined lengths such as when constructing wooden frames
  • Automated End-piece Correction for measuring from an edge or corner --a built-in sensor detects the position of this bracket and automatically changes the reference point.
  • Enhanced environmental protection:IP54-rated as dust and water spray resistant
  • Improved battery life of 5000 measurements with auto laser off and auto power off features.
Like all new Fluke laser distance meters, the 419D offers instant, one-button measurement of the distance between two objects plus:
  • Bright laser for easy targeting
  • Quick calculations of area (square feet/meters) and volume
  • Easy-to-use addition and subtraction function
  • Carrying pouch secures to tool belt
All meters offer:
  • Reduction of estimation errors, saving both time and money
  • The most advanced 2 laser technology for distance measurement
  • Instant measurement with one-button operation
  • Easy addition and subtraction function
  • Quick calculation of area (square footage) and volume
  • Easy addition and subtraction of measurements
  • Minimum/maximum function
  • Improved battery life from automatic shut-off feature
  • Pythagoras calculation for determining distance indirectly from two other measurements
  • Pouch with Fluke logo
  • Three-year warranty
The 424D and 419D additionally offers:
  • Improved visibility with backlit screen
  • Ability to measure up to 80 m (260 ft) for 419D, 100 m (330 ft) for 424D
  • Tripod mode allows you to mount to a tripod for measuring long distances
  • Stake out function
  • Enhanced Pythagoras calculation for determining distance indirectly from three other measurements
  • Audible keypad feedback
  • Storage of the last twenty measurements for quick recall of distance
  • Strong environmental protection with IP54 (water spray and dust proof) sealing
 414D419D424D
Distance Measurement
Typical Measuring Tolerance[1] ± 2.0 mm [3]± 1.0 mm [3]
Maximum Measuring Tolerance[2] ± 3.0 mm [3] ± 2.0 mm [3]
Range at Leica target plate GZM26 50 m / 165 ft80 m / 260 ft100 m / 330 ft
Typical Range[1] 40 m / 130 ft80 m  / 260 ft80 m / 260 ft
Range at unfavorable condition[4] 35 m / 115 ft60 m / 195 ft60 m / 195 ft
Smallest unit displayed 1 mm / 1/16 in 6 /30 / 60 mm
(10 / 50 / 100 m)
∅ laser point at distances 6 /30 / 60 mm
(10 / 50 / 100 m)
6 /30 / 60 mm
(10 / 50 / 100 m)
Tilt measurement
Measuring tolerance to laser beam[5] No No ± 0.2°
Measuring tolerance to housing[5] No No ± 0.2°
Range No No 360°
General
Laser class 2
Laser type 635 nm, <1 mW
Protection class IP40 IP54
Automatic laser off After 90 seconds
Automatic power off after 180 seconds
Battery life (2 x AAA) 1.5 V NEDA 24A/IEC LR03 Up to 3,000
measurements
Up to 5,000
measurements
Size (H X W X L) 116mm Length
53mm Width
33mm Depth
127mm Length
56mm Width
33mm Depth
127mm Length
56mm Width
33mm Depth
Weight (with batteries) 113 g 153 g 158 g
Temperature range: Storage Operation -25 °C to +70°C
(-13 °F to +158 °F)

0 °C to +40 °C
(32 °F to +104 °F)
-25 °C to +70°C
(-13 °F to +158 °F)

-10 °C to +50 °C
(14 °F to +122 °F)
Calibration cycle Not applicable Not applicable Tilt and compass
Maximum altitude 3000 m 3000 m 3000 m
Maximum relative humidity 85% at 20 °F to 120°F
(-7 °C to 50 °C)
85% at 20 °F to 120°F
(-7 °C to 50 °C)
85% at 20 °F to 120°F
(-7 °C to 50 °C)
Safety IEC Standard No. 61010-1:2001
EN60825-1:2007 (Class II)
EMC EN 55022:2010
EN 61000-4-3:2010
EN 61000-4-8:2010
[1] Applies for 100 % target reflectivity (white painted wall), low background illumination, 25 °C.
[2] Applies for 10 to 500 % target reflectivity, high background illumination, -10 °C to +50 °C.
[3] Tolerances apply from 0.05 m to 10 m with a confidence level of 95 %. The maximum tolerance may deteriorate to 0.1 mm/m between 10 m to 30 m and to 0.15 mm/m for distances above 30 m.
[4] Applies for 100 % target reflectivity, background illumination between 10'000 lux and 30'000 lux.
[5] After user calibration. Additional angle related deviation of ±0.01° per degree up to ±45° in each quadrant. Applies at room temperature. For the whole operating temperature range the maximum deviation increases by ±0.1°.
Click here for complete specifications on the Fluke 419D
