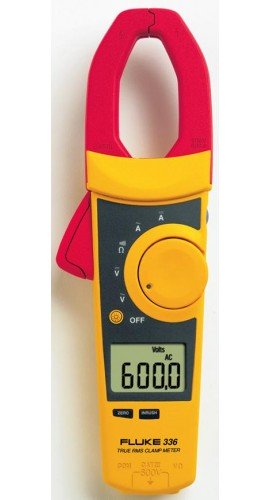

Fluke 336 TRMS 600 Amp AC/DC Current Clamp Meter

Model: 336A

Fluke 336 TRMS AC/DC Clamp Meter with backlight (TRMS, 600AAC/DC, 600VAC/DC, Continuity)

Sorry! This product has been discontinued.


The Fluke 336 TRMS 600 Amp AC/DC Current Clamp Meter has been discontinued, it has been replaced by the Fluke 375 True-RMS 600A AC/DC Clamp Meter

Innovating the Best in Test for you

Customer Reviews


Clamp meters that fit the way you work
  • Three year warranty
  • Small body and jaws fit perfectly in your hand and into tight places
  • Handy 'Display Hold' button keeps measurements on the display
  • Meter controls are positioned so current measurements can be done with one hand (index finger on clamp opening lever and thumb on rotary switch)
  • Large, backlit display is easy-to-see in less than ideal conditions
  • In-rush current function  for measuring starting current for motors, lighting, etc.
  • Auto shut-off maximizes battery life so the meter works when you need it
  • Improved low current measurement accuracy from new microprocessor technology
Safety conformance

IEC 1010-2-032, 600V CAT III
The Fluke 336 TRMS AC/DC Clamp Meter provides you the ability to work quickly and easily in narrow and dark locations, and makes it possible to keep track of your measurements for further analysis.
The Fluke 336 Clamp Meter offers a design that is compact and lightweight, and functionality that allows you to take measurements that are more precise and features a large display that is backlit so readings can be taken in virtually any lighting situation. Auto-shut-off maximizes battery life so the meter works when you need it.
This Fluke 336 TRMS AC/DC Clamp Meter measures AC/DC Current Range up to 600A and AC/DC Volt Range up to 600V. It also measures continuity.
What's included:
  • Coated instruction card
  • Safety information sheet
  • Soft carrying case
  • TL75 test leads
  • Two AA Alkaline batteries
The following is a list of other models and their features, just click on the one that you want:
Fluke 333 - Rugged reliability at a basic price, measures ac amps (400A), ac/dc volts (600V) and ohms
Fluke 334 - Large display with backlight, measures ac amps (600A), ac/dc volts (600V), ohms and motor start-up current
Fluke 335 - A True-rms clamp meter, large backlit display, measures ac amps (600A), ac/dc volts (600V), ohms and motor start-up current
Fluke 337 - The top-of the-line True-rms clamp meter, large jaw measures ac/dc current and voltage, ohm, motor start-up current (in-rush), frequency, MIN/MAX capability and a large backlit display
Specifications
Voltage DC
Range 0 - 600.0 V
Accuracy 1% ± 5 counts
Voltage AC
Range 0 - 600.0 V
Accuracy 1% ± 5 counts (20-100 Hz), 6% ± 5 counts (100-400 Hz)
AC Response True-rms
Current DC
Range 0 - 600.0 A
Accuracy 2% ± 3 counts
Current AC
Range 0 - 600.0 A
Accuracy 2% ± 5 counts (10-100 Hz), 6% ± 5 counts (100 - 400 Hz)
Crest Factor(50/60 Hz) 3 @ 500A, 2.5 @ 600A, add 2% for CF>2
AC Response True-rms
Resistance
Range 0 - 600.0 Ω, 6001 - 6000 Ω
Accuracy 1.5% ± 5 counts
Inrush Current
Integration Time 100 ms
Continuity

<= 30 Ω

Environmental Specifications
Operating Temperature

-10 °C to +50 °C, -14 °F to 122 °F
Storage Temperature

-40C to +60C, -22 °F to 140 °F
Operating Altitude

2,500 meters max, 6,500 ft max
Temperature De-rating

Add 0.1 x specified accuracy for each C above 28C or below 18C (above 82.4°F or below 64.4°F)

Safety Specifications
Safety Rating

IEC 1010-2-032, 600V CAT III

Mechanical & General Specifications
Size

250mm x 80mm x 40mm (9.875" x 3.125" x 1.625")
Weight

310 g (11oz)
Warranty

Three years
Battery Life

Alkaline approximately 150 hours continuous

Automatic low battery indicator
Backlight

Yes
Display Hold

Yes

  • Coated instruction card
  • Safety information sheet
  • Soft carrying case
  • Fluke TL75 test leads
  • Two AA Alkaline batteries
