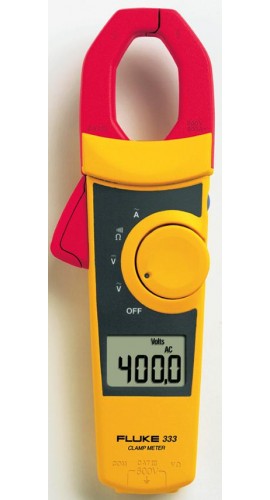

Fluke 333 Digital 400 Amp AC Clamp Meter


Fluke 333 Digital 400 Amp AC Clamp Meter

Model: 333A

Fluke 333 Digital AC Clamp Meter - 400 Amp (AVG, 400AAC, 600VAC/DC, Continuity)

Sorry! This product has been discontinued.


The Fluke 333 Digital 400 Amp AC Clamp Meter has been discontinued, it has been replaced by the Fluke 373 True-RMS 600 A AC Clamp Meter

Order with confidence: 30 Day Returns on web orders and Free Shipping on orders over $299
Spend over $250 on Fluke Tools and receive free gear Fluke Connect is now available

The Fluke 333 Digital AC Clamp Meter measures up to 400 A AC Current and up to 600 V AC/DC Voltage averaging. An ergonomic concept, shaped to fit your hand and to access tight spots easily. Also features Auto-shut-off maximizes battery life so the meter works when you need it.

What's included:
  • Coated instruction card
  • Safety information sheet
  • Soft carrying case
  • TL75 test leads
  • Two AA Alkaline batteries

The following is a list of other models and their features, just click on the one that you want:

Fluke 334 - Large display with backlight, measures ac amps (600A), ac/dc volts (600V), ohms and motor start-up current
Fluke 335 - A True-rms clamp meter, large backlit display, measures ac amps (600A), ac/dc volts (600V), ohms and motor start-up current
Fluke 336 - A True-rms clamp meter that measures ac/dc current (600A) and voltage (600V), ohms, motor start-up current with large display and backlight
Fluke 337 - The top-of the-line True-rms clamp meter, large jaw measures ac/dc current and voltage, ohm, motor start-up current (in-rush), frequency, MIN/MAX capability and a large backlit display
Clamp meters that fit the way you work

  • Three year warranty
  • Small body and jaws fit perfectly in your hand and into tight places
  • Handy 'Display Hold' button keeps measurements on the display
  • Meter controls are positioned so current measurements can be done with one hand (index finger on clamp opening lever and thumb on rotary switch)
  • Auto shut-off maximizes battery life so the meter works when you need it
  • Improved low current measurement accuracy from new microprocessor technology

Safety conformance

IEC 1010-2-032, 600V CAT III
Specifications
Voltage DC
Range: 0 - 600.0 V
Accuracy: 1% ± 5 counts
Voltage AC
Range: 0 - 600.0 V
Accuracy: 1% ± 5 counts (50/60 Hz)
AC Response: Averaging
Current AC
Range: 0 - 400.0 A
Accuracy: 2% ± 5 counts (50/60 Hz)
AC Response: Averaging
Resistance
Range: 0 - 600.0 Ω
Accuracy: 1.5% ± 5 counts
Continuity

<= 30 Ω

Environmental Specifications
Operating Temperature

-10 °C to +50 °C, -14 °F to 122 °F
Storage Temperature

-40C to +60C, -22 °F to 140 °F
Operating Altitude

2,500 meters max, 6,500 ft max
Temperature De-rating

Add 0.1 x specified accuracy for each C above 28C or below 18C (above 82.4°F or below 64.4°F)

Safety Specifications
Safety Rating

IEC 1010-2-032, 600V CAT III

Mechanical & General Specifications
Size
240mm x 80mm x 40mm (9.375" x 3.125" x 1.625")
Weight

310 g (11oz)
Warranty

Three years
Battery Life

Alkaline approximately 150 hours continuous

Automatic low battery indicator
Display Hold

Yes

  • Coated instruction card
  • Safety information sheet
  • Soft carrying case
  • Fluke TL75 test leads
  • Two AA Alkaline batteries
