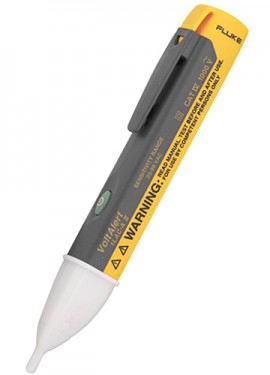

Fluke 1LAC-A-II Low Voltage Detector

Model: 1LAC-A-II

20-90V AC with Round-tip.

$29.99 USD

Availability: 8 in Stock


  • Voltbeat™ technology and continuous self-test - so you always know it's working
  • Upon detection, tip glows and beeper sounds
  • CAT IV 1000 V for added protection
  • Expanded range: 90 V to 1000 V AC or 200 V to 1000 V AC depending on model
  • 20 V to 90 V AC control circuit model also available
  • Two-year warranty

The pocket-sized voltage detector

The Fluke 1LAC-A-II is a next generation VoltAlert™ AC non-contact voltage testers from Fluke are easy to use - just touch the tip to a terminal strip, outlet, or supply cord. When the tip glows red and the unit beeps, you know there's voltage present. Electricians, maintenance, service, safety personnel, and homeowners can quickly test for energized circuits in the workplace or at home.
Operating principle
Senses the stead state electrostatic field produced by ac voltage through insulation without requiring contact to the bare conductor. A red glow at the tip and a beeping noise (if not switched off) indicates the presence of voltage
Voltage sensing ranges
Nominally, 90 V AC to 1000 V AC or 200 V AC to 1000 V AC depending on model, 45 Hz to 405 Hz; also a 20 V to 90 V control circuit model
Detector tip style Blade or round, depending on model
Light source One high intensity red LED
Agency Approvals c CSA us, CE, C-Tick
Safety Rating 1000 V, CAT IV
IP Rating IP 40
Operating Temperature  -10 °C to 50 °C
Operating humidity ranges0% to 95% (0 °C to 30 °C)
0% to 75% (30 °C to 40 °C)
0% to 45% (40 °C to 55 °C)
Operating Altitude 3000 meters
Batteries  2 AAA alkaline batteries included
Click here for complete specifications on the Fluke 1LAC-A-II
