Fluke 179/61 Industrial Multimeter and Infrared Thermometer Combo Kit

Model: 179/61-KIT

Sorry! This product has been discontinued.


The Fluke 179/61 Industrial Multimeter and Infrared Thermometer Combo Kit has been discontinued, and does not currently have a replacement. If you would like a recommendation please call us at 1.877.766.5412





Created for industrial, HVAC, and facility maintenance.

The Fluke 179 True-rms digital multimeter has the features needed to find most electrical and HVAC problems. Simple to use with significant improvements like True-rms, frequency, capacitance, temperature and min-max record. The Fluke 179 has more measurement functions, conformance to the latest safety standards, and a much larger display that's easier to view.

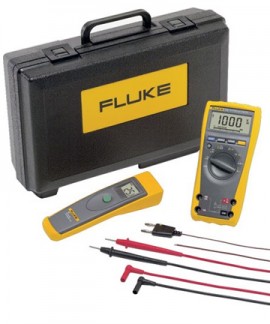

The Fluke 179/61 Combo Kit includes the Fluke 179 True-rms multimeter with a built-in thermometer to troubleshoot electrical and electromechanical problems plus a laser guided, non-contact infrared thermometer for measuring rotating or energized equipment, packed in a durable carrying case.

Check the features and specifications using the tabs above.

Electrical safety
All inputs are protected to measurement CAT III 1000 V and CAT IV 600V. This meter can withstand transient impulses in excess of 8000 V to help protect you from arc blasts resulting from surges and spikes.
Available as kits such as:
Fluke 179/EDA2 Electronics Multimeter and Deluxe Accessory Combo Kit or
Fluke 179/1AC-II Electrician's Multimeter and Voltage Tester Combo Kit or
Fluke 179/TPAK Digital Multimeter & ToolPak™ Combo Kit
Also available with no temperature as Fluke 177 or as Fluke 175

Combo Kit includes:
  • Wide 1000 V measurement range
  • True-rms for precise measurement of non linear signals
  • Capacitance, resistance, continuity and frequency
  • Built-in thermometer
  • Large, easy-to-read display with analog bargraph and backlight for work in dimly lit areas
  • Min/Max/Avg to record signal fluctuations
  • 0.09% basic accuracy
  • 6000 count resolution
  • Manual and automatic ranging
  • Display Hold and Auto Hold
  • Smoothing mode allows filtering of rapidly changing inputs
  • Easy battery exchange without opening the case
  • Closed case calibration through front panel
  • Measures twice as fast as other multimeters
  • Free your hands with the optional Fluke TPAK magnetic hanger

Safety conformance
All inputs are protected to IEN61010-1 CAT IV 600V/CAT III 1000V. UL, CSA, TV listed and VDE Pending
Specifications
Voltage DC
Accuracy*± (0.09%+2)
Max. Resolution0.1 mV
Maximum1000 V
Voltage AC
Accuracy*± (1.0%+3)
Max. Resolution0.1 mV
Maximum1000 V
Current DC
Accuracy*± (1.0%+3)
Max. Resolution0.01 mA
Maximum10 A
Current AC
Accuracy*± (1.5%+3)
Max. Resolution0.01 mA
Maximum10 A
Resistance
Accuracy*± (0.9%+1)
Max. Resolution0.1 Ω
Maximum50 MΩ
Capacitance
Accuracy*± (1.2%+2)
Max. Resolution1 nF
Maximum10,000 µF
Frequency
Accuracy*± (0.1%+1)
Max. Resolution0.01 Hz
Maximum100 kHz
Temperature
Accuracy*± (1.0%+10)
Max. Resolution0.1°C
Range-40°C/400°C
Note
*Accuracies are best accuracies for each function

Environmental Specifications
Operating temperature

-10°C to +50°C
Storage temperature

-30°C to +60°C
Humidity (Without Condensation)

0% - 90% (0°C - 35°C)

0% - 70% (35°C -50°C)

Safety Specifications
Overvoltage category

EN 61010-1 to 1000 V CAT III.

EN 61010-1 to 600 V CAT IV.
Agency Approvals

UL, CSA, TV listed and VDE Pending

Mechanical & General Specifications
Size

43 x 90 x 185 mm
Weight

420 g
Warranty

Lifetime
Battery life
Alkaline~200 hours typical, without backlight

Click here for complete specifications on the Fluke 179/61-KIT
