Fluke Ti9 Thermal Imager

Model: TI9/9HZ | Order No: TI9-9HZ

Entry-level thermal imager for general purpose applications. Features a 160x120 infrared detector with 0.20°C thermal sensitivity and a temperature measurement range of -20 to 250°C (-4 to 482°F).

Sorry! This product has been discontinued.


The Fluke Ti9 Thermal Imager has been discontinued, it has been replaced by the Fluke TIS45-30Hz Industrial Commercial Thermal Imager with Manual Focus

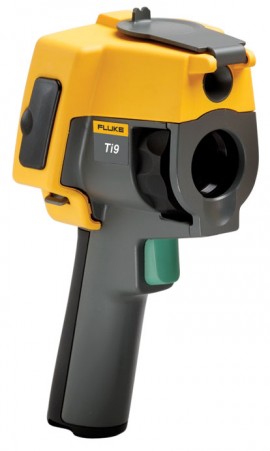

Fluke Ti9

Fluke is excited to announce the Fluke Ti9, their latest thermal imager designed for electricians and technicians with affordability in mind.

The Fluke Ti9 Thermal Imager is an entry-level thermal imager that offers a superior image quality, unmatched ruggedness, and unique ease-of-use at a breakthrough price point for the facilities maintenance professional, commercial or residential electrician, and HVAC/R professional.

Find the hot spots instantly

  • Superior resolution to view more essential details
  • Small details are visible in a perfectly focused image
  • Large widescreen full VGA color LCD display
  • Temperature range supports basic electrical and mechanical applications

Easy to use

  • Intuitive, three-button menu, simply navigate with the push of a thumb
  • Adjustable focus
  • Just point, shoot and the image is captured. It is that easy.

Rugged

  • Withstands dust and water, IP54 rating
  • Withstands a drop test of 2 meters
  • Protective lens cover

Applications

Electrical distribution and service: Switch gear, Panels, Controls, Fuses, Transformers, Receptacles, Lighting, Conductors, Bus bars, Motor control centers

Mechanical: Motors, Bearings, Pumps, Gear boxes, Drive belts

Temperature
Temperature Range-20 °C to +250 °C (-4 °F to +482 °F)
Accuracy± 5 °C or 5 % (at 25 °C nominal, whichever is greater)
Emissivity correctionIn software
Reflected background temperature compensationIn software
Image Performance
Image capture frequency9 Hz refresh rate
Detector type160 X 120 Focal Plane Array, uncooled microbolometer
Thermal sensitivity (NETD)< 0.20 °C at 30 °C target temp. (200 mK)
Infrared field of view23 ° x 17 °
Spatial resolution (IFOV)2.5 mRad
Minimum infrared focus distance15 cm (approx. 6 in)
Focus mechanismManual, one-handed Smart Focus capability
Image Presentation
PalettesIronbow, Blue-Red, High Contrast, Grayscale
Level and spanSmooth auto-scaling and manual scaling of level and span
Minimum span (in manual mode)5 °C (9 °F)
Minimum span (in auto mode)10 °C (18 °F)
Image capture and data storage
Image capture, review, save mechanismOne-handed image capture, review, and save capability
Storage mediumSD Memory Card (2 GB memory card will store at least 1200 fully radiometric (.is2) IR and linked visual images each with 60 seconds voice annotations (when available), or 3000 basic bitmap (.bmp) images transferrable to PC via included multi-format USB card reader
File formatsNon-radiometric (.bmp) or fully-radiometric (.is2)
No analysis software required for non-radiometic bitmap (.bmp) files
Export file formats w/SmartView® softwareBMP, DIB, GIF, JPE, JFIF, JPEG, JPG, PNG, TIF, and TIFF
Memory reviewSequential image navigation and review
General Specifications
Operating temperature-10 °C to +50 °C (14 °F to 122 °F)
Storage temperature-20 °C to +50 °C (-4 °F to 122 °F) without batteries
Relative humidity10 % to 95 % non-condensing
Display9.1 cm (3.7 in) diagonal landscape color VGA (640 x 480) LCD with backlight and clear protective cover
Controls and adjustmentsUser selectable temperature scale (°C/°F)Language selectionTime/Date setUser selectable backlight: "Full Bright" or "Auto"
SoftwareSmartView® full analysis and reporting software included
BatteriesInternal rechargeable battery pack (included)
Battery lifeThree to four hours continuous use (assumes 50 % brightness of LCD)
Battery charge time2.5 hours to full charge
AC battery chargingAC adapter/charger (110 V ac to 220 V ac, 50/60 Hz) (included), charges battery while imager is operating or turned off, ac mains adapters included.
AC operation AC operation with included power supply (110 V ac to 220 V ac, 50/60 Hz). AC mains adapters included.
Power savingSleep mode activated after ?ve minutes of inactivity, automatic power off after 30 minutes of inactivity
Safety standardsCSA (US and CAN): C22.2 No. 61010-1-04, UL: UL STD 61010-1 (2nd Edition), ISA: 82.02.01
Electromagnetic compatibilityMeets all applicable requirements in EN61326-1:2006
C TickIEC/EN 61326-1
US FCCCFR 47, Part 15 Class B
Vibration0.03 g2/Hz (3.8 grms), IEC 68-2-6
Shock25 g, IEC 68-2-29
Drop2 meter (6.5 feet)
Size (H x W x L)26.7 cm x 12.7 cm x 15.2 cm (10.5 in x 5.0 in x 6.0 in)
Weight (battery included)1.2 kg (2.6 lb)
Enclosure ratingIP54 (protected against dust, limited ingress; protection against water spray from all directions)
WarrantyTwo-years (standard)
Recommended calibration cycleTwo-years (assumes normal operation and normal wear)
Supported LanguagesCzech, English, Finnish, French, German, Italian, Japanese, Korean, Polish, Portuguese, Russian, Simplified Chinese, Spanish, Swedish, Traditional Chinese, and Turkish
Click here for complete specifications on the Fluke TI9/9HZ
  • Fluke Ti9 (9Hz) Thermal Imager
  • SmartView® analysis and reporting software
  • 2 GB SD card
  • SD card reader
  • hard and soft carrying case
  • hand strap
  • rechargeable battery
  • AC charger/power supply
  • training DVD
